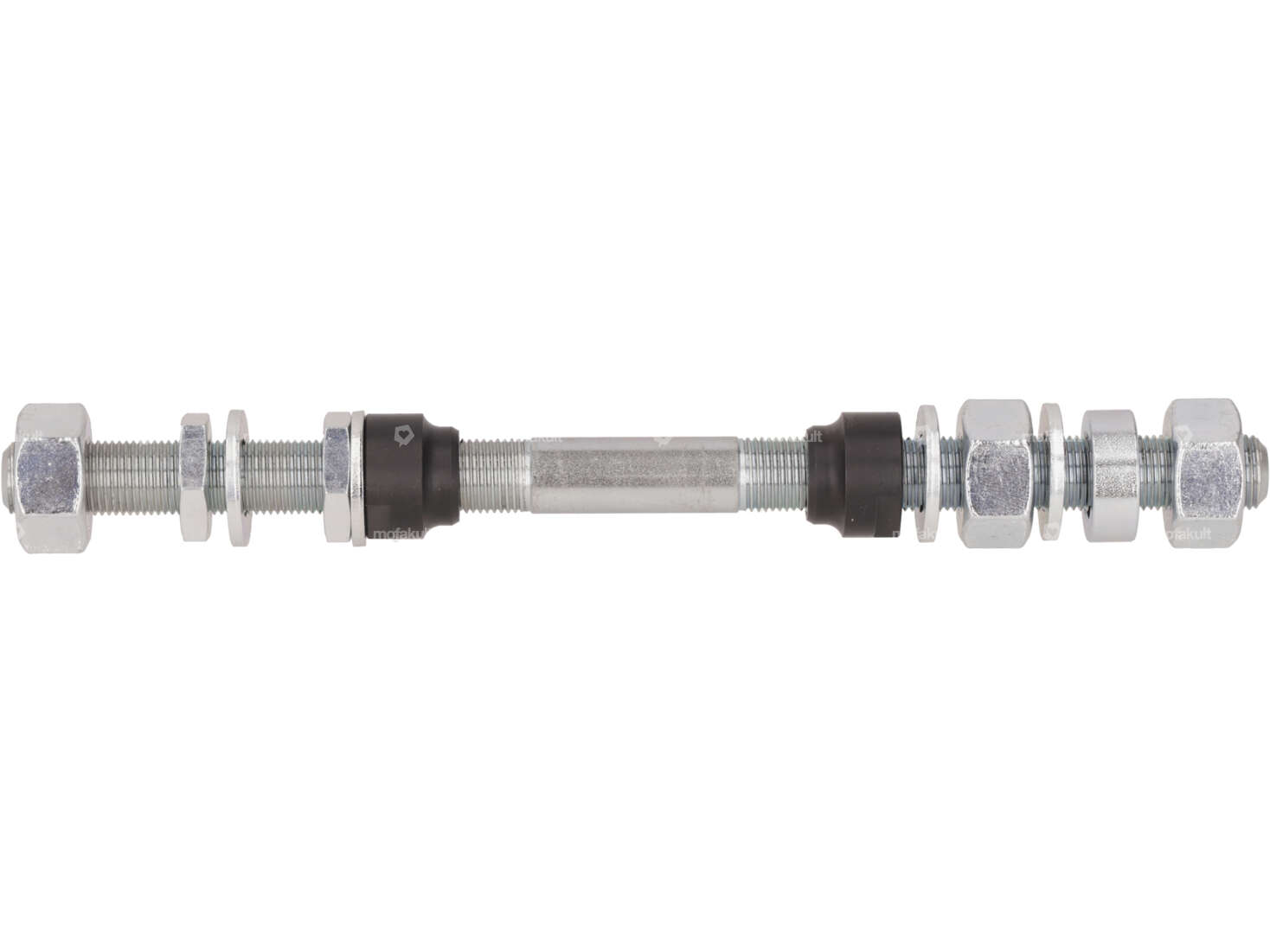

Socket axle M11x180 made of heavy-duty, galvanized special steel with cones and nuts for various rear wheels with cast spokes on your Puch moped / moped.
The complete threaded shaft set is also equipped with the following parts:
- 3 pieces of M11 x 1 nuts (SW19 / 10 mm)
- 4 pieces of washers (11.2/20/2 mm)
- 2 pieces of swiing bearing cone M11 (D18 x H14.15 mm / SW15)
- 2 pieces of M11 x 1 nuts (SW17 / 4 mm)
- 1 piece of spacer (12.3/19x6 mm)
&p;reworked version of the previously offered wheel axle. Both the axle and the cones are made of high-quality material that can withstand high loads.
The ends of the wheel axle are chamfered and the thread is perfectly cut. This makes it easy to fit the cones and wheel nuts.
Other axle parts can be found in the accessories section.
Nostalgic product for the highest demands from the quality brand swiing®.
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Surface | galvanized (blue) |
| Total length | 180 mm |
| Thread type | MF11x1 (fine pitch thread) |
| Ø shaft | 10.95 mm |
| Thread length | 75 mm |
| Shank length | 30 mm |
| Width across flats SW | 19 mm |
| Puch |
