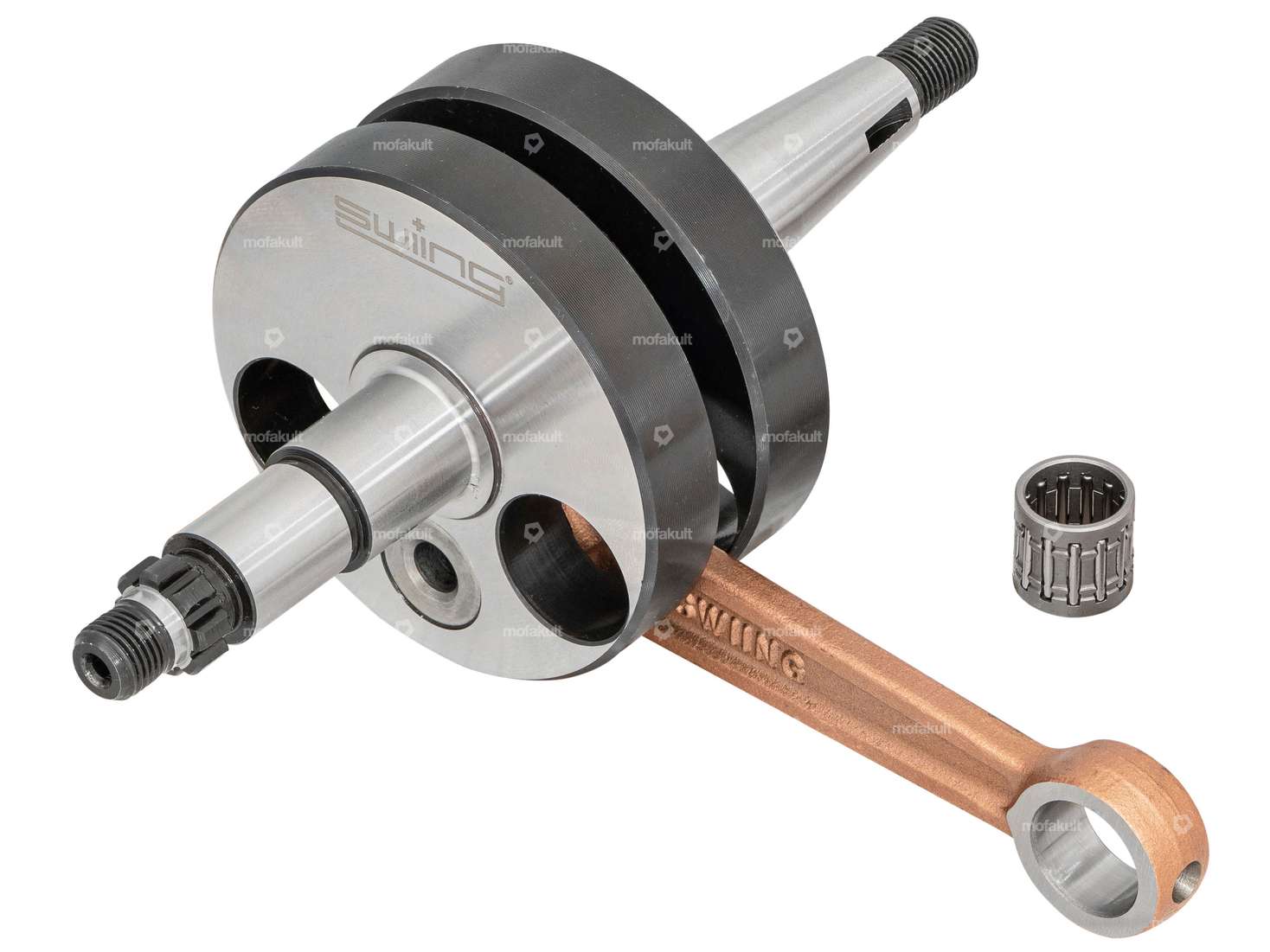

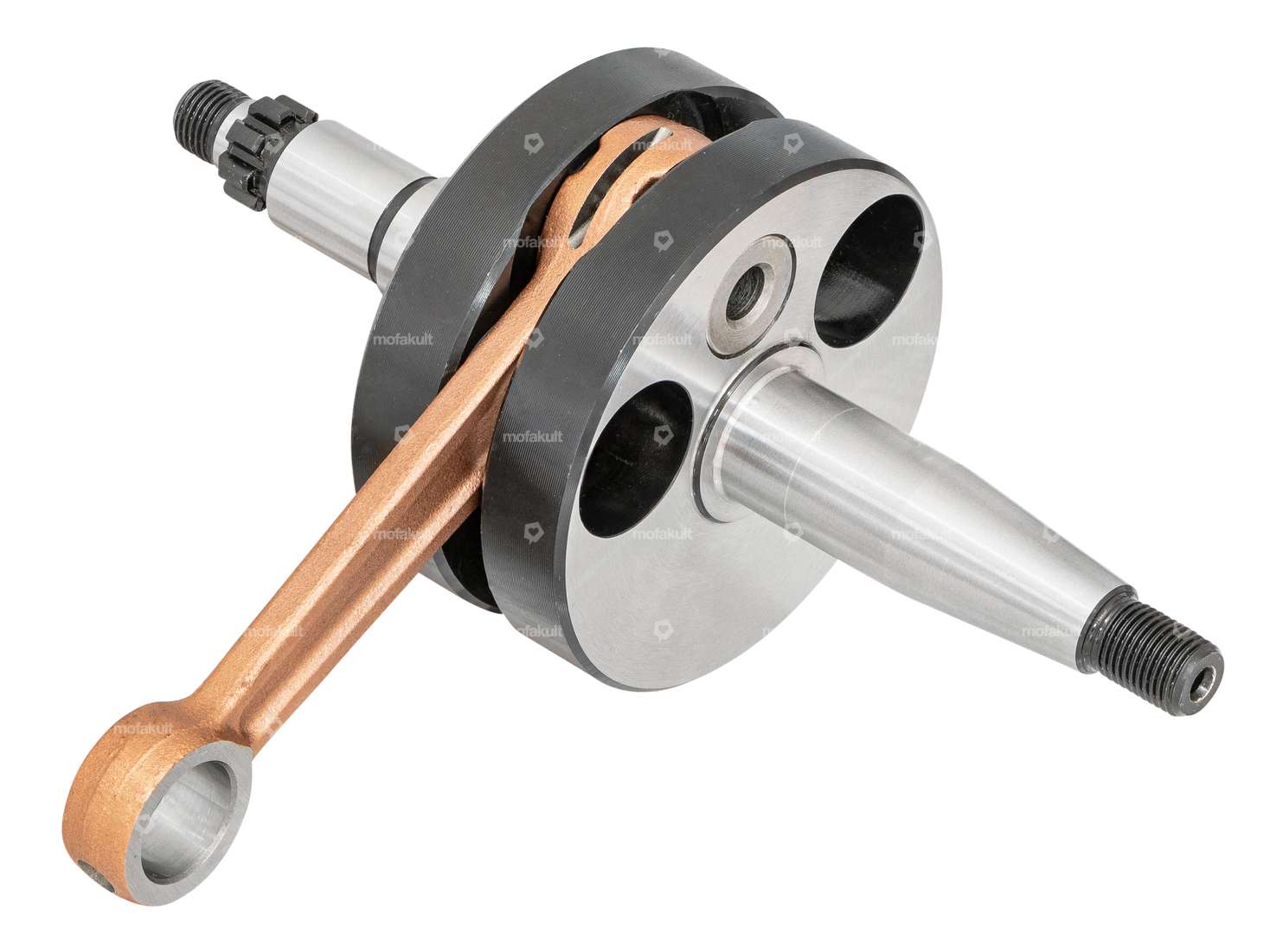

Original crankshaft suitable for manual Puch X30 Sport NS & NL and Puch Maxi S2 mopeds / mopeds with windage-cooled Z50 engines (not suitable for windage-cooled Puch X30 Velux engines).
High-quality and precisely fitting crankshaft, which has proven itself in various load tests.
The standard shaft was designed for use in original engines.
Dimensions of the crankshaft:
- Total length of the clutch-side crankpin: 57 mm
- Total length of the crank pin on the ignition side: 66 mm
- Length 1st shoulder (clutch side): 20 mm
- Length 2nd shoulder (clutch side) 19 mm
- Ø 1st heel (clutch side): 17 mm
- Ø 2nd paragraph (coupling side): 15 mm
- Thread (on the coupling side): MF10x1 mm
- Length of shoulder (on the coupling side): 26.3 mm
- Ø heel (on the end face): 17 mm
- Thread (on the end face): MF10x1 mm
- Ø crank webs: 69.9 mm
- Width of crank webs: 34 mm
- Ø connecting rod eye at top: 15 mm
- Ø connecting rod pin at the bottom: 16 mm
- Connecting rod length (center-to-center): 90 mm
- Stroke: 43 mm
- Weight (incl. connecting rod): 892 grams
- Dimension needle bearing: Ø 12 / 15 x 14.2 mm (axe 12)
Revised version of the previously offered crankshaft with improved balance ratio and therefore smoother running characteristics.
The needle bearing is included in the scope of delivery.
You can find the matching bearings and oil seals in the accessories section.
Nostalgic product for the highest demands of the quality brand swiing®.
Original Puch spare part number: 349.1.10.215.0
Details
| Manufacturer | swiing® revival parts |
| Weight | 892 g |
| Material | Steel |
| Area of application | Standard |
| Cheek type | standard |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Connecting rod length center-center | 90 mm |
| Total length of crankpin on clutch side | 57 mm |
| Total length crankpin ignition side | 66 mm |
| Ø crank webs | 69.9 mm |
| Thread length | 7 mm, 13 mm |
| Ø Connecting rod eye | 15 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Dimension needle bearing | 12 / 15 x 14.2 mm (axe 12) |
| Wide crank webs | 34 mm |
| Length 1st paragraph | 20 mm |
| Length 2nd paragraph | 19 mm |
| Ø 1st step (on the coupling side) | 17 mm |
| Ø 2nd shoulder (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 26.3 mm |
| Number of gears | 2 pcs |
Suitable for the following models
| Puch | Z50 (X30 Sport) |
Accessories & related products
Motorex engine oil (gear oil) manual 450 ml
Temperature resistance (min.): -30 - 220 °C · Manufacturer: Motorex · Viscosity (SAE): 80W · Oil type: GL4 · Contents [ml]: 450 ml · Area of application: Gearbox lubrication with clutch · Gearbox type: Foot control · Gearbox type: Manual gearshift
CHF 8.90
CHF 9.90
CHF 19.78/l
swiing® revival shim set crankshaft L17 | Puch Z50
Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm · Nominal diameter inside: 17 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Ø inside: 17.1 mm · Ø outside: 23.8 mm
CHF 8.90

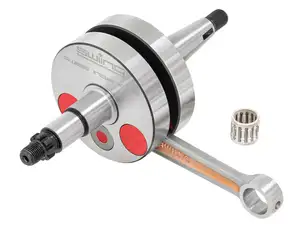

swiing® ingenious crankshaft High End | Puch X30 NS / NL (Z50)
