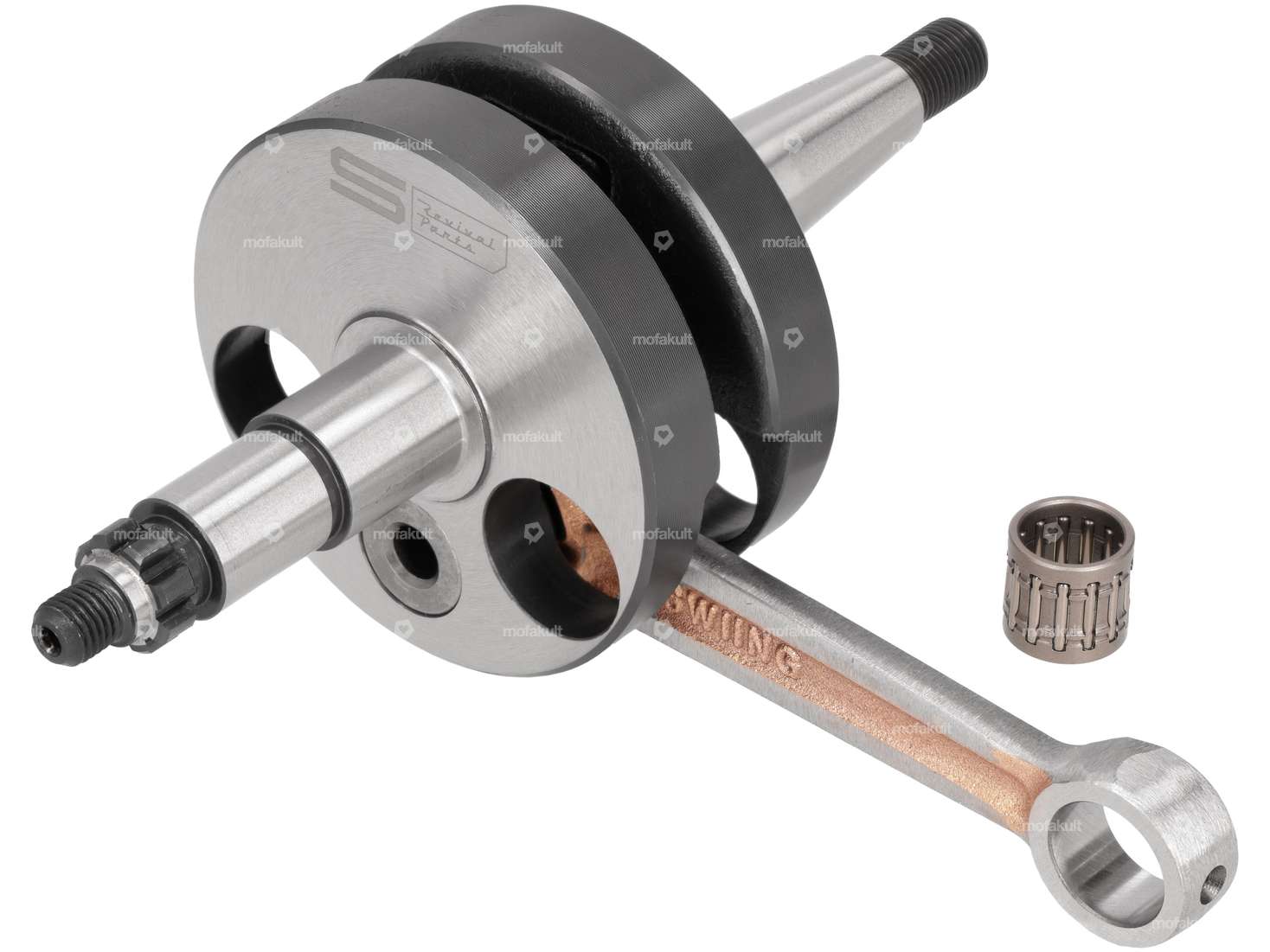

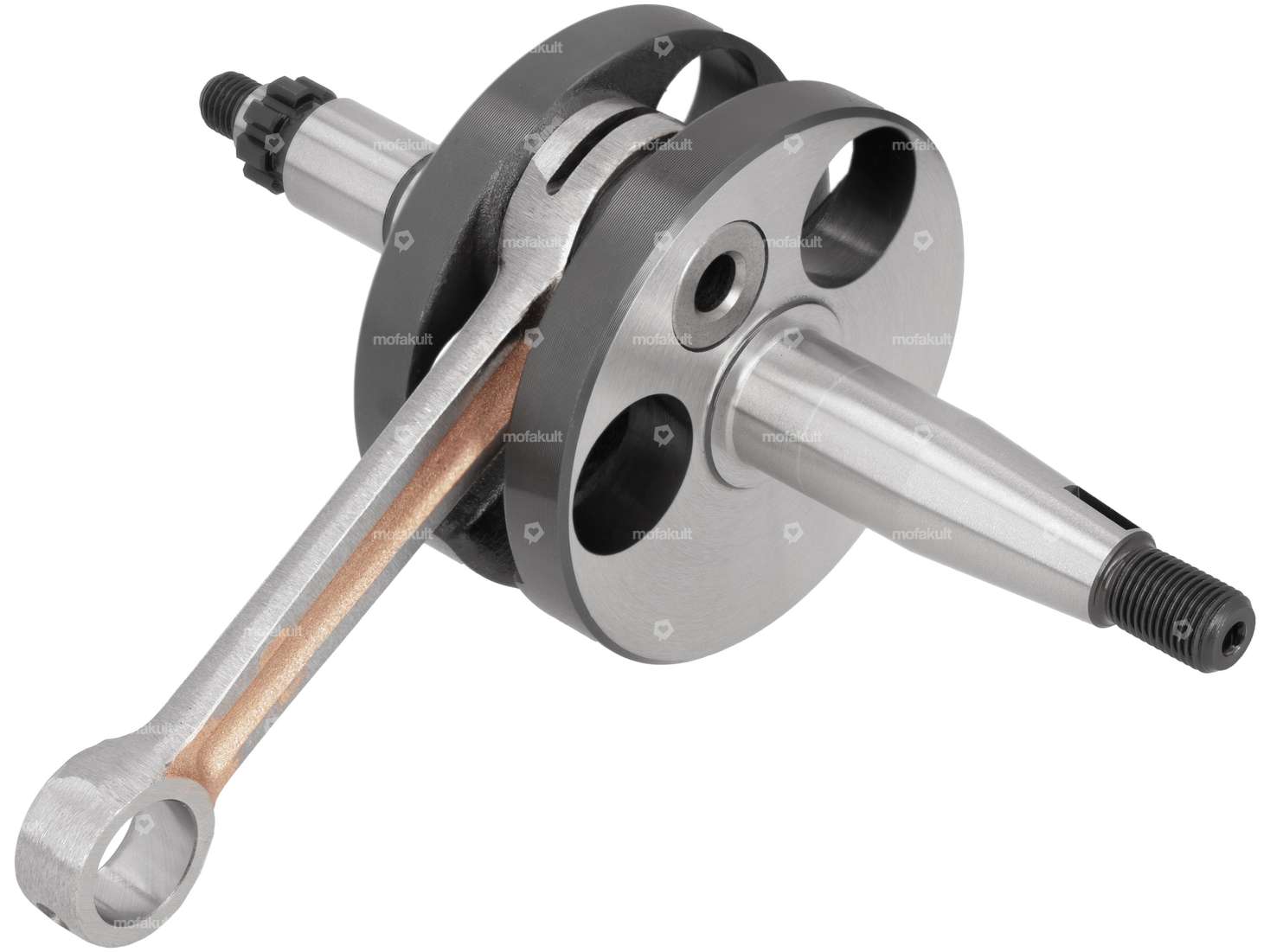

Original crankshaft suitable for your Puch X30 Velux moped / moped with manual and blown Z50 engine.
| Dimension needle bearing | 12 / 15 x 14.2 mm (axe 12) |
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 43 mm |
| Connecting rod length center-center | 90 mm |
| Area of application | Standard |
| Total length of crankpin on clutch side | 57 mm |
| Number of gears | 2 pcs |
| Total length crankpin ignition side | 66 mm |
| Thread type | MF10x1 (fine pitch thread), MF8x1 (fine pitch thread) |
| Ø crank webs | 69.9 mm |
| Ø piston pin (B) | 12 mm |
| Ø Connecting rod eye | 15 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Wide crank webs | 34 mm |
| Length 1st paragraph | 20 mm |
| Length 2nd paragraph | 19 mm |
| Ø 1st step (on the coupling side) | 17 mm |
| Ø 2nd shoulder (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 26.3 mm |
| Weight | 842 g |
| Puch | Z50 (X30 Velux) 2-speed MS, MV, MV50 |
