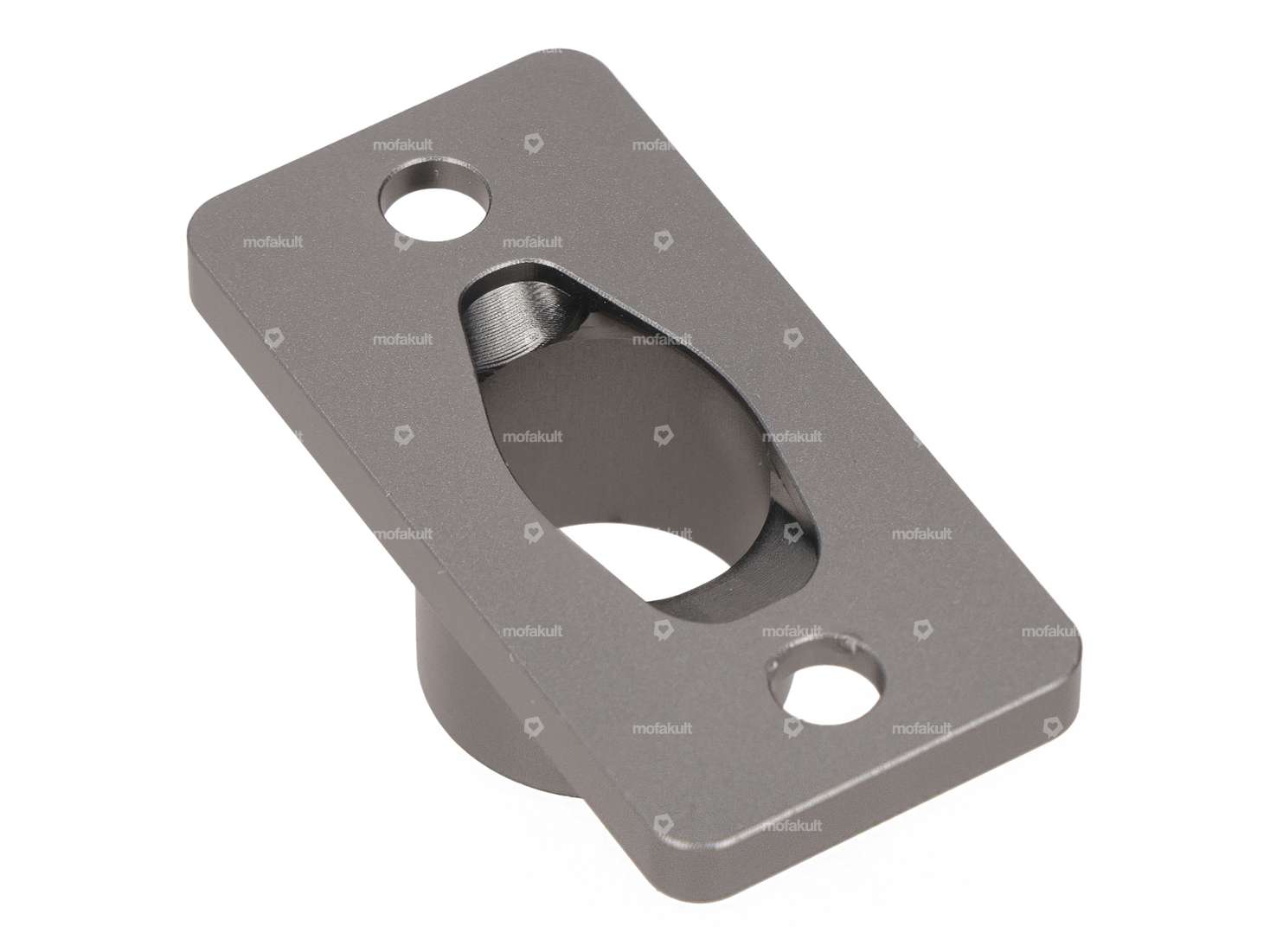

Tuning intake manifold for installing a Pinasco 16 / 16 SHA carburetor on your Piaggio Ciao, Si, or Bravo moped equipped with a Polini “Speed Engine” racing housing.
This intake manifold allows for a clean installation of the Pinasco 16 mm racing carburetor onto the Polini Speed Engine racing body. This combination enables a performance-oriented setup without requiring any modifications to the frame. As with Dell'Orto SHA carburetors, air filters from Malossi, Polini, and Pinasco can be installed without any modifications.

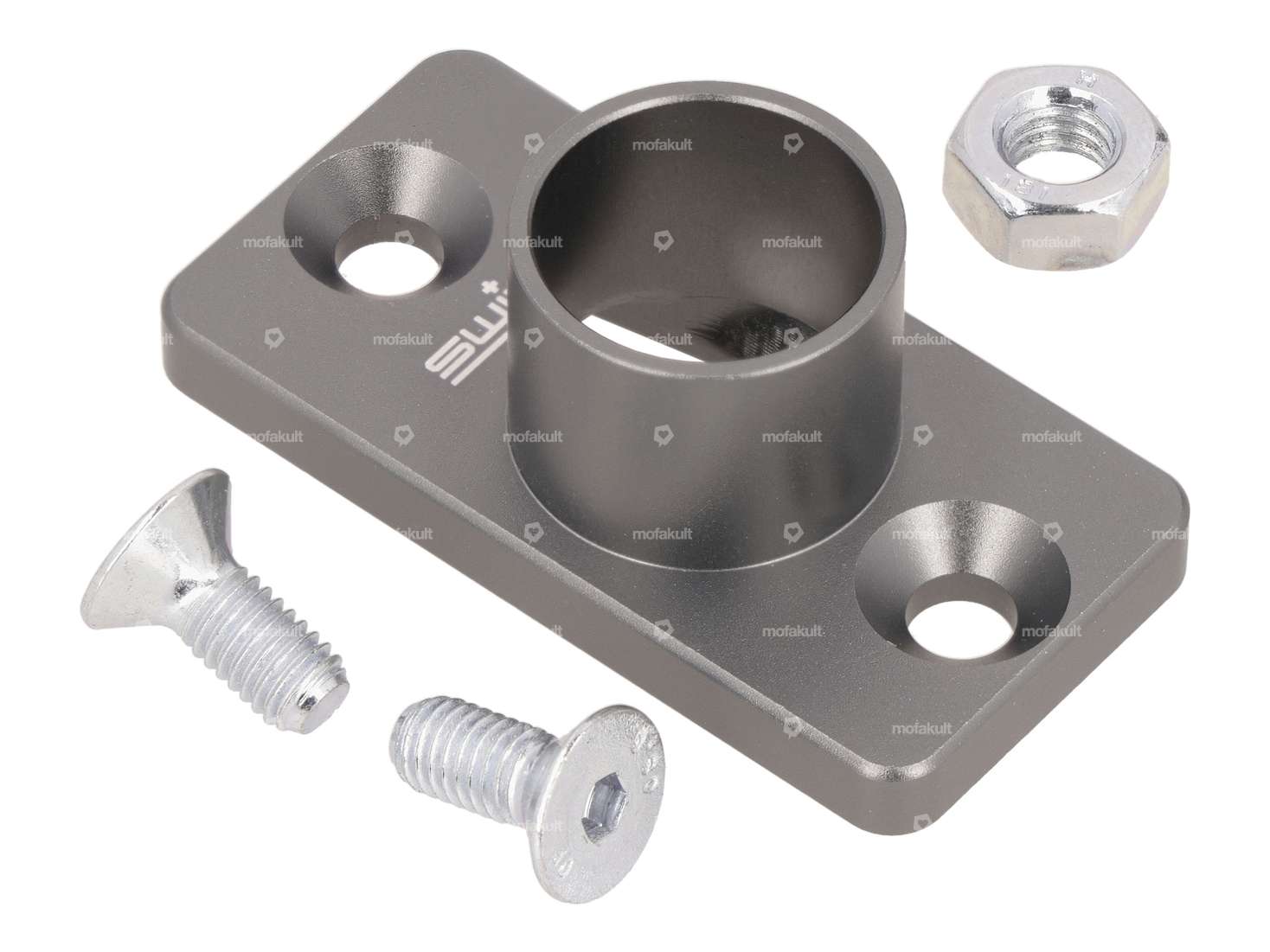

Note: Due to limited space, the hex nut on the Pinasco 16 mm tuning carburetor is too tall and should be replaced with the included standard M6 nut.
You can find compatible Pinasco racing carburetors in the accessories section.
A sophisticated product from the premium brand swiing® that meets the highest standards.
| Manufacturer | swiing® ingenious parts |
| Camouflaged | No |
| Material | Aluminum |
| Surface | anodized |
| Color | graphite colors |
| Ø inside | 16.5 mm |
| Ø External connection | 19 mm |
| Mounting type | Screws |
| Hole spacing inlet | 36 mm |
| Number of fixing points | 2 pcs |
| Total height | 18.8 mm |
| Total length | 48 mm |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
