For: Puch · Sachs · Zündapp Belmondo · Kreidler · Zündapp

32724

swiing® ingenious EVO stator

rating iconrating iconrating iconrating iconrating icon
No reviews
CHF 109.90

Incl. 8.1% VAT.

Description

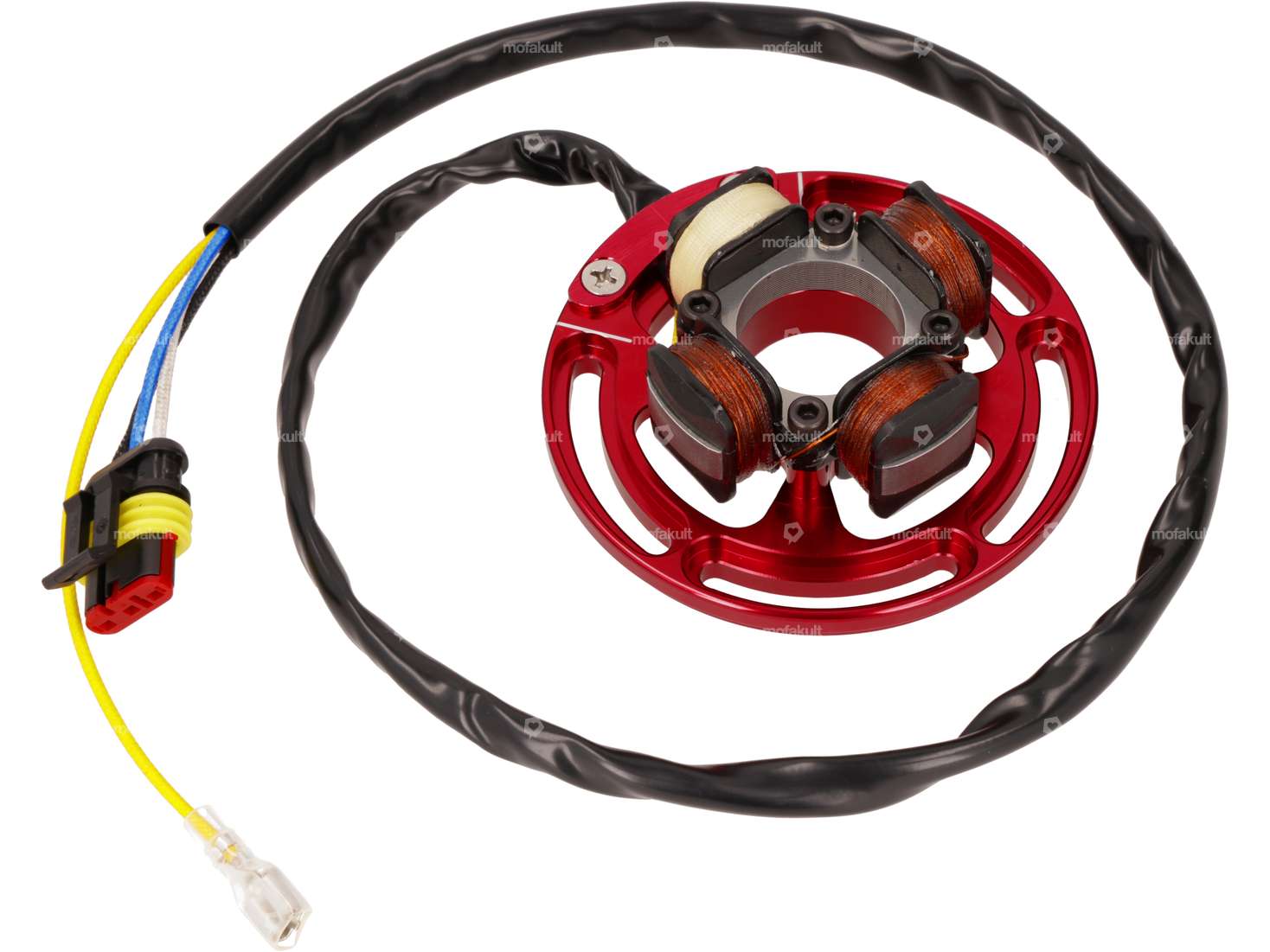

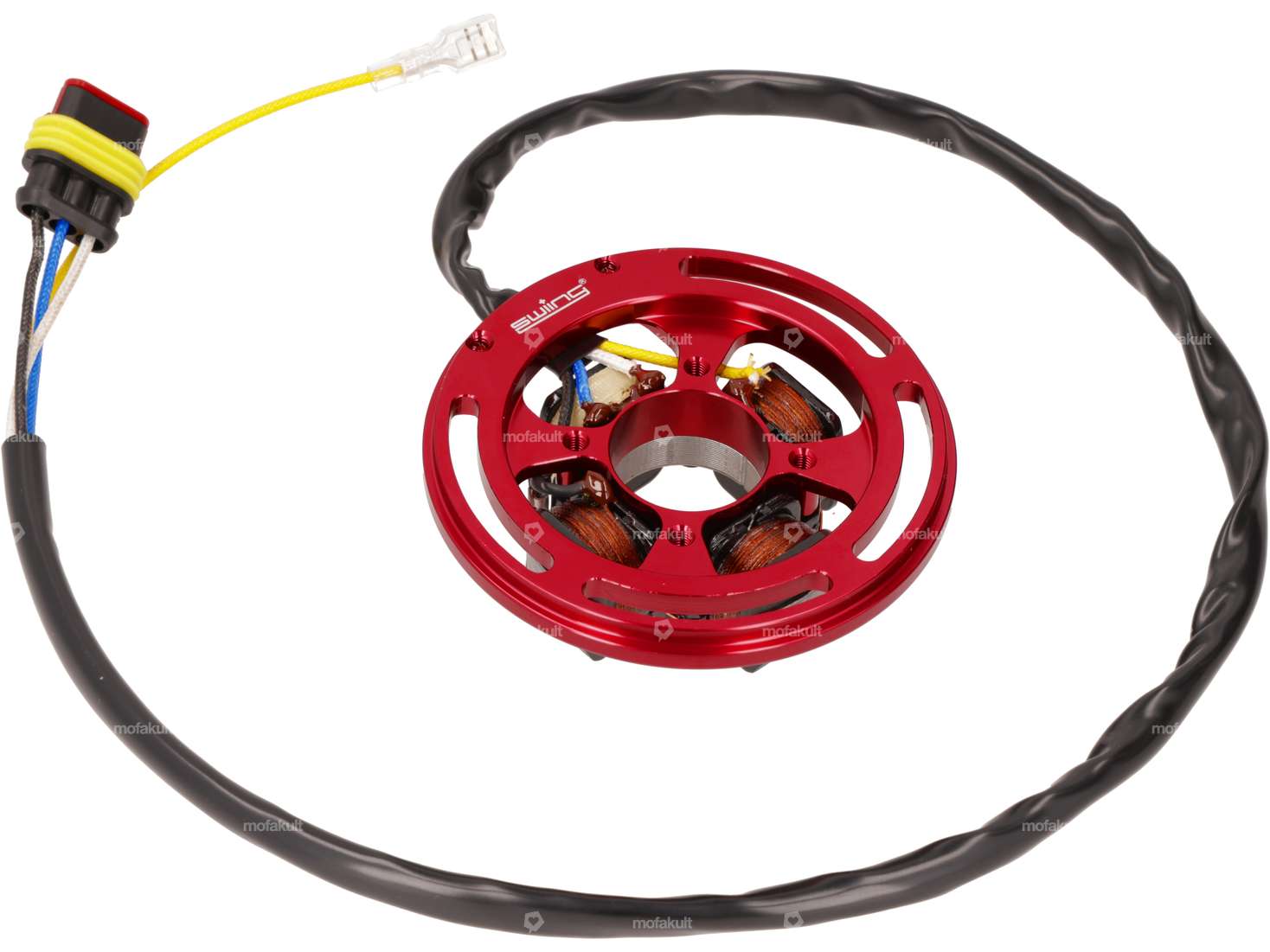

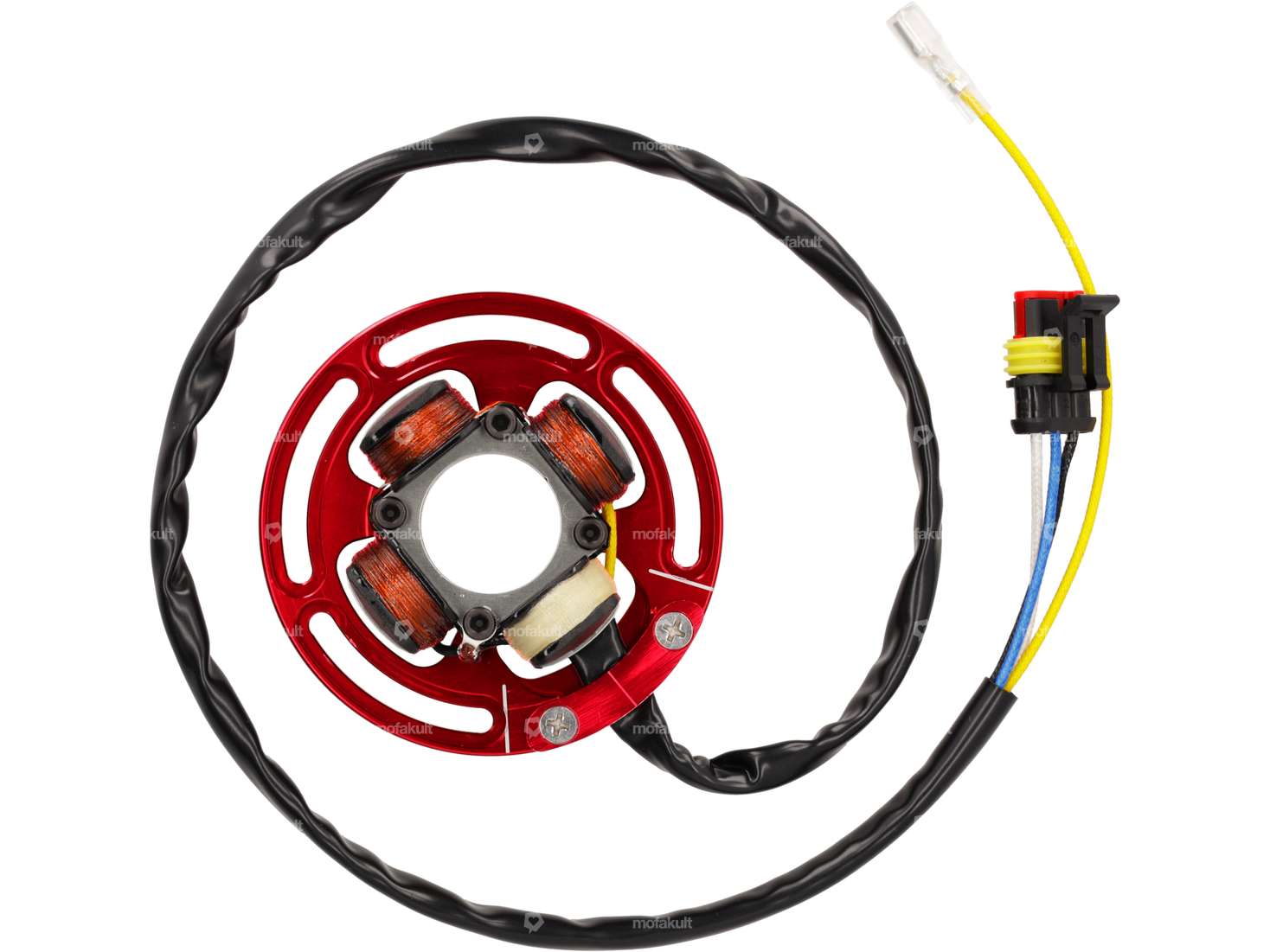

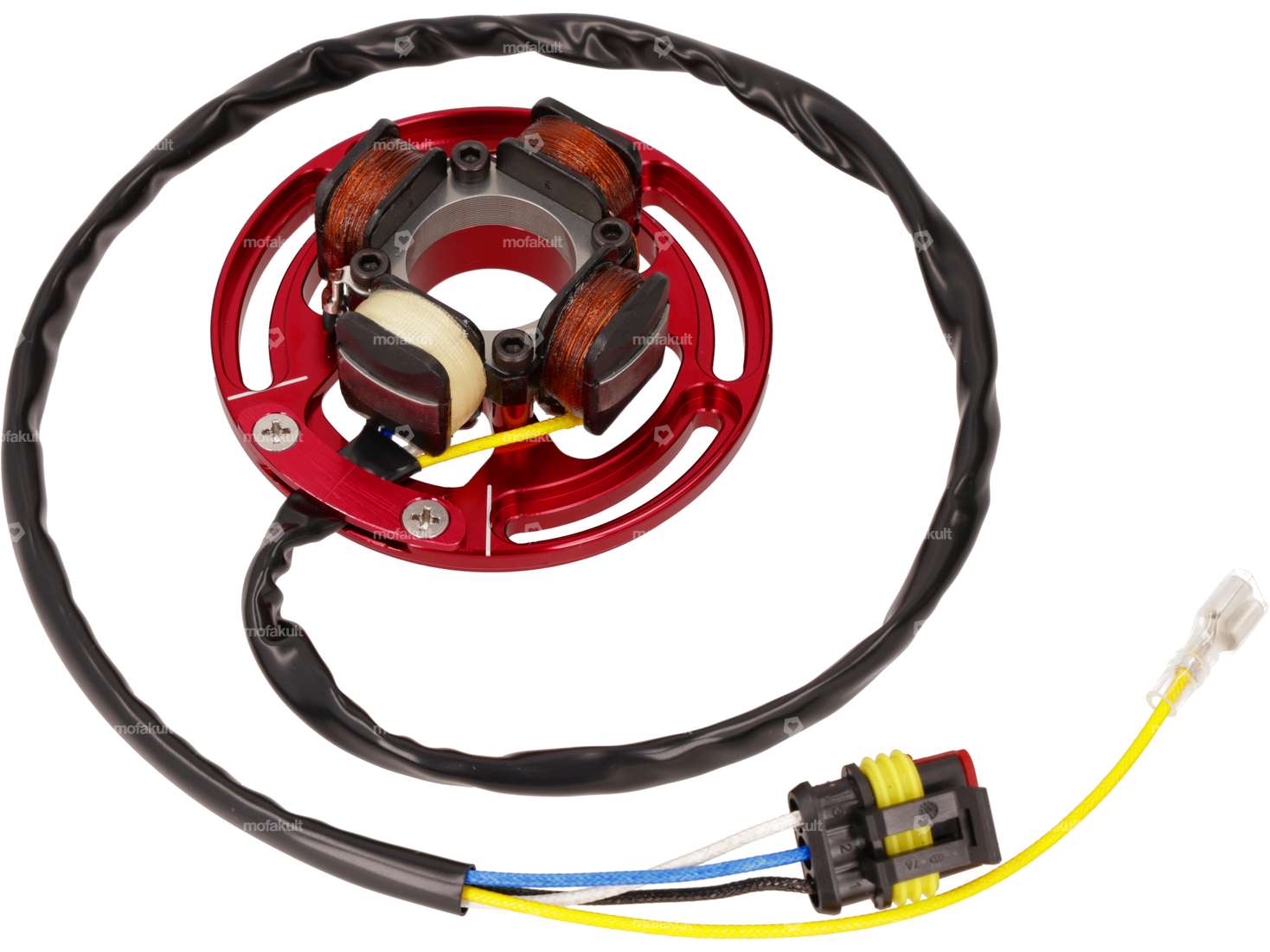

Complete ignition plate suitable for the swiing® ingenious EVO ignition on your moped, moped and small motorcycle.
The base plate is made of red anodized aluminium and has extra long mounting slots to allow the stator to be adjusted as flexibly as possible.

Ø outer: 94 mm
Ø mounting: 90 mm
Ø bolt circle: 80 mm
Ø inner: 28 mm
Height: 34 mm
Plug: Superseal
Cable length: 620 / 700 mm

Correct pinning of the Superseal plug:
1 = black
2 = blue
3 = white

Attention: The swiing® ingenious EVO connectors are not compatible with HPI components.

Matching flywheels, plugs and the complete wiring can be found in the accessories section.

Exceptional product for the highest demands of the quality brand swiing®.

Ø inside28 mm
Number of cables4 pcs
Manufacturerswiing® ingenious parts
MaterialAluminum
Surfaceanodized
Tension12 V
Performance60 W
Colorred
Cable length620 mm, 700 mm
Area of applicationTuning
Ø bolt circle80 mm
Ø outside94 mm, 90 mm
Number of fixing points4 pcs
Puch

E50

ZA50 (air-cooled)

ZA50 (fan-cooled)

Z50 (X30 Sport)

Z50 (X30 Velux)

2-speed MS, MV, MV50

3-speed VSD, DS, VZ, MC

Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)

502 (Saxonette) - AL , AML

50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS)

50/3

50/4 - MLFB (2.6 PS) , LKH (4.5 PS)

503 - AAL , ABL , 2AL / 2BL , AB , AC , ADV

505 (with pedal shaft) - 1A (AT) , 2A (HG)

535

Zündapp Belmondo
Kreidler

Flory MF

Zündapp

247 Motor
