High-quality disc brake system for spoke wheels, which can be fitted without adjustments!
The complete set can be fitted universally for various mopeds / mopeds in conjunction with the corresponding hydraulic EBR telescopic fork.
All add-on parts are of the highest quality and fit perfectly.
The brake calliper including brake lever are already provided with brake fluid and therefore only need to be screwed on. The steel flex brake cable is 90 cm long. Please bear this in mind when selecting the handlebars.
All screw connections must be secured with Loctite.

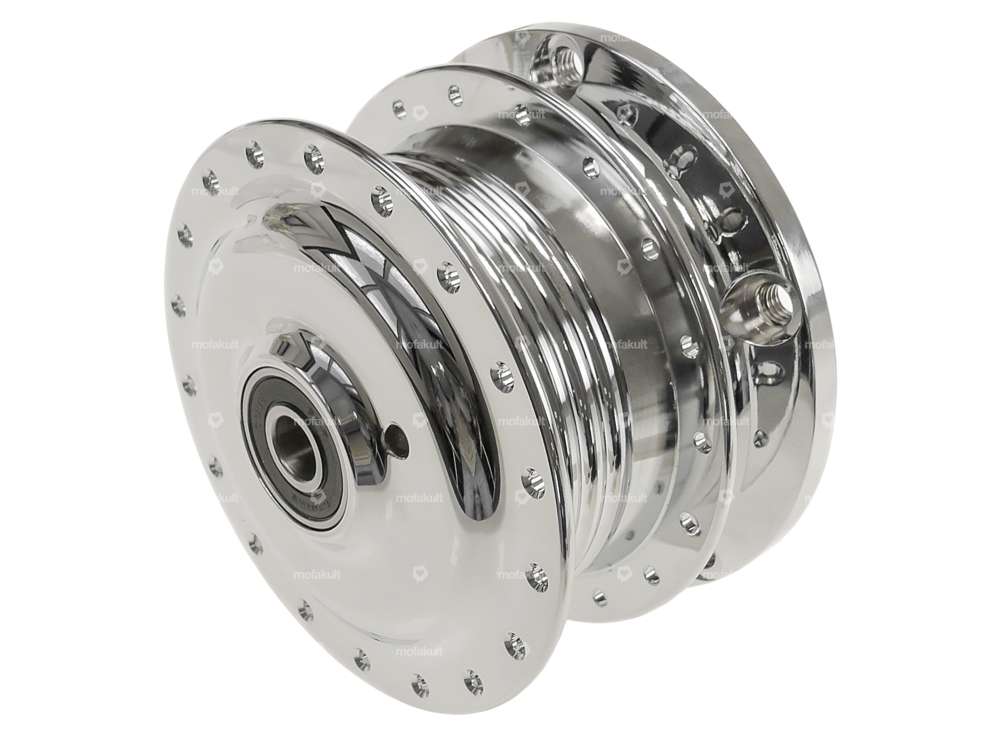

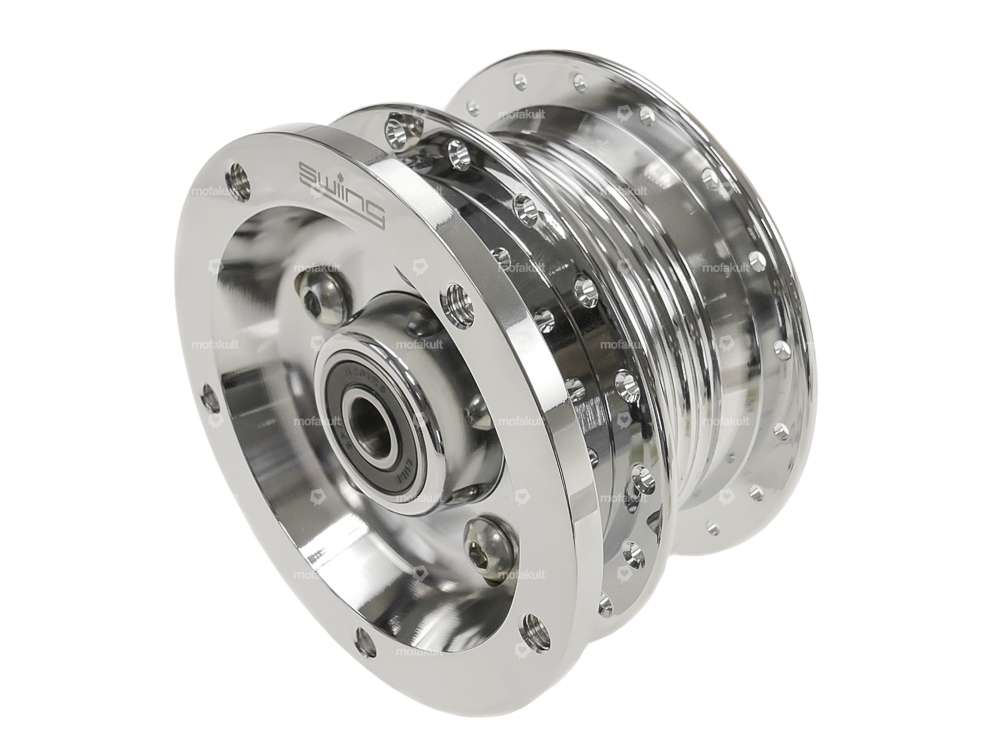

The CNC-machined aluminum wheel hub is chrome-plated. It has been subjected to various load tests and can withstand the increased forces of a disc brake without any problems.
The dimensions of the hub correspond to the original.
The two spacers are mounted in the direction of travel as follows: left: 21.25 mm long / right: 27.5 mm long.

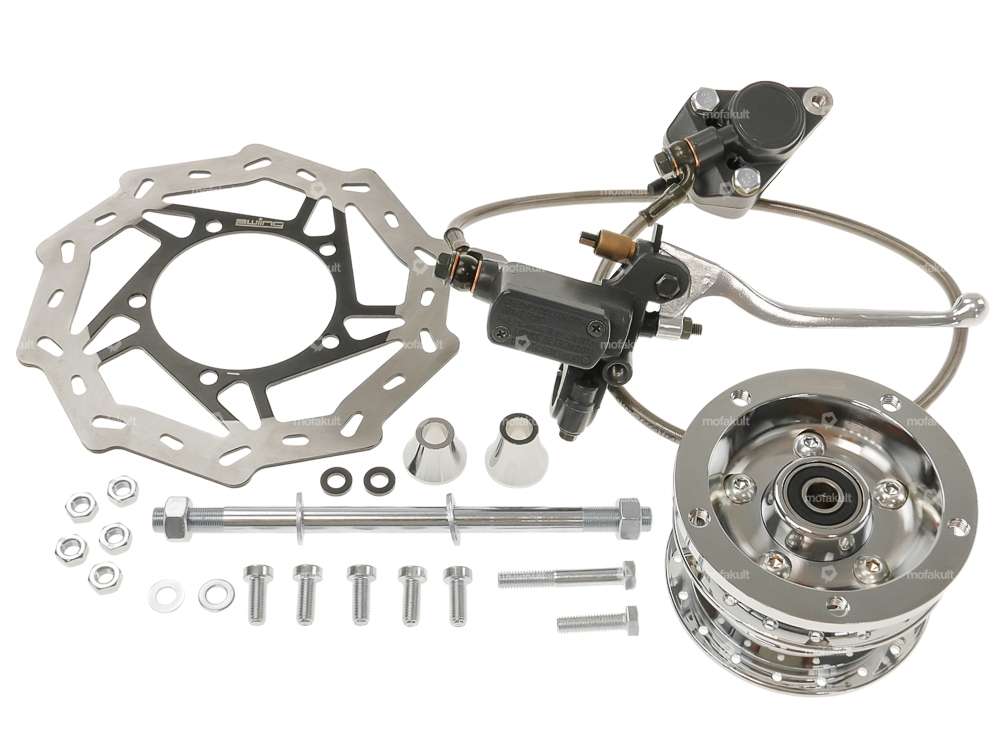

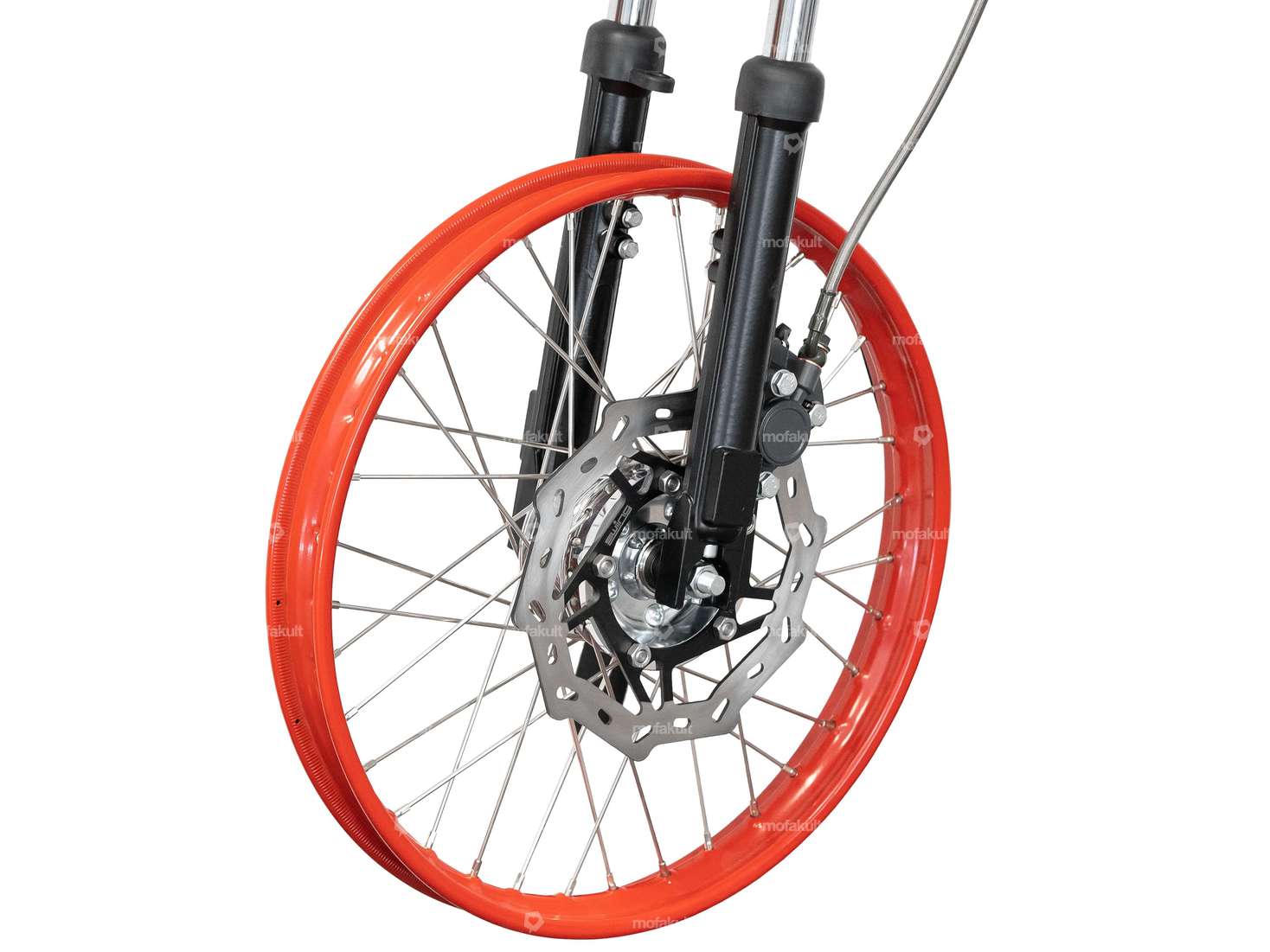

Scope of delivery corresponds to Figure 1. Figure 4 serves only to illustrate the installation.

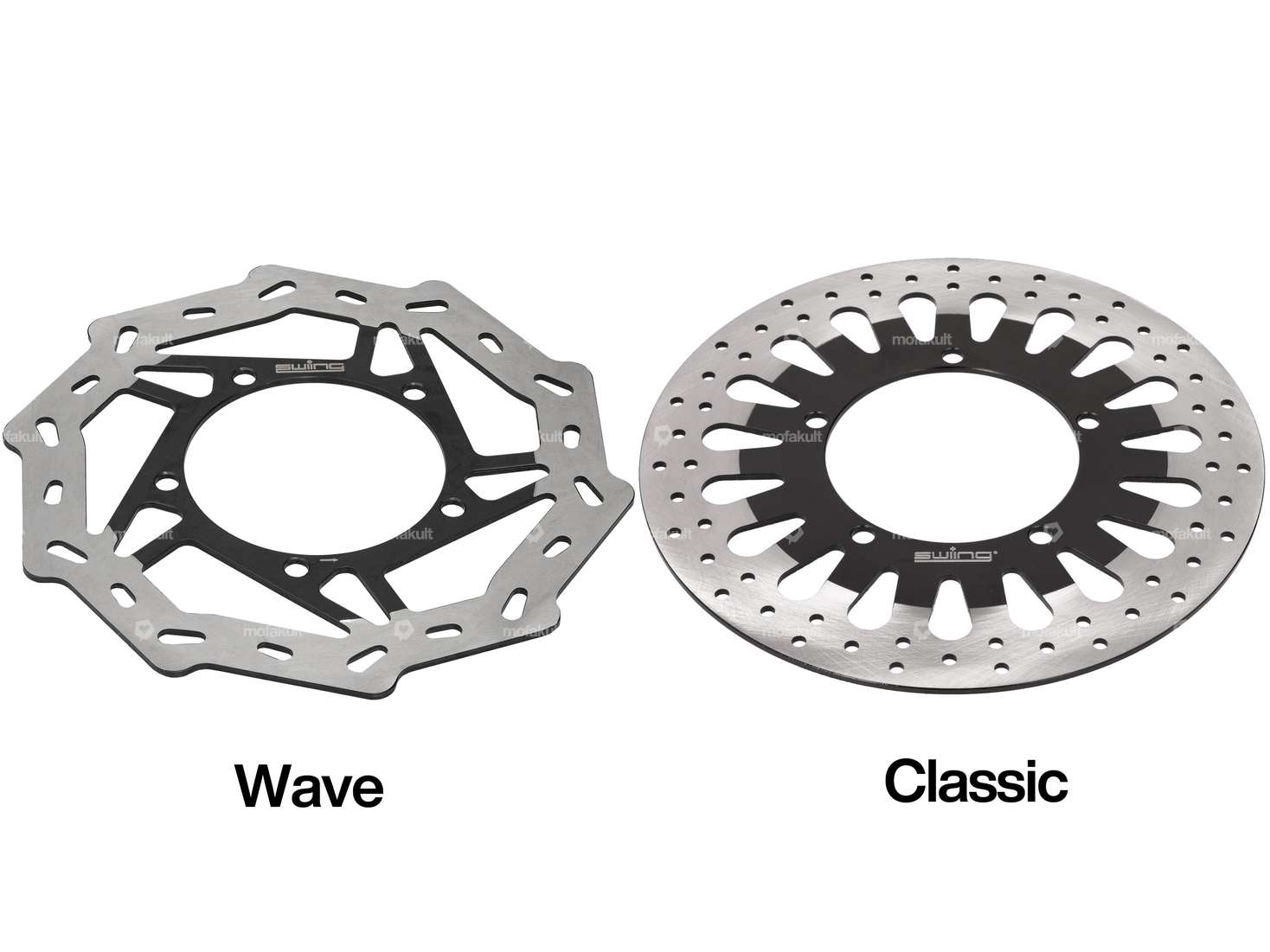

Brake disc, wheel axle, wheel hub, spacers and mounting material were manufactured by the quality brand swiing - swiss ingenious.
When you buy this complete set, you get a big discount on the retail price of the individual parts.
All individual parts for this disc brake system and other add-on parts can be found in the accessories section.
Manufacturer: swiing® ingenious parts · Color: Chrome · Material: Aluminum · Surface: chrome-plated · Area of application: Tuning, Racing, Cross, MX, Performance · Ø axle: 12 mm · Ø Receptacle: 12 mm · Ø outside: 120 mm · Ø bolt circle: 104.5 mm · Width: 77 mm · Thread type: M8x1.25 (standard thread) · Number of spoke holes: 36 pcs · Ø spoke hole: 3.7 mm · Number of fixing points: 5 pcs
Manufacturer: swiing® ingenious parts
Manufacturer: swiing® ingenious parts
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø shaft: 11.95 mm · Thread type: MF12x1 (fine pitch thread) · Thread length: 25 mm · Total length: 170 mm
Material: Cast aluminum · Surface: varnished · Color: gray · Cable length: 900 mm · Brake lever length (lever length): 162 mm · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Ø Handlebars: 22 mm · Hole spacing: 60 mm, 32 mm · Thread type: M8x1.25 (standard thread)
| Manufacturer | swiing® ingenious parts |
| Color | Chrome |
| Puch |
| Sachs |
| Pony / Cilo (Beta 521 & 512) |
| Piaggio |
