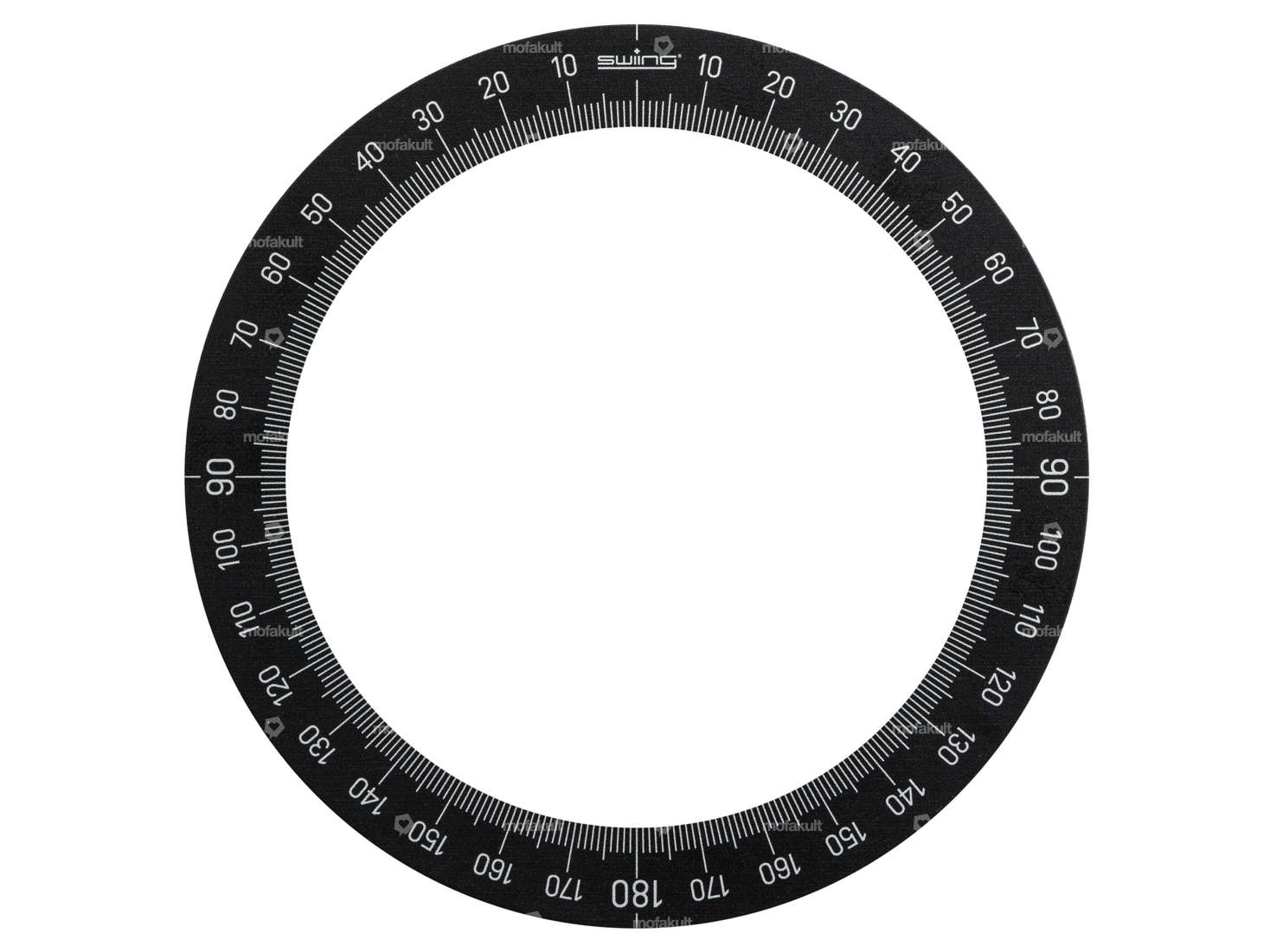

Aluminum angle disk for measuring the intake timing on your Piaggio Ciao, SI, Bravo and Boxer moped / moped.
The angle meter was designed so that it is guided through the sealing edge on the original and Polini Speed Engine housing and can be rotated.

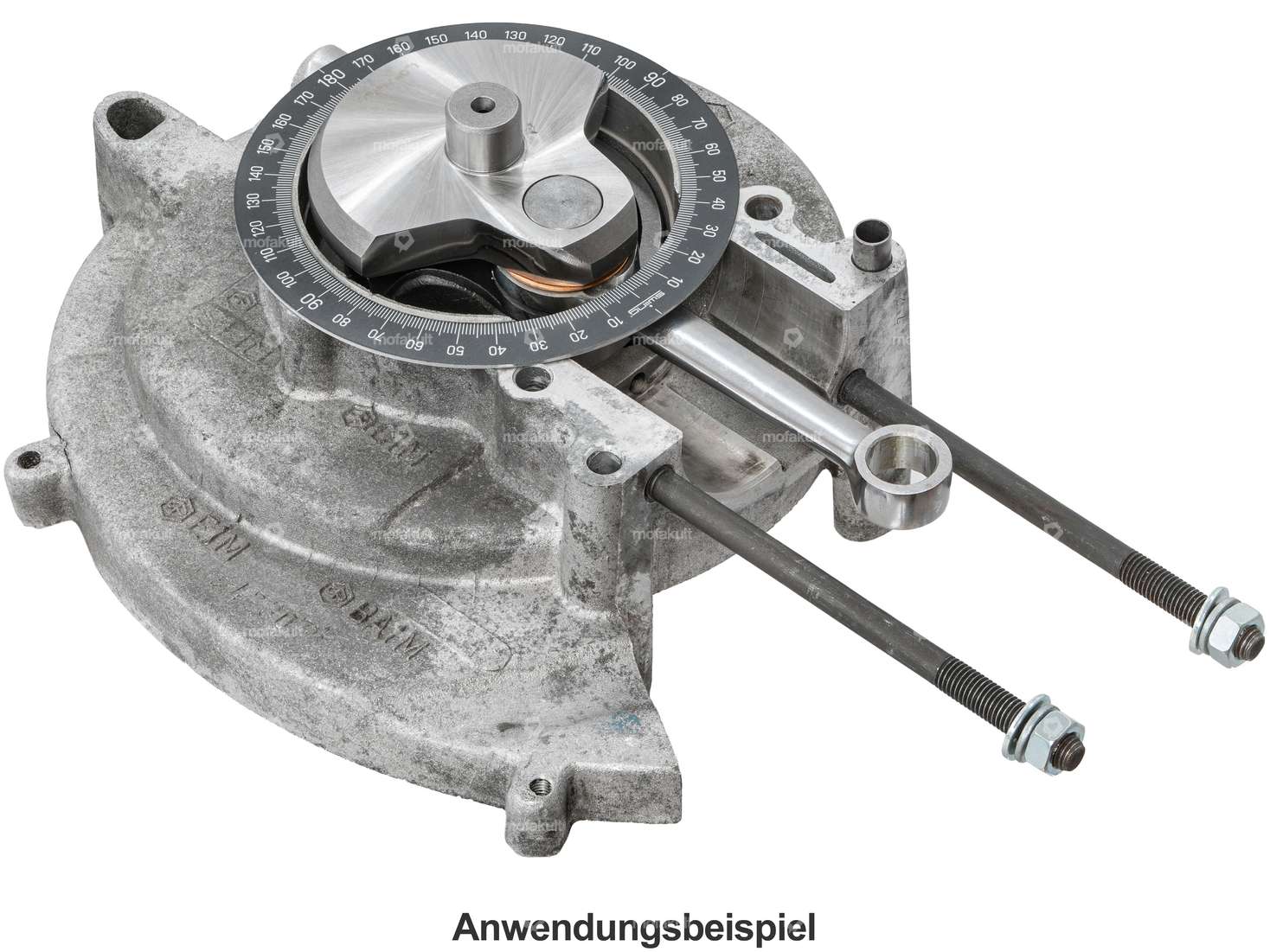

To use, mount your crankshaft in the large housing section and set it to top dead centre (TDC). Then mark the crankshaft with a line and set the degree disk to 0° accordingly. By turning the crankshaft, you can now measure the timing until the intake opens and closes.
Material: Aluminum
Ø outside: 100 mm
Ø inside: 77 mm
Material thickness: 1 mm
Note: The angle measuring disk does not fit on the Pinasco racing gearboxes Slave and Master.
Exceptional product for the highest demands of the quality brand swiing®.
| Diameter | 90 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Area of application | Measuring tool, Special tool |
| Thickness | 1 mm |
| Number of components | 1 pcs |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
Ratings
Accessories & related products

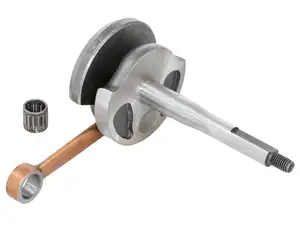

Jasil crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Jasil · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 91.5 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Thread type: M8x1.25 (standard thread) · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 32.9 mm · Length 1st paragraph: 21.5 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 64.9 mm · Area of application: Racing
CHF 129.90

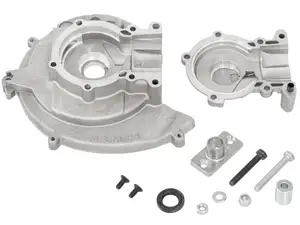

Polini Speed Engine engine case breaker ignition | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Material: Aluminum · Surface: sandblasted · Color: silver · Stock number: 6202 · Crankshaft stroke: 43 mm · Ignition type: Breaker · Width: 175 mm · Total length: 215 mm · Height: 104 mm
CHF 209.90
Mazzucchelli crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Weight: 698 g · Number of gears: 1 pcs · Thread type: M8x1.25 (standard thread) · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Thread length: 16 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø piston pin (B): 10 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Area of application: Racing · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 °
CHF 149.90
Explore categories from Tools
Moped fans also bought
Inox
Hot
GPO license plate holder Inox (CH version)
Ø mounting hole: 5 mm · Manufacturer: GPO · Material: Chrome steel (colloquially known as stainless steel) · Color: silver · Width: 105 mm · Mounting type: Nuts & bolts · Thread length: 8 mm · Hole spacing: 30 mm · Hole spacing: 50 mm · Thread type: M5x0.8 (standard thread) · Total length: 145 mm · Height: 5.3 mm · Number of fixing points: 2 pcs
CHF 10.90
Not in stock
Plastic license plate holder (CH version)
Ø mounting hole: 6 mm · Manufacturer: Made in Switzerland · Material: Brass · Material: Plastic · Color: black · Width: 108 mm · Mounting type: Nuts & bolts · Thread length: 6 mm · Hole spacing: 50 mm · Thread type: M5x0.8 (standard thread) · Total length: 175 mm · Height: 11 mm · Number of fixing points: 9 pcs
CHF 7.90
Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm
Manufacturer: Magura · Material: Brass · Material: Steel · Surface: nickel-plated · Ø Cable bushing: 1.6 mm · Drive: Slot · Screw head: Lens head · Ø outside: 5 mm · Number of components: 2 pcs · Thread length: 4 mm · Thread type: M4x0.7 (standard thread) · Total length: 6 mm
CHF 2.00

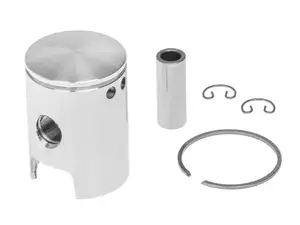

Meteor piston 38 mm #1 | Puch Supermaxi Cat.
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.955 mm · Compression height (C): 24 mm · Curvature (D): 2.3 mm · Total piston height (E): 55.3 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: 1 · Weight piston kit: 78 g
CHF 54.90

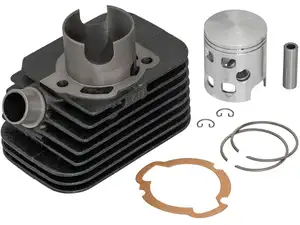

DR 43 mm cylinder kit 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
