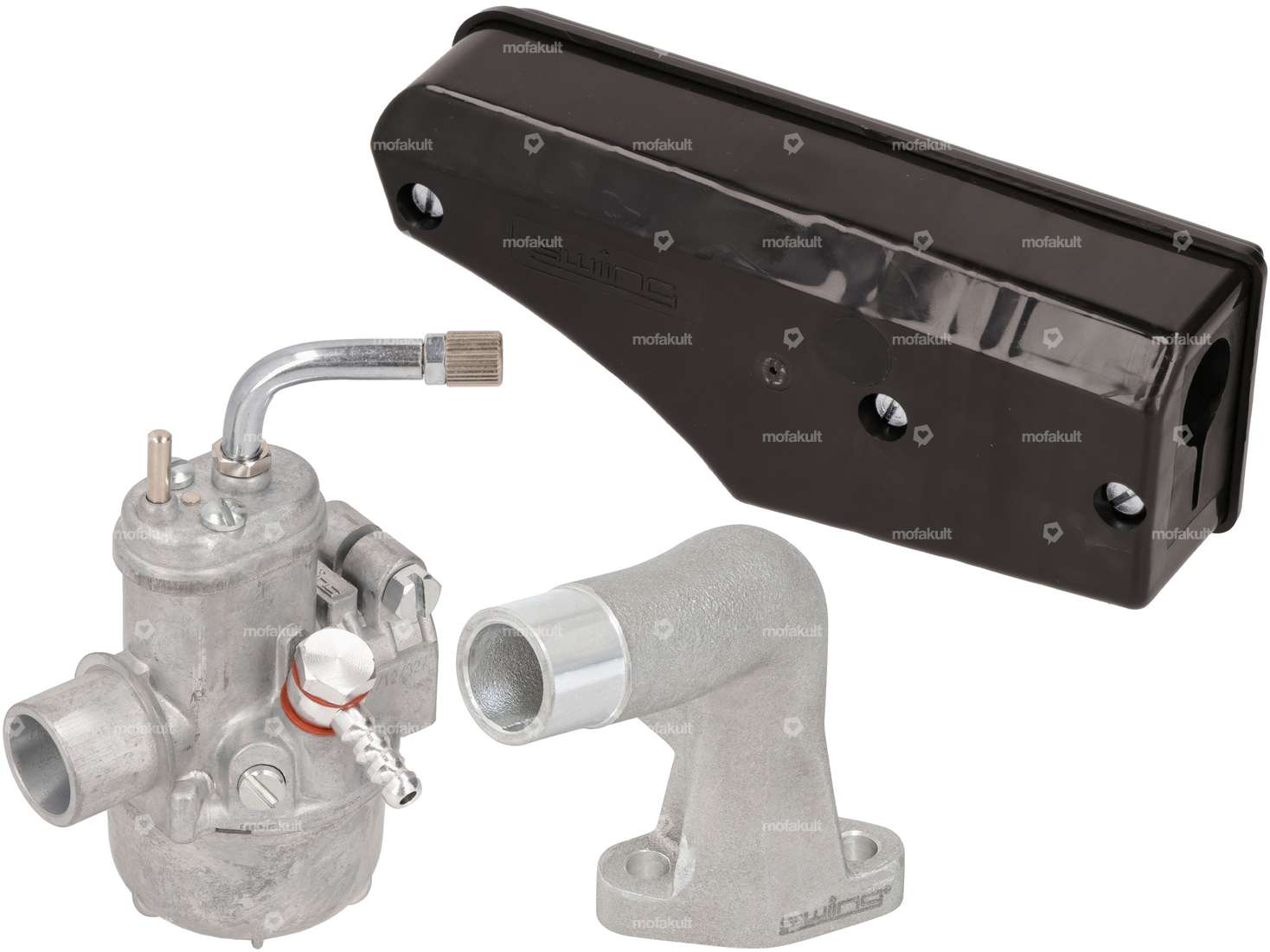

Complete carburetor set for manual Sachs 503 2AL / 2BL, as well as automatic AAL mopeds.
The 15 mm intake manifold is the long version, the air filter is the racing version with more air flow.
Manufacturer: swiing® ingenious parts · Camouflaged: No · Material: Aluminum · Ø inside: 15 mm · Ø External connection: 20 mm · Mounting type: Screws · Hole spacing inlet: 32 mm · Number of fixing points: 2 pcs · Total height: 80 mm · Height flange center hole: 70 mm · Total length: 70 mm · Thread type: M6x1 (standard thread) · Area of application: Tuning · Pony OEM number: A2176

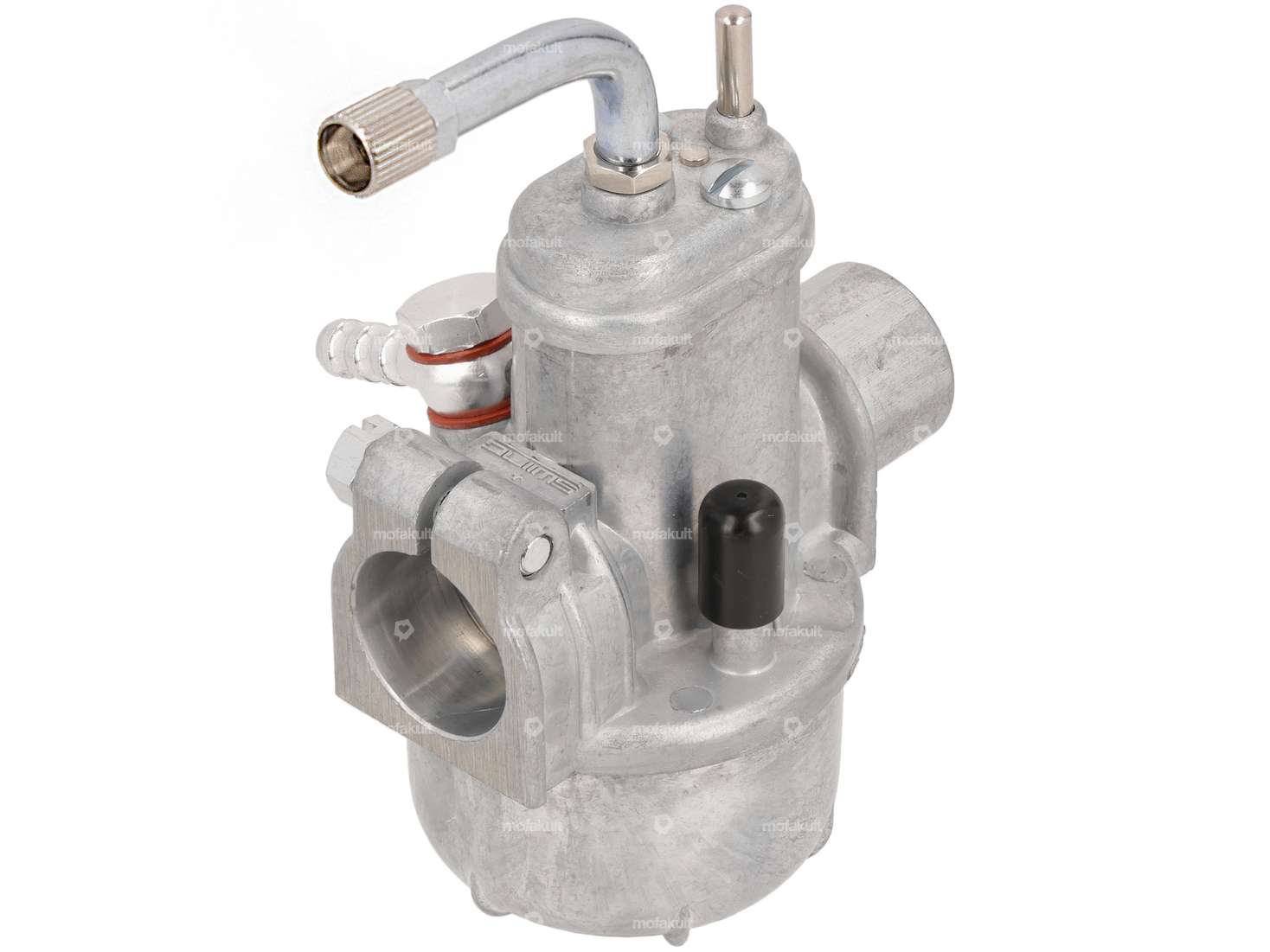

Nozzle block: 2.17 · Nozzle size: 62 · Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Material: Aluminum · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Clamping screw torque (max.): 4 N/m · Total length: 66 mm · Width: 50 mm · Height: 95 mm · Area of application: Tuning · Component group Carburetor: Carburetor complete

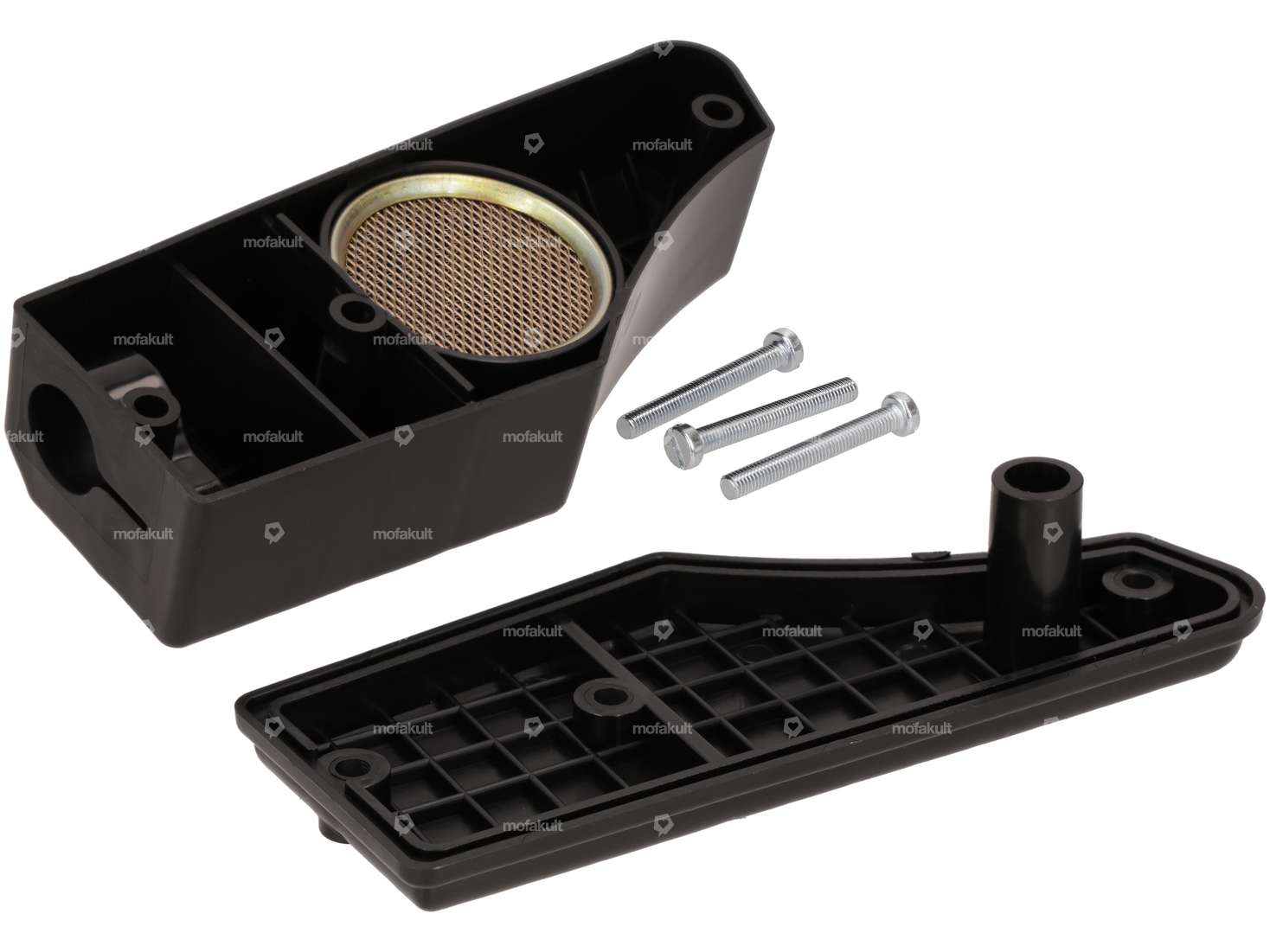

Manufacturer: swiing® revival parts · Camouflaged: No · Color: black · Material: Plastic · Filter type: Racing screen · Total length: 165 mm · Width: 68 mm · Height: 52 mm · Ø Internal connection: 20 mm · Mounting type: Plug connection clamped · Area of application: Tuning
| Nominal diameter | 15 mm |
| Manufacturer | swiing® ingenious parts |
| Component group Carburetor | Carburetor complete |
| Color | black |
| Carburetor type | SRE |
| Total length | 66 mm, 165 mm |
| Choke control | Hand choke |
| Width | 50 mm, 68 mm |
| Height | 95 mm, 52 mm |
| Ø fuel hose connection | 6 mm |
| Nozzle thread | M3.5x0.6 (standard thread) |
| Nozzle size | 62 |
| Ø Internal connection | 20 mm |
| Ø Inside entrance | 15 mm |
| Ø Output inside | 15 mm |
| Ø Air filter connection | 20 mm |
| Hole spacing inlet | 32 mm |
| Mounting type | Flange, Plug connection clamped |
| Mixed oil connection | No |
| Vacuum connection | No |
| Nozzle block | 2.17 |
| Camouflaged | No |
| Area of application | Tuning |
| Clamping screw torque (max.) | 4 N/m |
| Sachs | 503 - AAL, 2AL / 2BL |
