Repair manual for Puch X30 models.

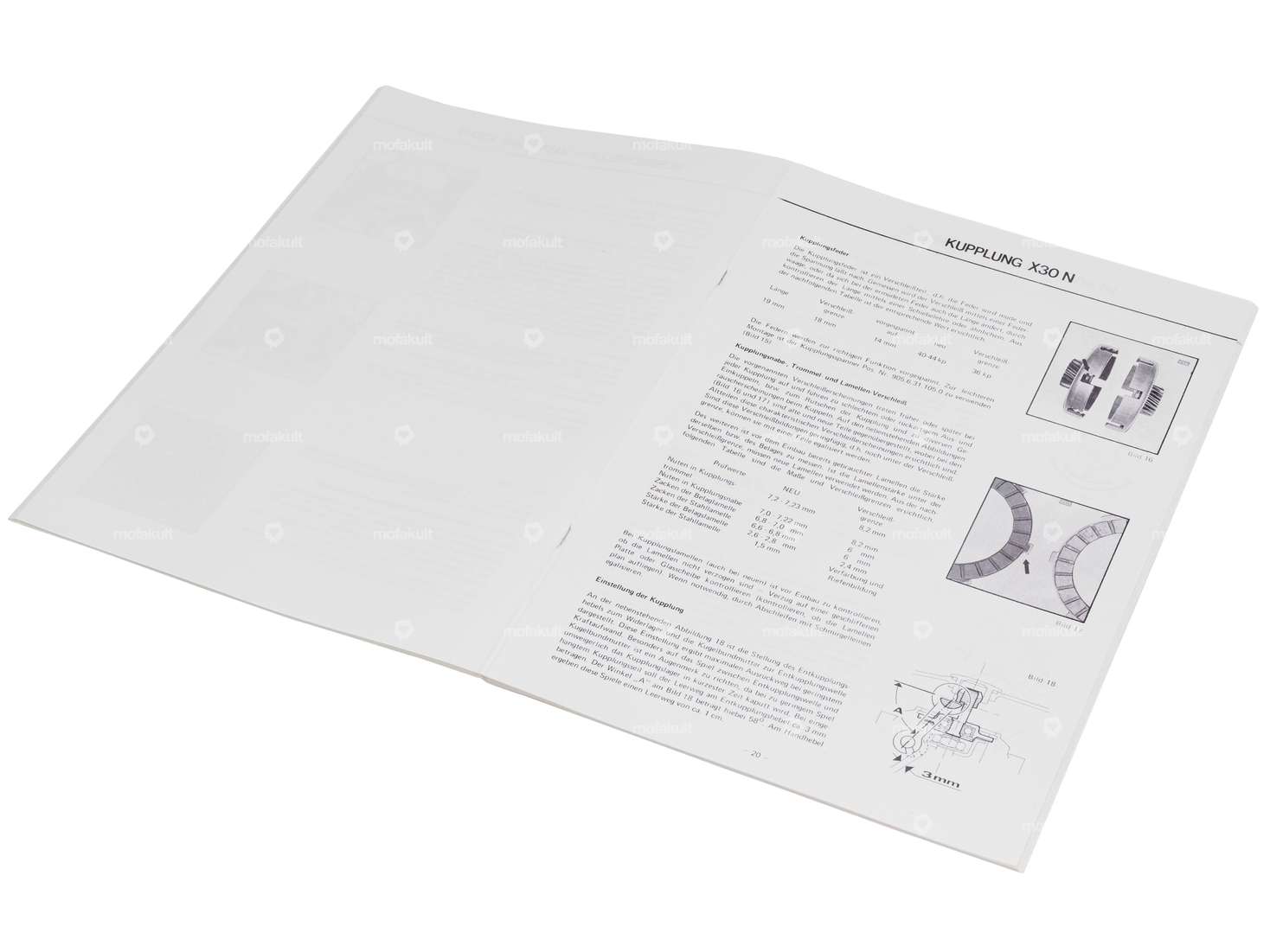

This great catalog with 40 pages contains a lot of interesting facts about the X30. Many repairs are described.
1-speed automatic and 2-speed manual engines are described with revision instructions, many pictures and important facts.
The following things are also described extensively: technical data, special tools, engine, inspection work, carburetor, frame, front fork, brakes, wheels and the electrical system.
I advise every Puch fan/wrench to read such a book once, you can always learn something new.
| Material | Paper |
| Number of pages | 40 pcs |
| Language | German |
| Puch | E50 Z50 (X30 Sport) |
