For: Puch

11055

Repair instructions | Puch Maxi, X30

rating iconrating iconrating iconrating iconrating icon
No reviews
CHF 59.90

Incl. 8.1% VAT.

Description

Repair instructions for Puch Maxi and X30 models.

This super catalog with 165 pages contains everything you need to know about the Maxi and X30. Every conceivable repair is described.

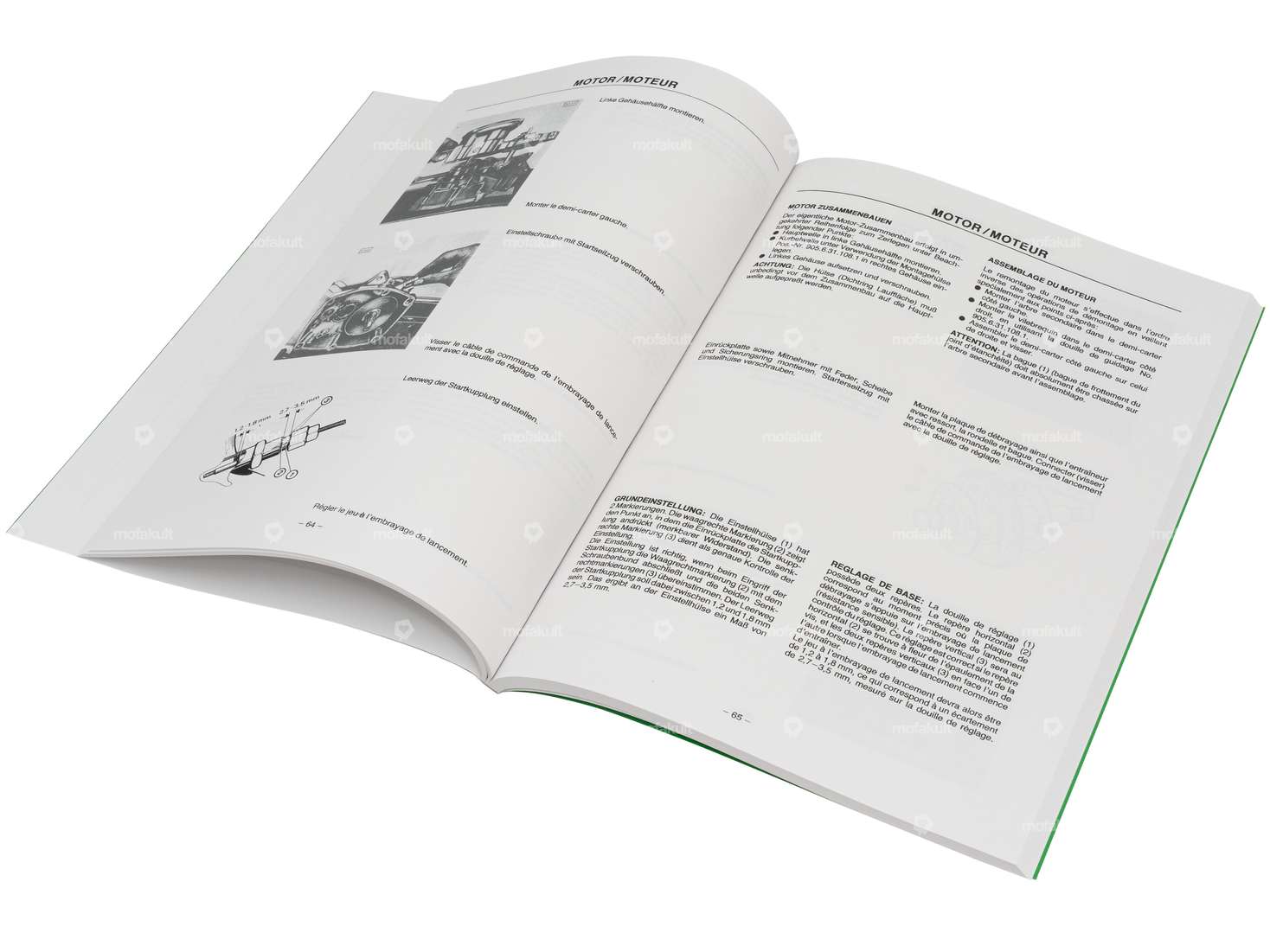

1-speed as well as 2-speed automatic engines are described with revision instructions, many pictures and important facts.

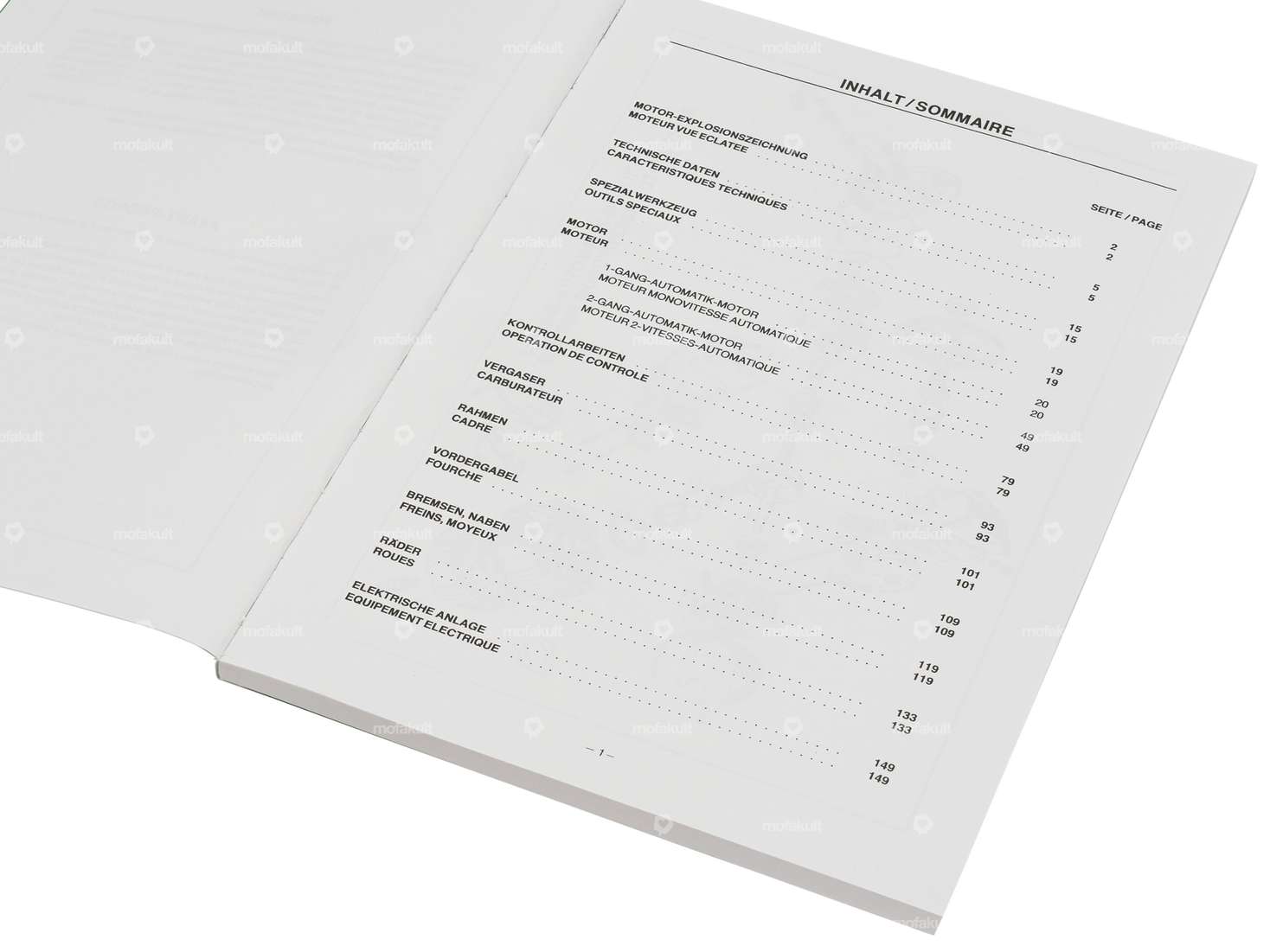

The following items are also comprehensively described: technical data, special tools, engine, inspection work, carburetor, frame, front fork, brakes, wheels and the electrical system.

I advise every Puch fan / mechanic to read a book like this, you can always learn something new.

MaterialPaper
DIN formatA4
Number of pages165 pcs
LanguageGerman, French
Puch

E50

ZA50 (air-cooled)

ZA50 (fan-cooled)
