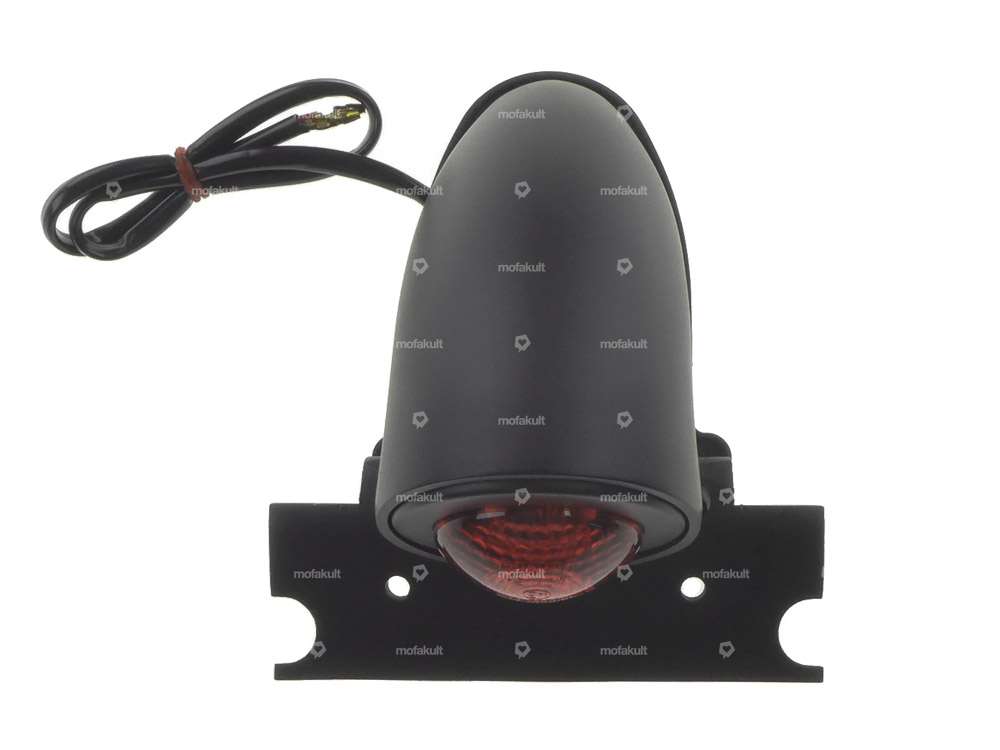

Stylish backlight for custom conversions.
Solid, black-painted metal housing.

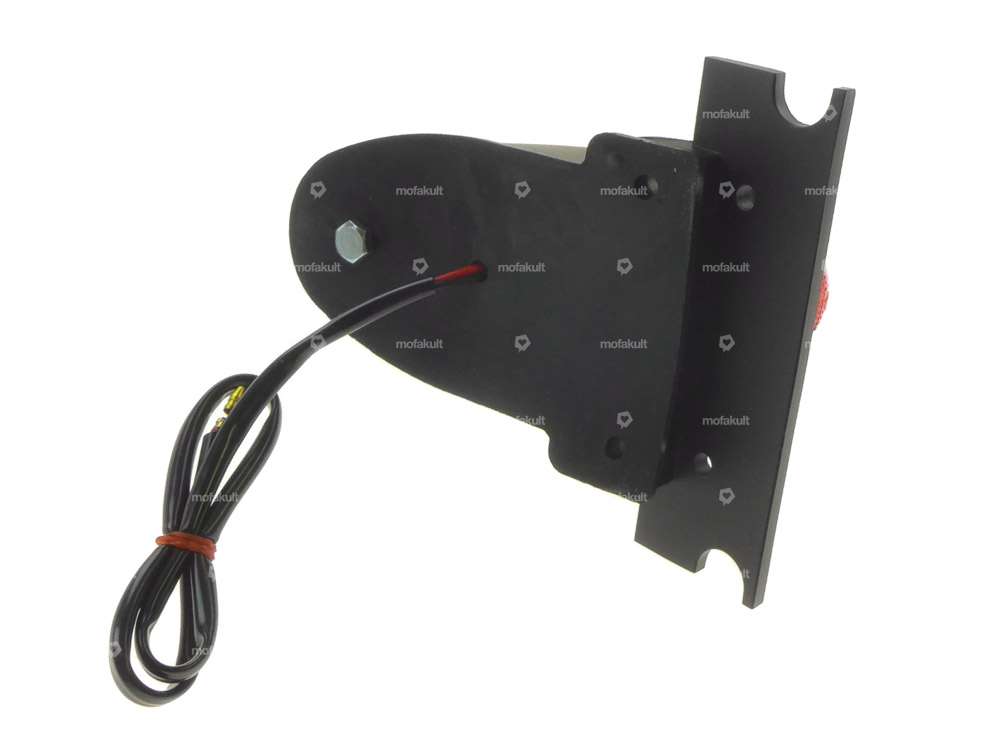

The light is attached using 2 screws.
The screw holes are spaced 6.7 cm apart.
Two additional screw holes are attached to the flat bar. These can be used, for example, to attach the license plate.
Dimensions:
- (LxWxH): 15cm x 12.5 cm x 9 cm
- Ø Lamp glass: 40 mm
- Length of cable: 40 cm
A bulb with 12V21/5W and Ba15d socket is already installed in the lamp.
| Material | Steel |
| Test mark | E11 |
| Color | red, black |
| Height | 90 mm |
| Brake light | No |
| Reflectors | Yes |
| Battery operated | No |
| Mounting type | Nuts & bolts |
| Width | 125 mm |
| Number of fixing points | 2 pcs |
| Depth | 150 mm |
