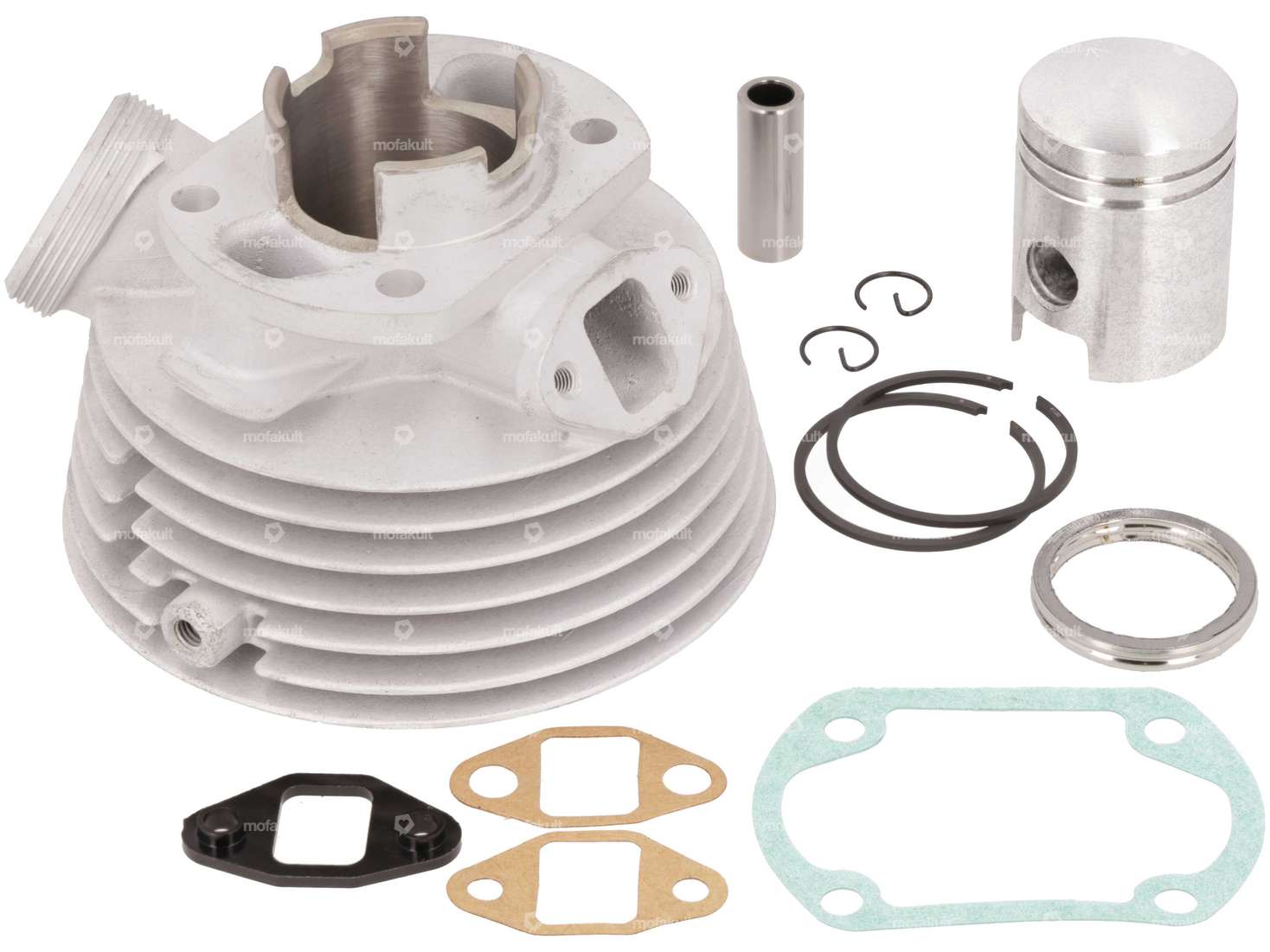

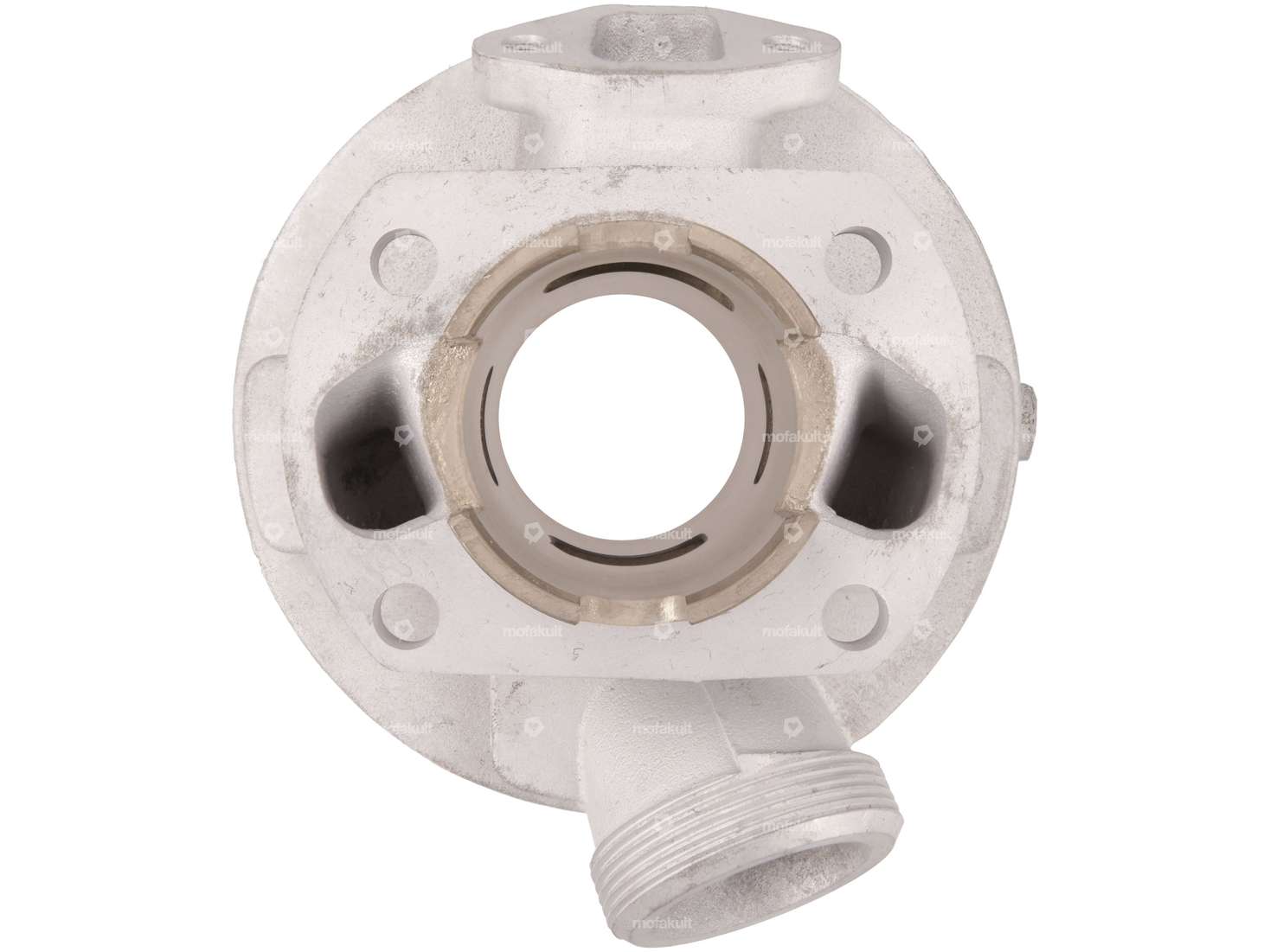

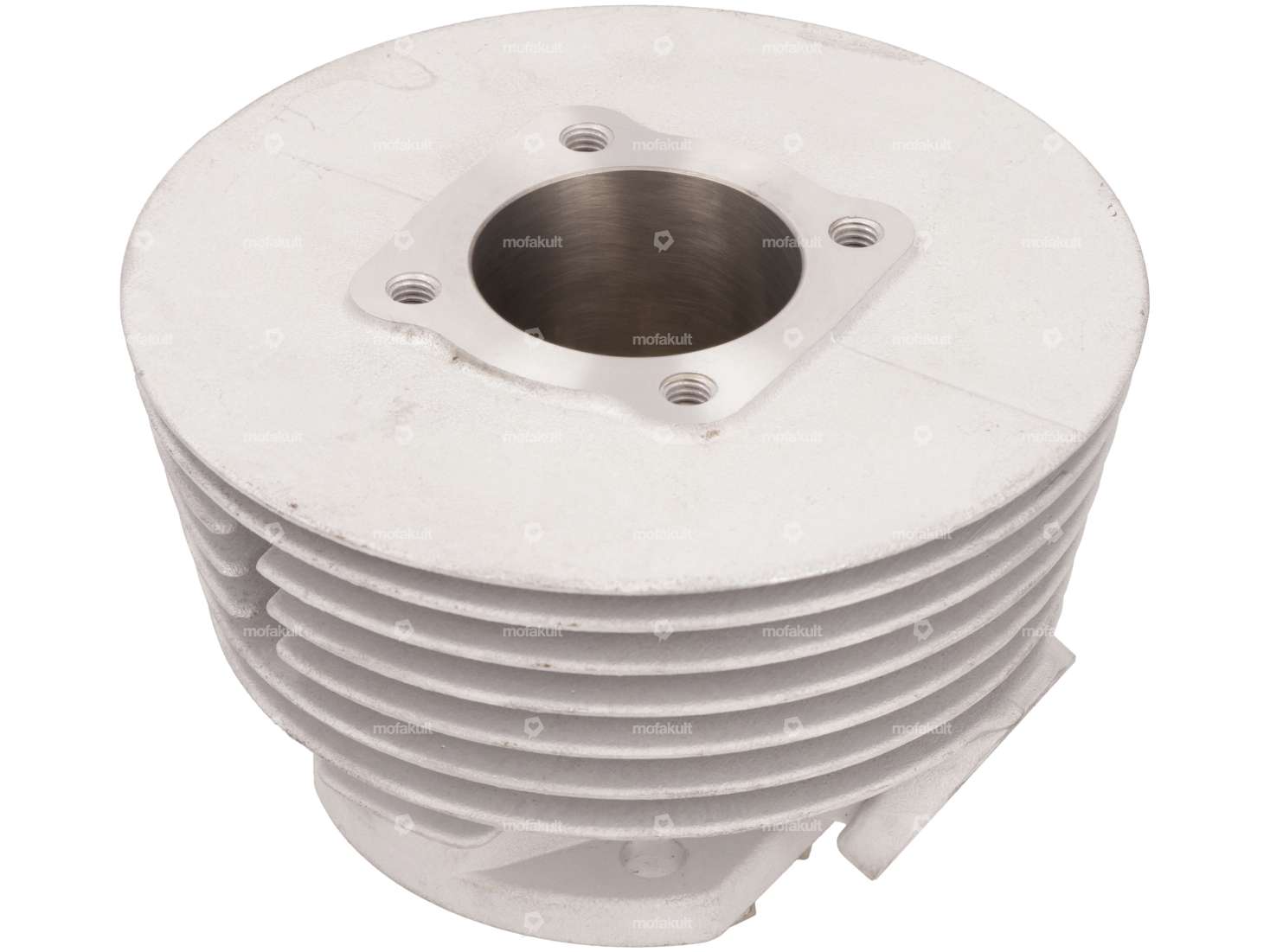

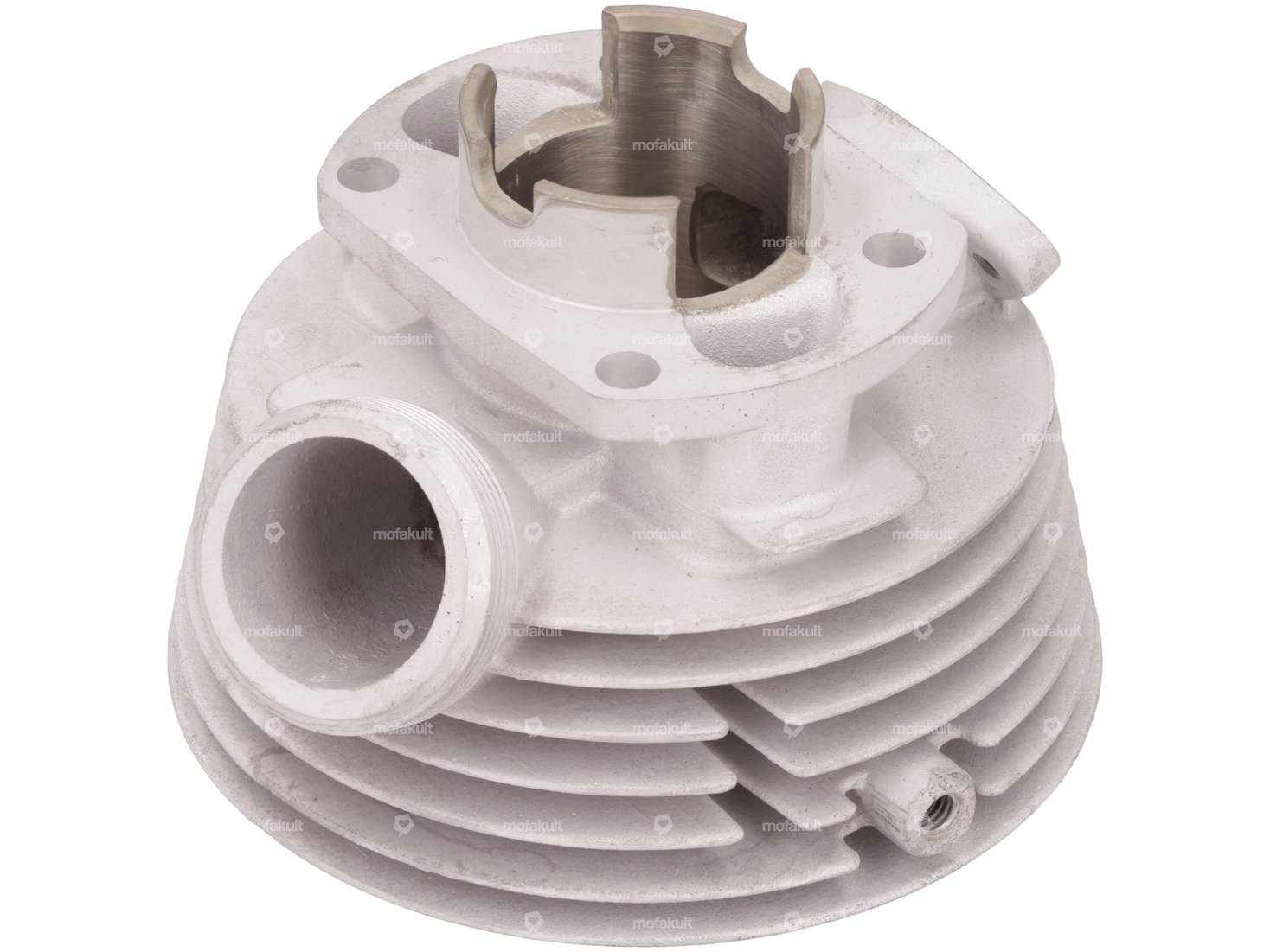

Complete 38 mm aluminum tuning cylinder with nickel-silicon carbide coating (colloquially known as Nikasil) and square inlet for small engine wheels with Sachs 3- and 4-speed engines with foot shift. These engines were used on Hercules 50/3 LS 50/4 LKH, Gritzner etc.
The workmanship of the 50 cc racing cylinder is fine, but could do with some rework on some edges.
In order to be able to mount this racing kit on a Sachs 50/2 engine, various adjustments must be made.
Note: An exhaust nut with M40x1.5 mm thread is required.
The cylinder kit requires a 17 mm Bing SSB carburetor. You can find this and other add-on parts in the accessories section.
| Nominal diameter | 38 mm |
| Manufacturer | Power1 |
| Camouflaged | No |
| Area of application | Tuning |
| Material | Aluminum |
| Surface | Nickel silicon carbide (colloquially known as Nikasil) |
| Displacement | 50 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 44 mm |
| Hole spacing inlet | 31 mm |
| Inlet window | 16 x 18 |
| Number of fixing points | 4 pcs |
| Thread inlet | M5x0.8 (standard thread) |
| Ø piston pin (B) | 12 mm |
| Outlet type | Union nut |
| Thread outlet | MF40x1.5 (fine pitch thread) |
| Hole pattern [mm] | 51 x 40 / 37 x 37 |
| Sachs | 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
