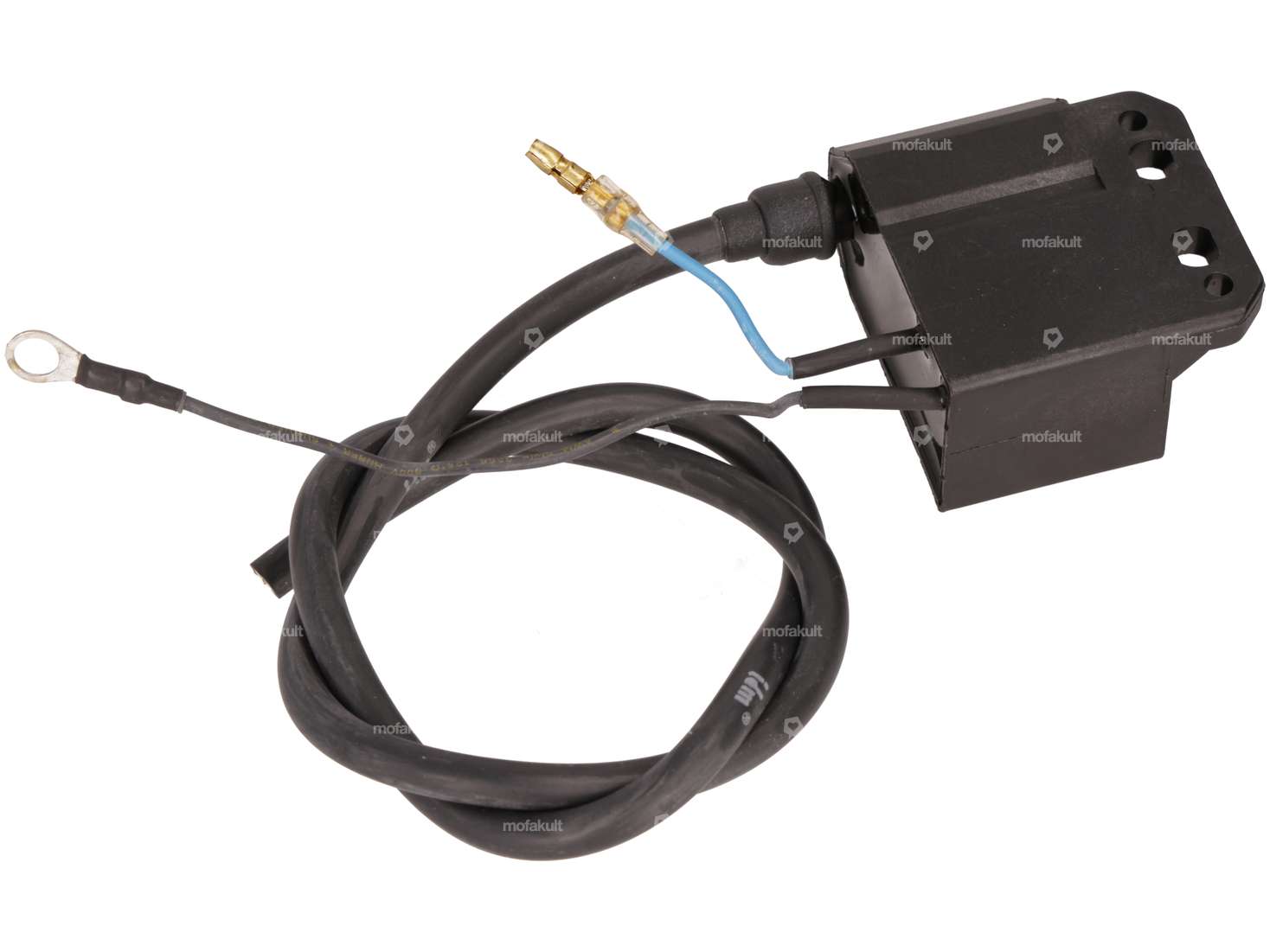

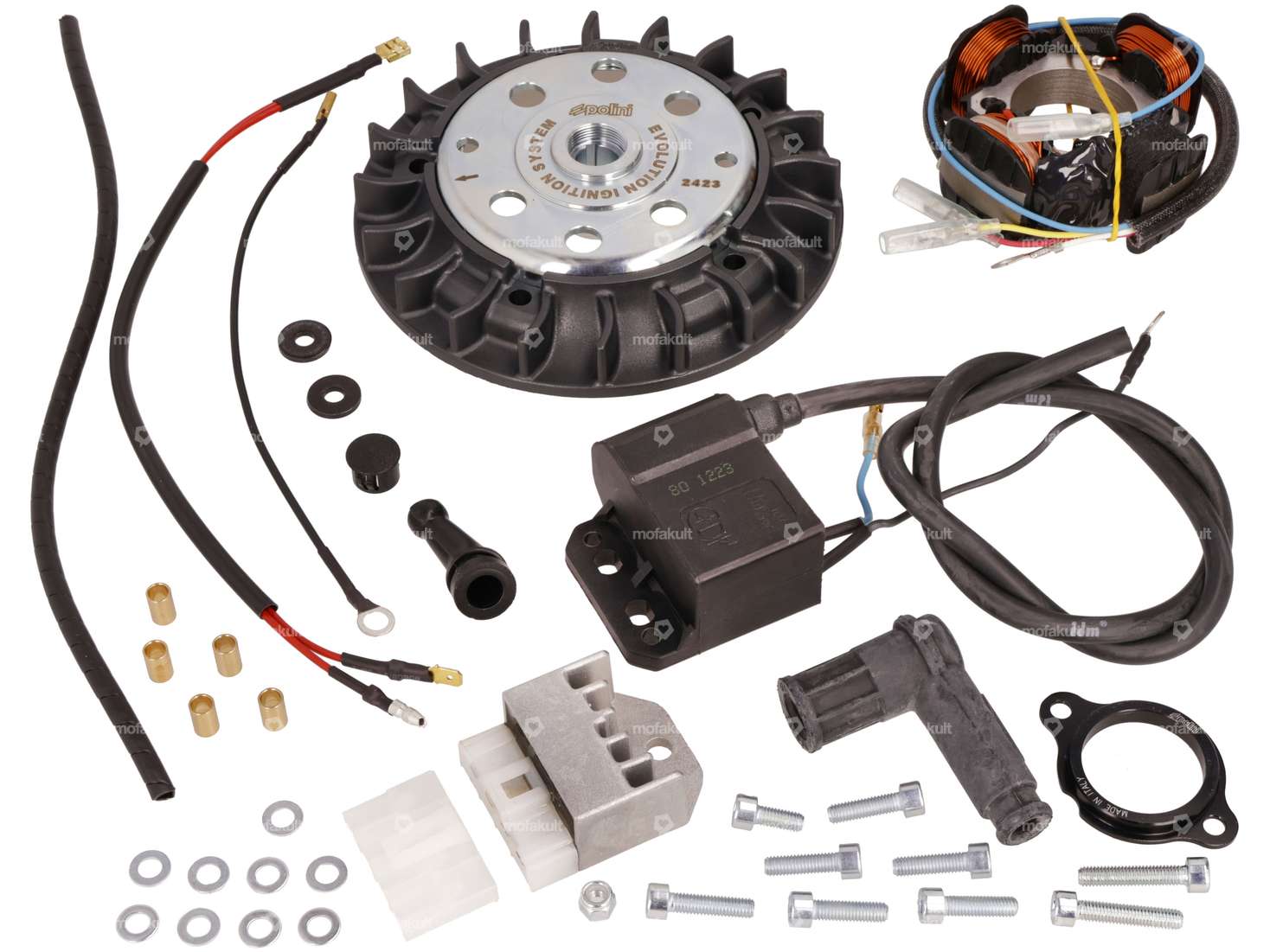

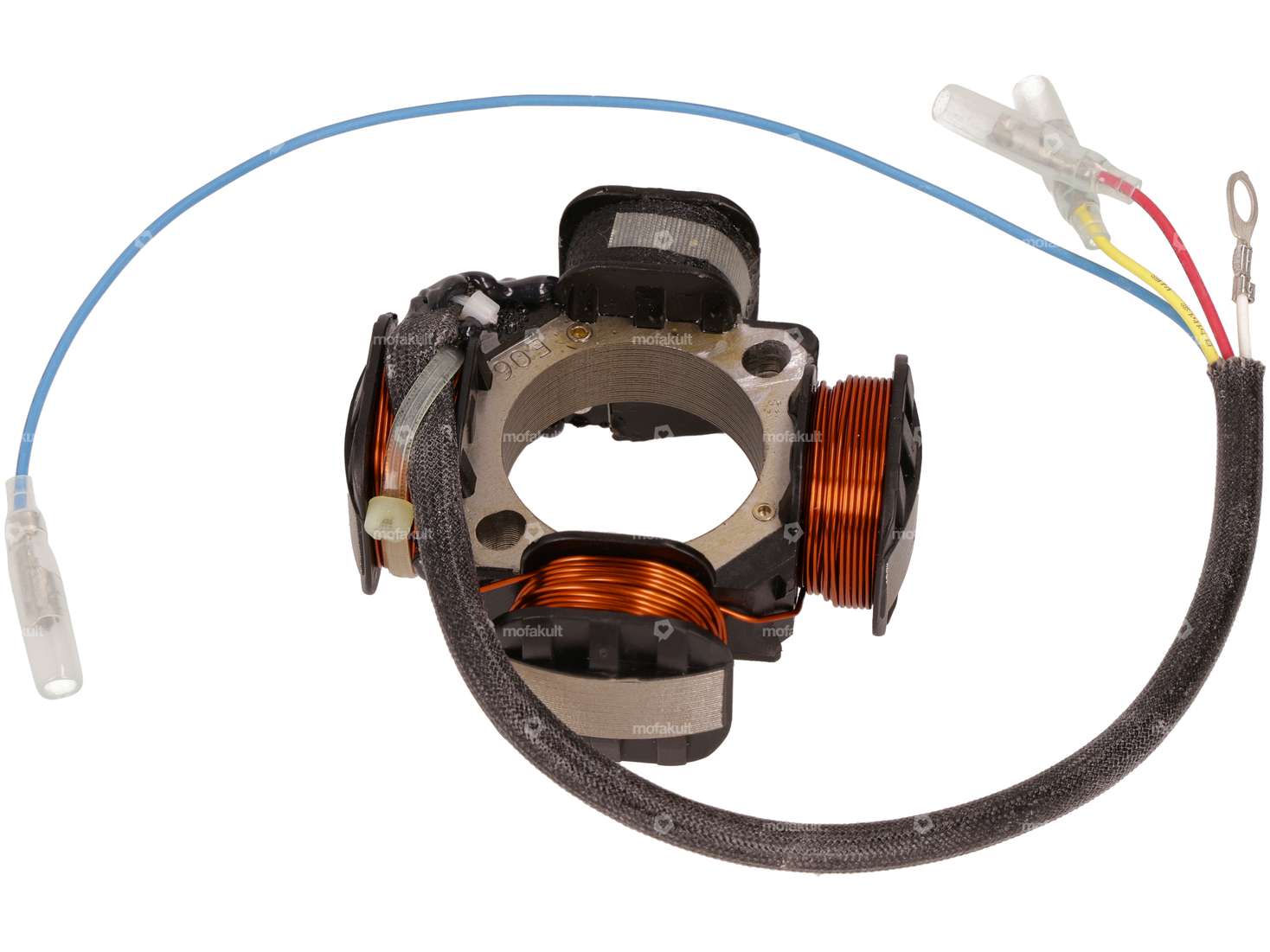

Electronic Polini EVO ignition with 12V voltage and 90W light output, suitable for your Piaggio Ciao, Si, Bravo and Boxer moped / moped with an engine housing for electronic ignitions.
The Polini ignition was developed together with the other EVOLUTION parts, but also fits on racing gears from other manufacturers.
| Manufacturer | Polini |
| Ø Internal flywheel | 80.5 mm |
| Light coil voltage | 12 V |
| Area of application | High End, Tuning, Racing |
| Performance | 90 W |
| Direction of rotation | right |
| Ø Flywheel outside | 105 mm, 138.5 mm |
| Number of fixing points | 2 pcs |
| Weight | 554 g |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
Ratings
Accessories & related products
Polini EVO REED crankshaft 12 mm KoBo | Piaggio Ciao, SI, Bravo, Grillo
Manufacturer: Polini · Weight: 784 g · Area of application: High End · Area of application: Racing · Material: Steel · Area of application: Tuning · Cheek type: Full cheeks · Thread type: MF10x1.25 (fine pitch thread) · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 91.5 mm · Total length crankpin ignition side: 105 mm · Ø crank webs: 70 mm · Thread length: 14 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 32.6 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44.7 mm · Length 3rd paragraph: 64 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm
CHF 289.90
Polini 47 mm cylinder kit EVO 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Material: Gray cast iron · Area of application: High End · Camouflaged: No · Area of application: Tuning · Displacement: 75 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 47 mm · Ø cylinder neck: 49.8 mm · Ø Outlet outside: 22 mm · Ø Outlet outside: 27 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Hole spacing outlet: 23 mm · Hole spacing outlet: 38 mm · Hole pattern [mm]: 43 x 52 · Thread outlet: M5x0.8 (standard thread) · Decompressor: Yes
CHF 279.90
Polini CP 21 mm carburetor & air filter (hand choke) | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Material: Aluminum · Area of application: Racing · Area of application: Tuning · Component group Carburetor: Carburetor complete · Mounting type: Rubber sleeve · Carburetor type: CP · Nominal diameter: 21 mm · Ø fuel hose connection: 6 mm · Ø fuel hose connection: 7 mm · Ø Inside entrance: 42 mm · Total length: 71 mm · Ø Output inside: 22.5 mm · Height: 122 mm · Ø Air filter connection: 47 mm · Width: 66 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle block: 35-12 · Camouflaged: No · Nozzle size: 82 · Nozzle size: 84 · Nozzle size: 86 · Size of secondary nozzle: 40
CHF 169.90
Hot
Polini EVO exhaust (27 mm connection) | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Material: Aluminum · Material: Steel · Surface: blank · Surface: varnished · Color: black-matt · Color: graphite colors · Mounting type: Tab for screwing · Ø Silencer: 60 mm · Ø outside: 83 mm · Ø Internal connection: 27 mm · Total length: 750 mm · Ø Flame tube outside: 27 mm · Exhaust type: Cone / double cone · Number of fixing points: 2 pcs · Flame tube attachment: Plug connection
CHF 249.90

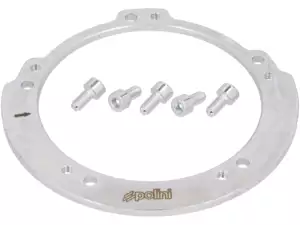

Polini additional weight 110 g EVO ignition & rotary valve shaft | Piaggio Ciao, SI, Bravo, Boxer
