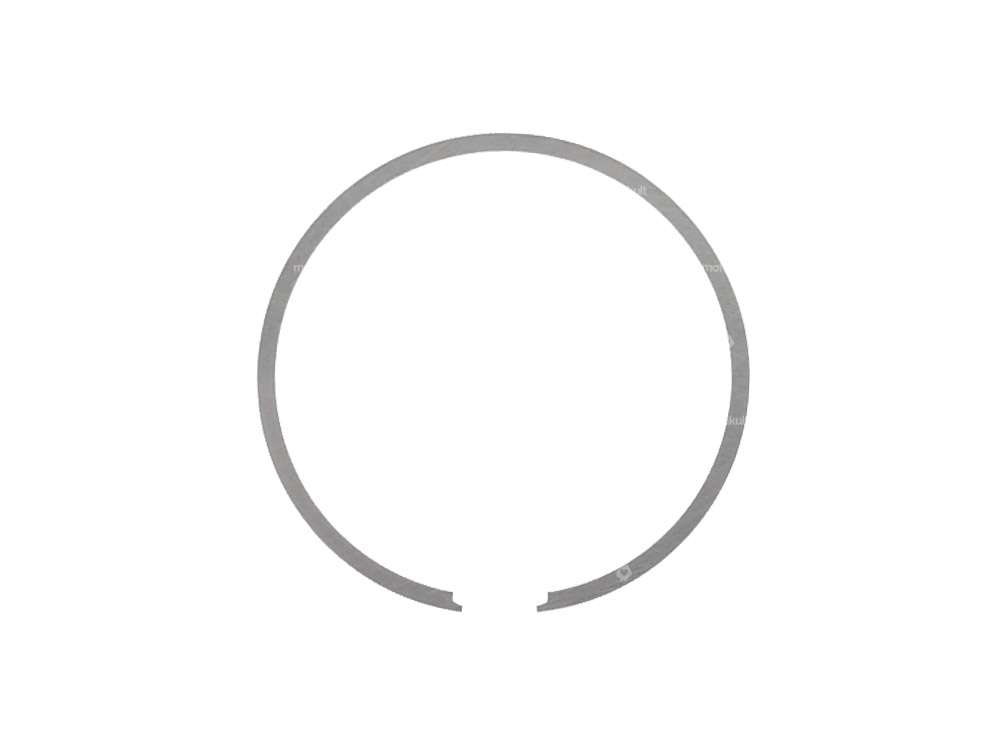

Original 40.0 x 1.42 mm compression ring (trapezoidal ring) suitable for Beta pistons on Pony Cross & GTX mopeds / mopeds with Beta 521 engines.
Attention: Only suitable for original Beta pistons, if a Meteor piston is installed, the Meteor piston ring 40 x 1.5 must be used, you will find this in the accessories section.
Installation note: The one-sided trapezoidal piston ring must be installed with the slanted side facing the cylinder head. If it is installed upside down, the ring will jam in the piston ring groove, resulting in damage to the piston and cylinder!

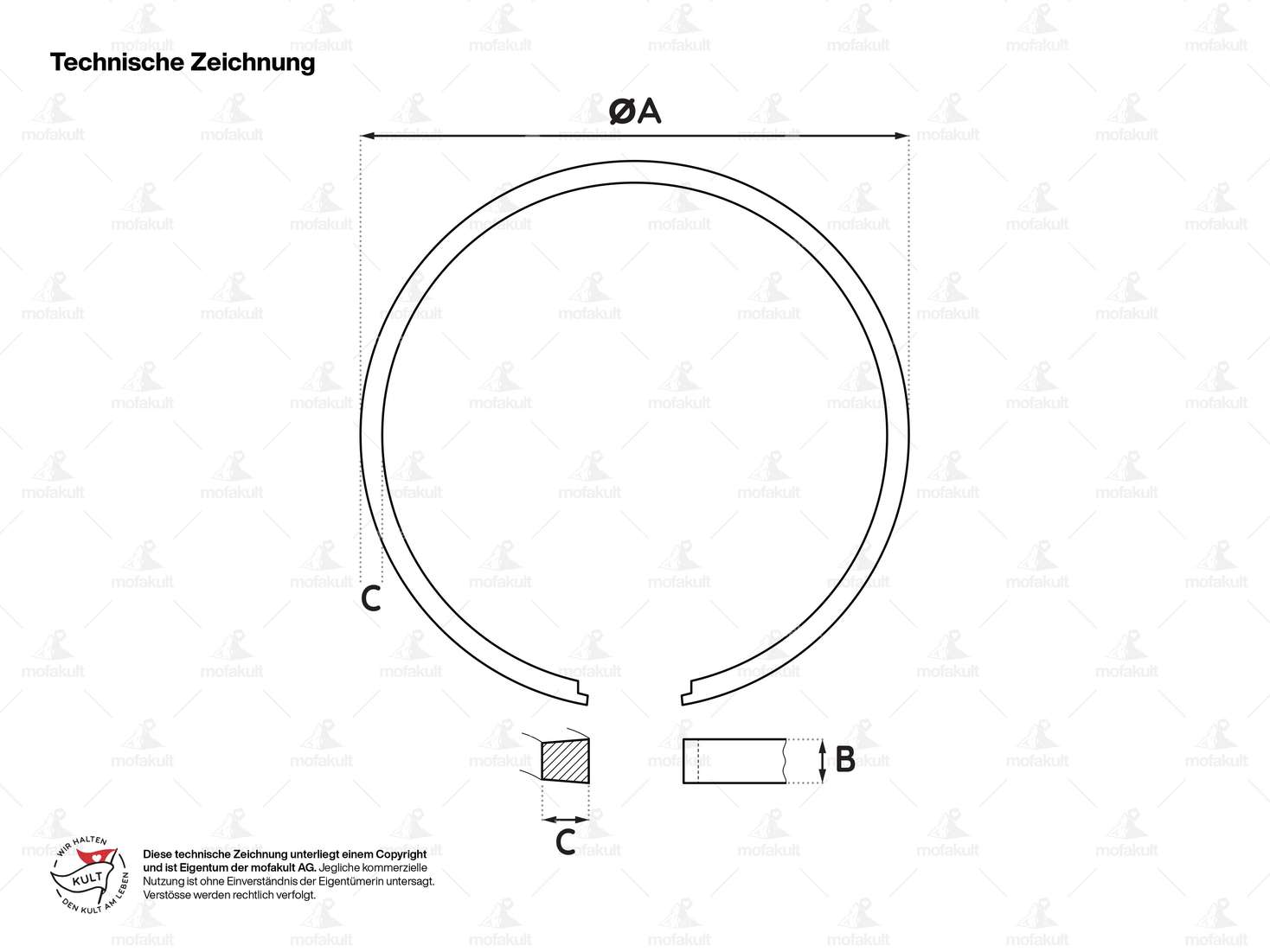

Ø outer (A): 40.00 mm
Height (B): 1.42 / nominal dimension 1.5 mm
Thickness (C): 1.60 mm
Piston ring shape: Trapezoidal ring

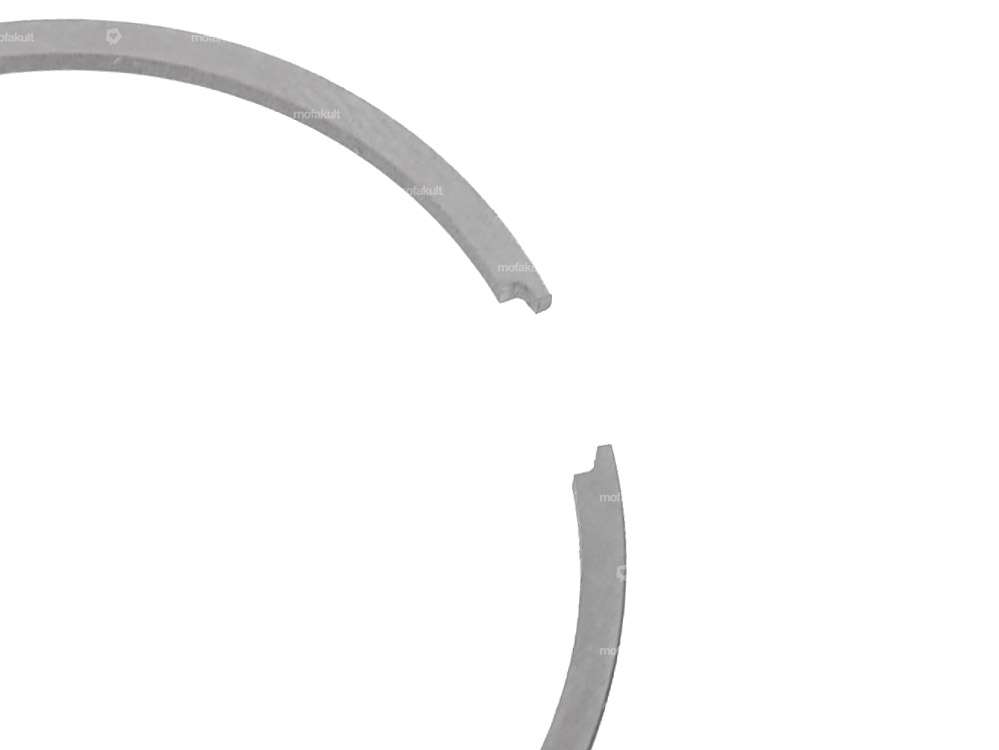

Piston ring joint: Internal locking (IS)
The scope of delivery corresponds to one piece.
You will find the appropriate assembly tool and lubricant in the accessories section.
Original Pony spare part number: A8112
| Nominal diameter | 40 mm |
| Manufacturer | Pony |
| Height | 1.42 mm |
| Piston ring mold | Trapezoidal ring |
| Piston ring impact | Internal fuse (IS) |
| Thick piston ring | 1.6 mm |
| Area of application | Original |
| Pony / Cilo (Beta 521 & 512) | Beta 512 Beta 521 (engine) |
