logo_olympia

For: Piaggio

18989

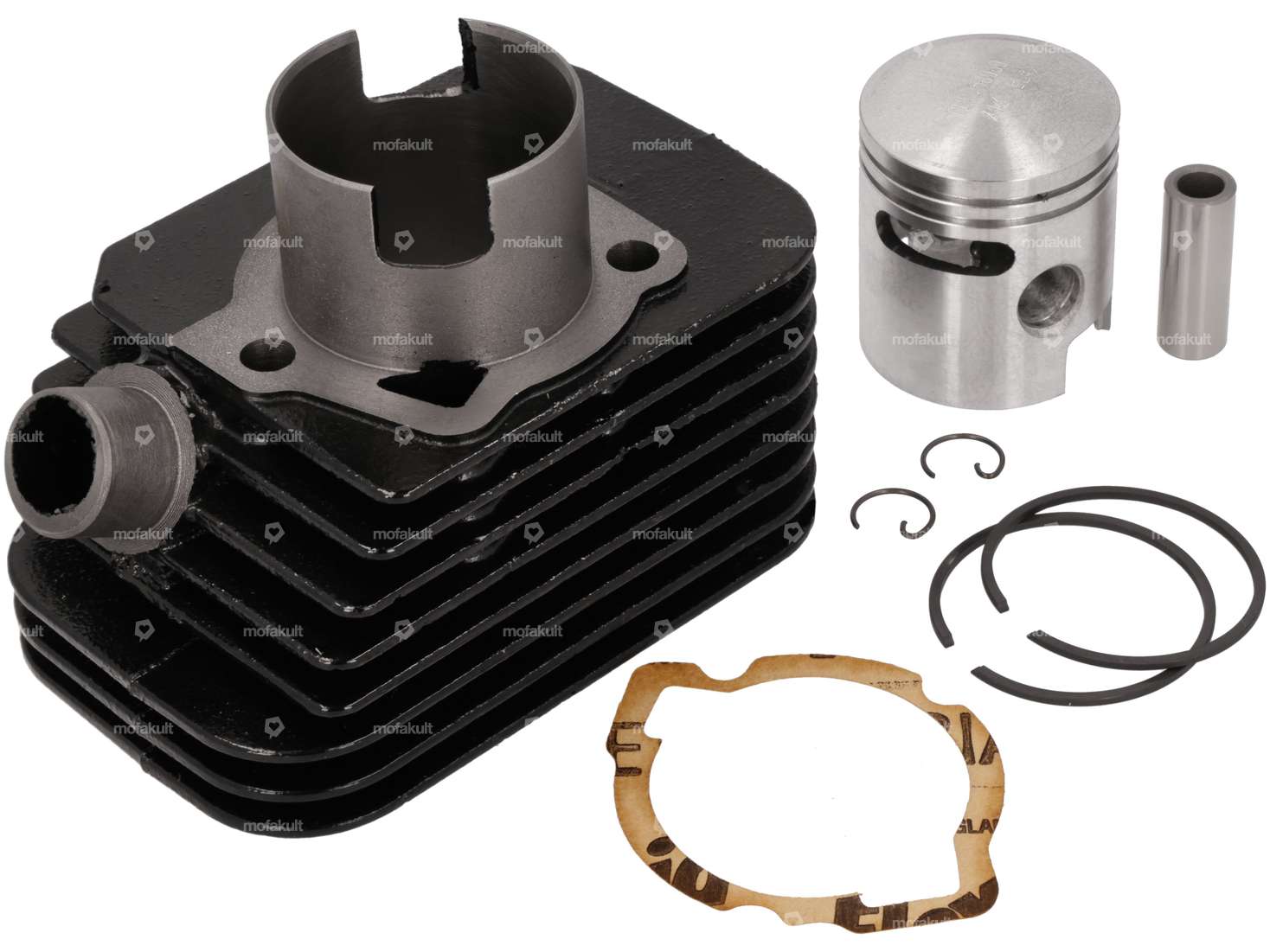

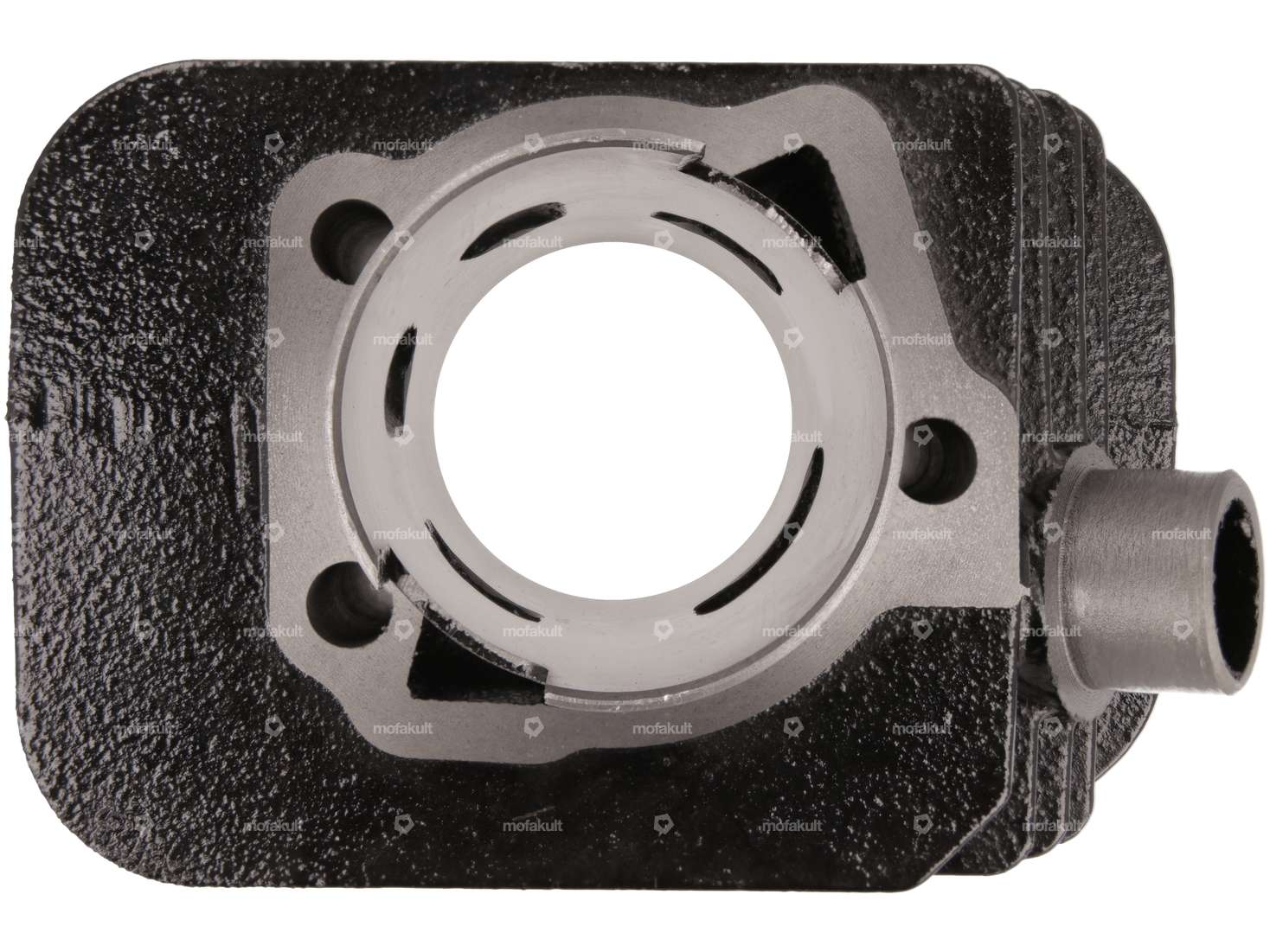

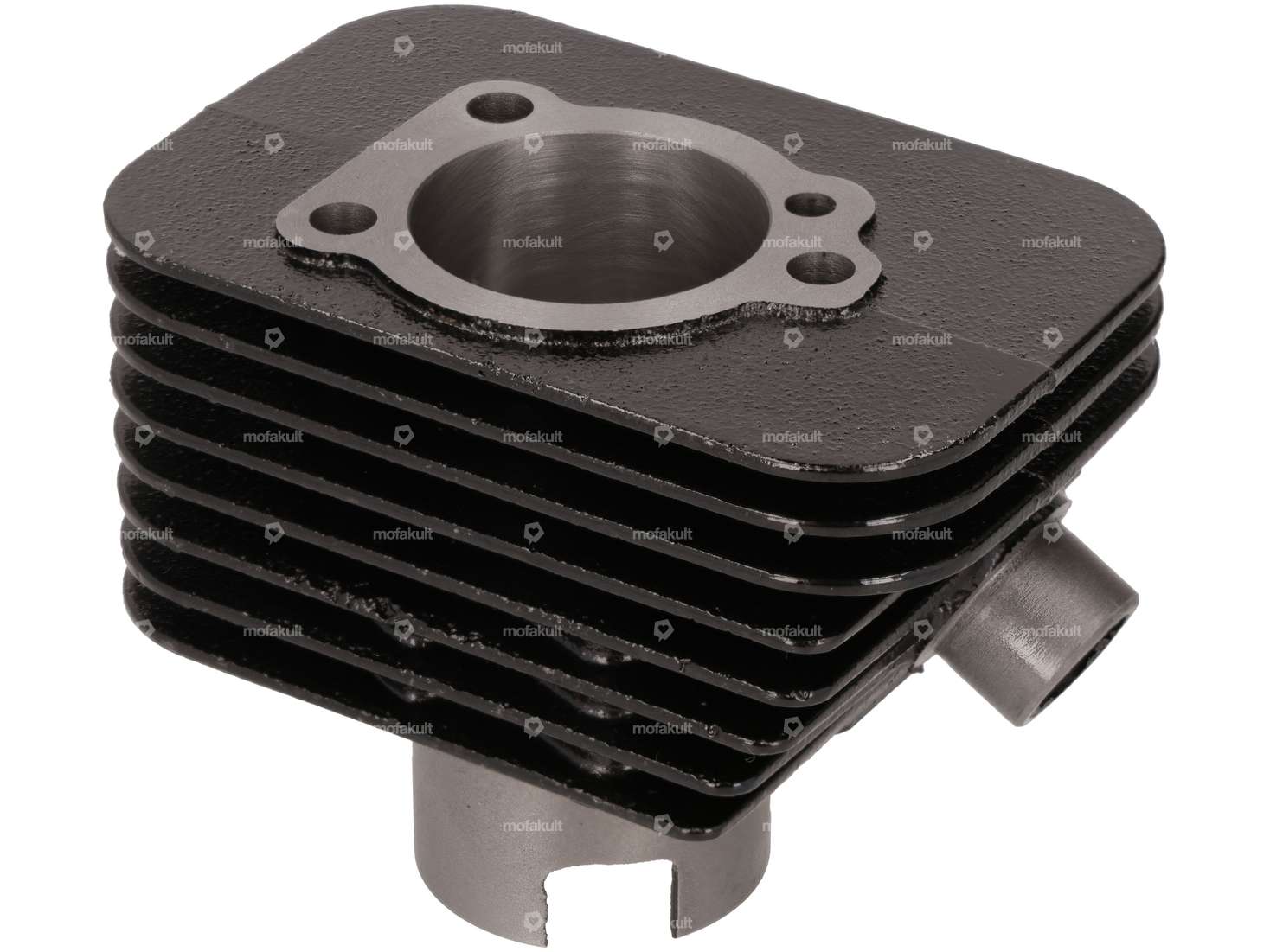

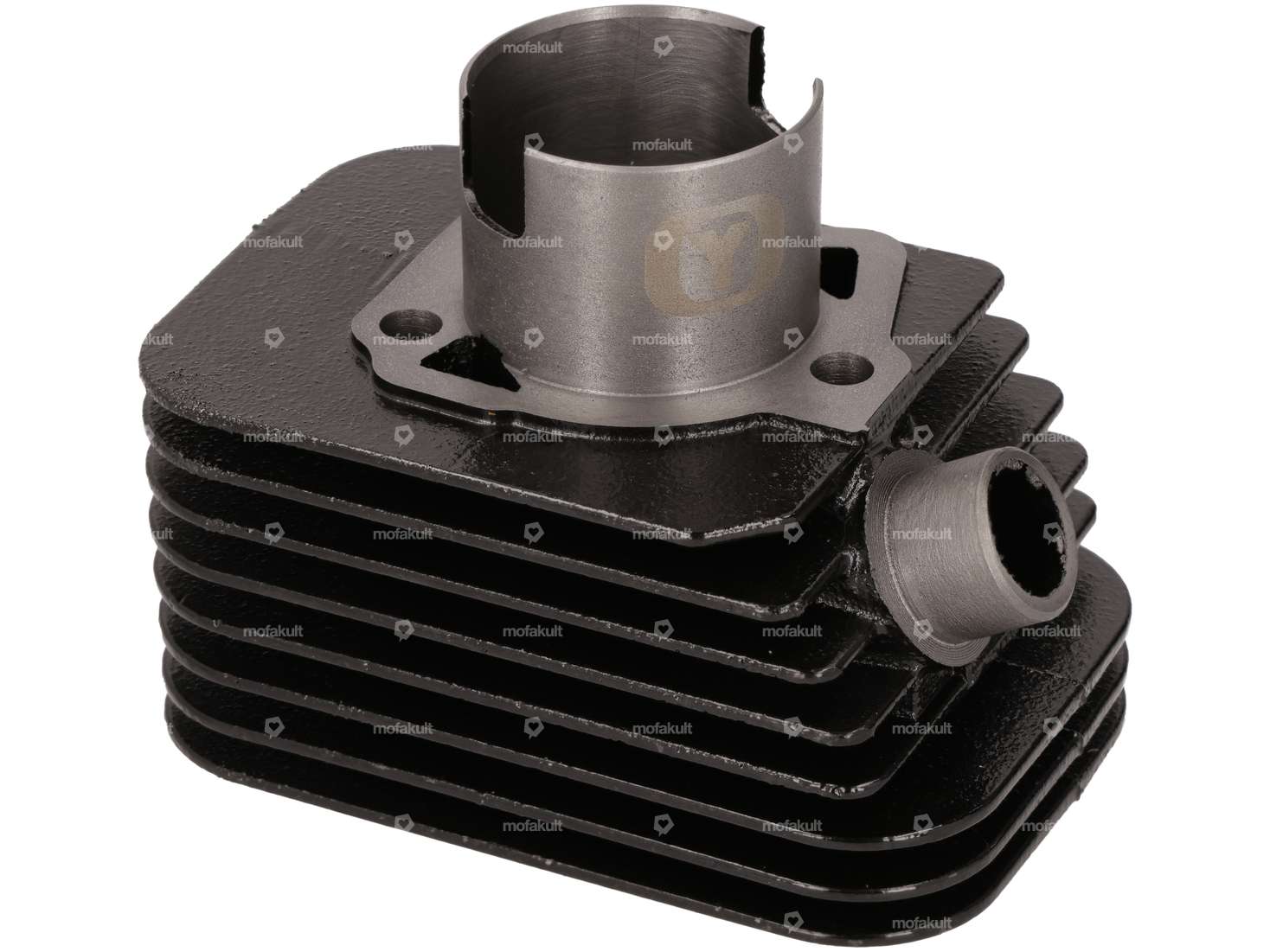

Olympia 43 mm cylinder kit 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

rating iconrating iconrating iconrating iconrating icon
No reviews
CHF 132.90

Incl. 8.1% VAT.

Description

43 mm tuning cast cylinder with 63 cc and 12 mm KoBo suitable for your Piaggio moped / moped.

With the exception of the cylinder head, all parts required for assembly are included in the scope of delivery.

Notes: We recommend using this tuning cylinder in conjunction with a larger exhaust and a larger carburetor. This racing cylinder may still have residue from the manufacturing process. Therefore, the cylinder should be cleaned with compressed air or brake cleaner before installation.
Before installation, check the piston ring joint using a blade gauge. This should be between 0.15 - 0.4 mm to prevent the piston from jamming. Please observe the installation direction when assembling. The piston is inserted with the arrow pointing towards the outlet on the exhaust side.

ManufacturerOlympia
MaterialGray cast iron
Area of applicationTuning
Surfacevarnished
Displacement63 ccm
Crankshaft stroke43 mm
Nominal diameter43 mm
Ø piston pin (B)12 mm
Ø cylinder neck46 mm
Ø Outlet outside22.3 mm
Number of fixing points3 pcs
Outlet typeclamped
DecompressorYes
CamouflagedNo
Piaggio

Ciao - P , SC , PX , C24

Si

Bravo / Super Bravo

Boxer

Grillo

Accessories & related products

Inox
Nut M7 Inox

Universal

10886

Nut M7 Inox

Height: 5.5 mm · Material: Chrome steel (colloquially known as stainless steel) · Nut type: Hexagon nut · Drive: External hexagon · Thread type: M7x1 (standard thread) · Width across flats: 11 mm · Nominal diameter (thread): 7 mm · Piaggio OEM number: 020107, 1107, 226745

CHF 2.40

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)
undefined

Universal

15357

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

CHF 19.90

CHF 19.90/l

DR 43 mm cylinder kit 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
undefined

For: Piaggio

16602

DR 43 mm cylinder kit 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: DR Racing Parts · Material: Gray cast iron · Camouflaged: No · Surface: varnished · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 46 mm · Ø Outlet outside: 22.3 mm · Ø outlet inside: 18 mm · Hole pattern [mm]: 55 x 34 · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Area of application: Tuning · Decompressor: Yes

CHF 142.90

Olympia cylinder head for 41 - 43 mm cylinder | Piaggio Ciao
undefined

For: Piaggio

18870

Olympia cylinder head for 41 - 43 mm cylinder | Piaggio Ciao

Manufacturer: Olympia · Width: 78 mm · Height: 60 mm · Material: Aluminum · Area of application: Racing · Area of application: Tuning · Ø cylinder: 41 - 43 mm · Total length: 120 mm · Number of fixing points: 3 pcs · Candle thread: short

CHF 25.90

Olympia cylinder head for 41 - 43 mm cylinder | Piaggio SI
undefined

For: Piaggio

18871

Olympia cylinder head for 41 - 43 mm cylinder | Piaggio SI

Manufacturer: Olympia · Ø cylinder: 41 - 43 mm · Area of application: Racing

CHF 25.90

Malossi 43 mm cylinder kit 12 mm KoBo new version | Piaggio Ciao, SI, Boxer, Bravo
undefined

For: Piaggio

18880

Malossi 43 mm cylinder kit 12 mm KoBo new version | Piaggio Ciao, SI, Boxer, Bravo

Manufacturer: Malossi · Material: Gray cast iron · Camouflaged: No · Surface: sandblasted · Area of application: Tuning · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.4 mm · Nominal diameter: 43 mm · Ø outlet inside: 18.3 mm · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 55 x 34 · Decompressor: Yes

CHF 144.90

Not in stock

Polini 43 mm cylinder kit without head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
undefined

For: Piaggio

18922

Polini 43 mm cylinder kit without head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Gray cast iron · Camouflaged: No · Surface: sandblasted · Area of application: Tuning · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45.8 mm · Ø Outlet outside: 22.6 mm · Nominal diameter: 43 mm · Ø outlet inside: 18.4 mm · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 55 x 34 · Decompressor: Yes

CHF 184.90

Athena 43 mm cylinder kit without head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
undefined

For: Piaggio

19004

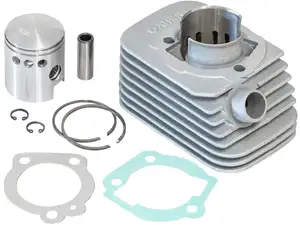

Athena 43 mm cylinder kit without head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
