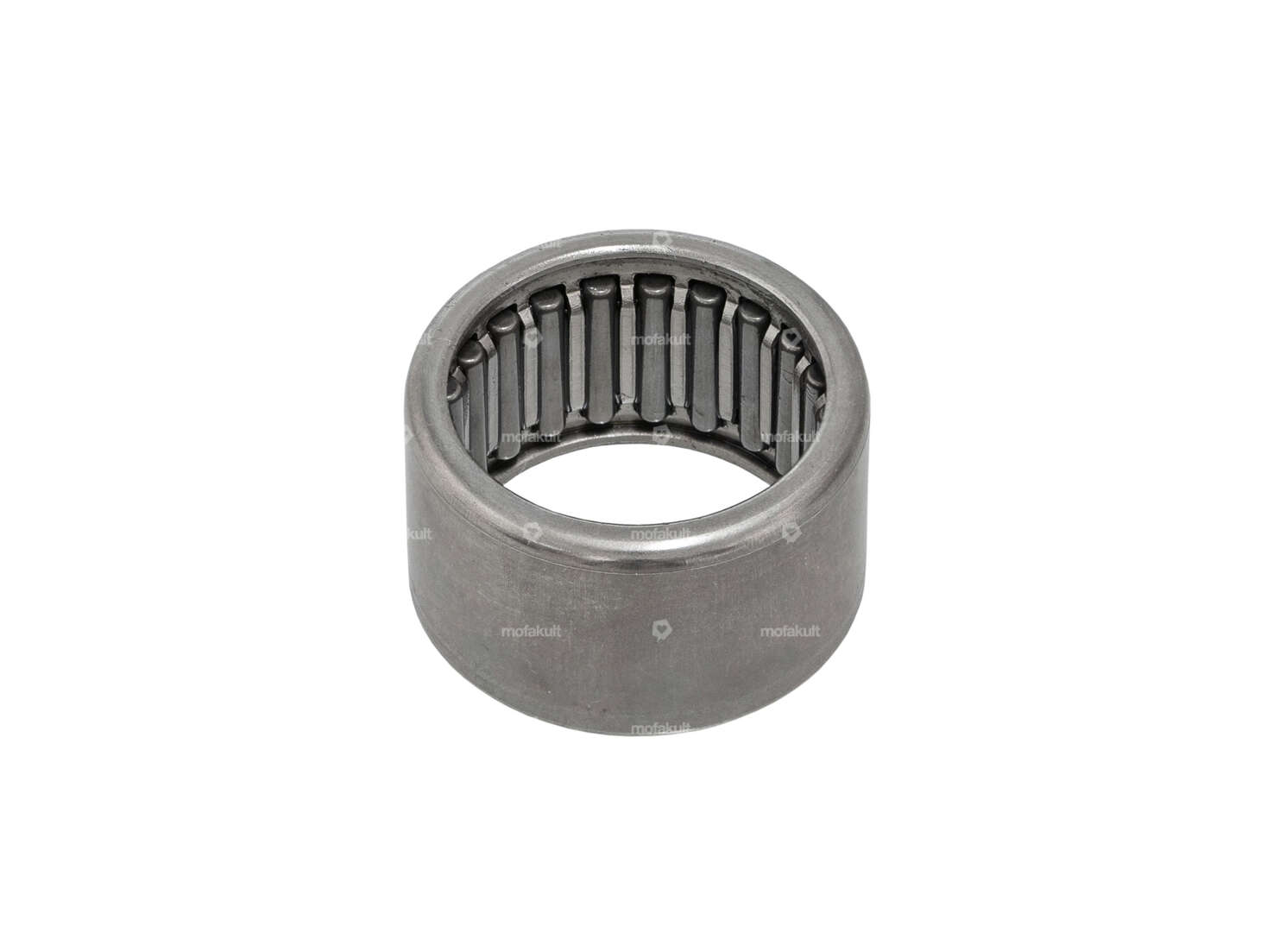

NTN needle roller bearing 16/20.7/13 pinion shaft | Tomos

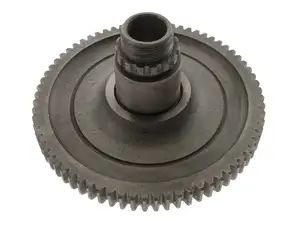

Main shaft 71 teeth | Tomos

Manufacturer: Tomos · Material: Steel · Toothing type: straight toothed · Recording type: Interlocking · Ø inside: 16 mm · Number of teeth: 71 pcs · Thread type: MF22x1 (fine pitch thread) · Tomos OEM number: 209066 · Tomos OEM number: 223453

NTN 6203 C3 Ball bearing 17/40/12

Manufacturer: NTN · Bearing cage: Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 12 mm · Bearing clearance: C3 · Groove ring: No · Material: Steel · Surface: blank · Bearing type: Deep groove ball bearing · Width: 12 mm · Ø inside: 17 mm · Ø outside: 40 mm · Ball bearing closed: No · Area of application: Standard

NSK 6201 ball bearing 12/32/10

Bearing cage: Sheet steel cage ball-guided · Stock number: 6201 · Inner ring width: 10 mm · Manufacturer: NSK · Bearing clearance: CM (special/noise-reduced) · Groove ring: No · Material: Steel · Surface: blank · Bearing type: Shoulder bearing · Width: 10 mm · Ø inside: 12 mm · Ø outside: 32 mm · Ball bearing closed: No · Area of application: Standard

swiing® revival nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Quantity: 10 pcs · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Total length: 8 mm

NTN 608 Ball bearing 8/22/7

Bearing cage: Sheet steel cage ball-guided · Stock number: 608 · Inner ring width: 7 mm · Manufacturer: NTN · Bearing clearance: CN (standard) · Bearing type: Deep groove ball bearing · Width: 7 mm · Ø inside: 8 mm · Ø outside: 22 mm

GUIA square headlight (white glass)

Manufacturer: GUIA · Bulb holder: BA20d · Color: black · Color: white · Switch included: No · Housing material: Plastic · Width: 141 mm · Height: 77 mm · Mounting type: Screws · Test mark: none · Speedometer recording: None · Battery operated: No · Number of fixing points: 2 pcs · Depth: 85 mm

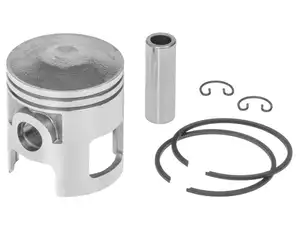

GPO piston 44 mm (12 mm KoBo) | Tomos A3/A35

Nominal diameter: 44 mm · Manufacturer: GPO · Ø outside piston (A): 43.96 mm · Compression height (C): 21.9 mm · Curvature (D): 4.15 mm · Total piston height (E): 49.55 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm

GPO oil seal set | Tomos A35

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: GPO · Material: NBR · Surface: rubberized · Width: 7 mm · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 35 mm · Ø outside: 24 mm · Ø outside: 35 mm · Ø outside: 47 mm

NTN Bearings & Oil Seals Engine | Tomos A35

Manufacturer: NTN · Number of components: 6 pcs · Area of application: Standard

Set of clutch shoes | Tomos Classic, Quadro, Sprint, Fun Sport'R

Number of jaws: 3 pcs · Thickness: 14.9 mm · Ø outside: 90 mm · Area of application: Standard · Tomos OEM number: 223432
