A set of compression rings consisting of a rectangular ring and an L-piston ring, suitable for Puch X30 Velux & NG-2 AH engines with Meteor pistons.

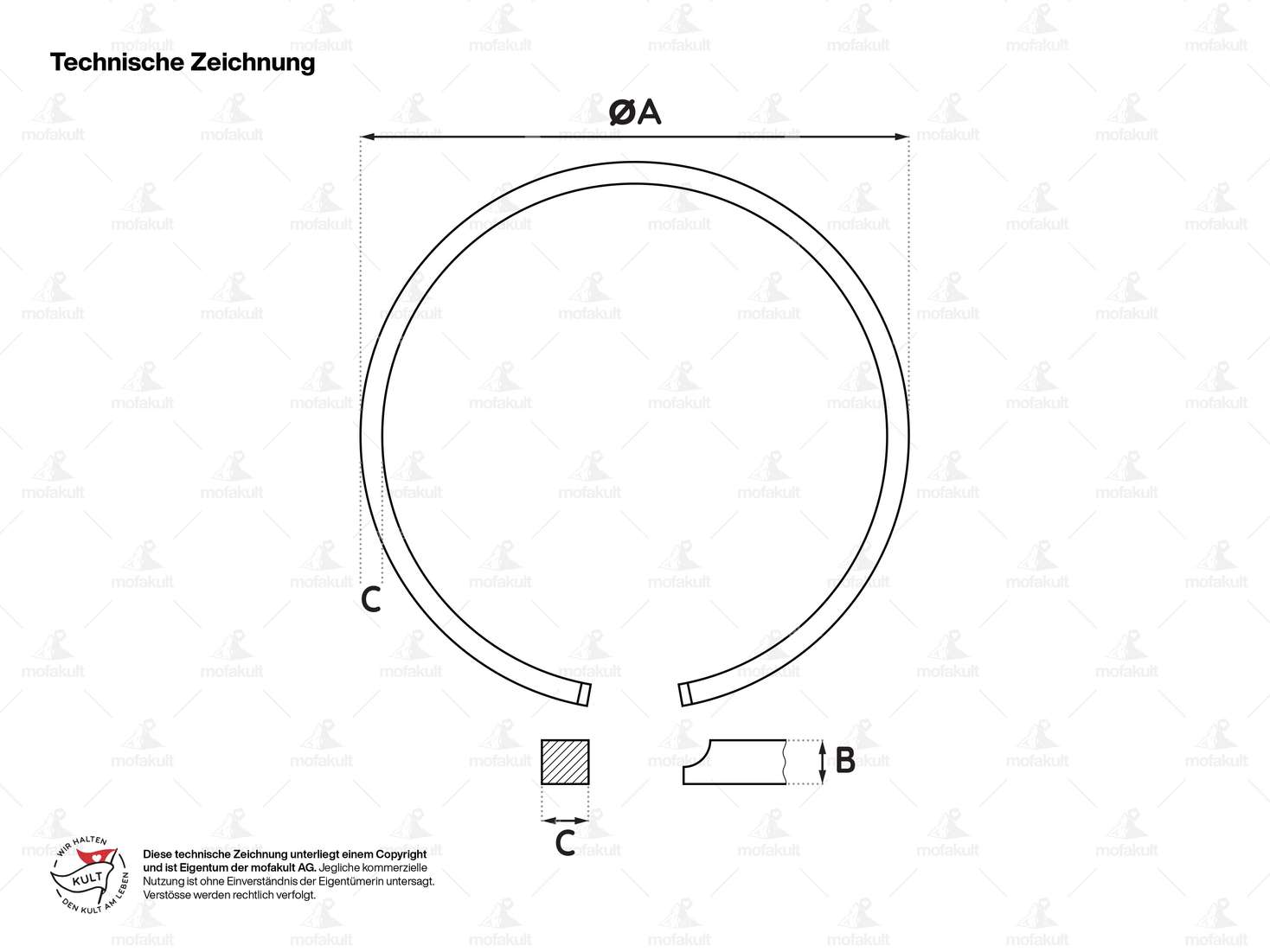

Dimension L-ring:
Ø outside (ØA): 42.50 mm
Height (B): 2.0 mm
Thickness (C): 1.85 mm
Piston ring shape: L-ring
Piston ring joint: Internal locking (IS)

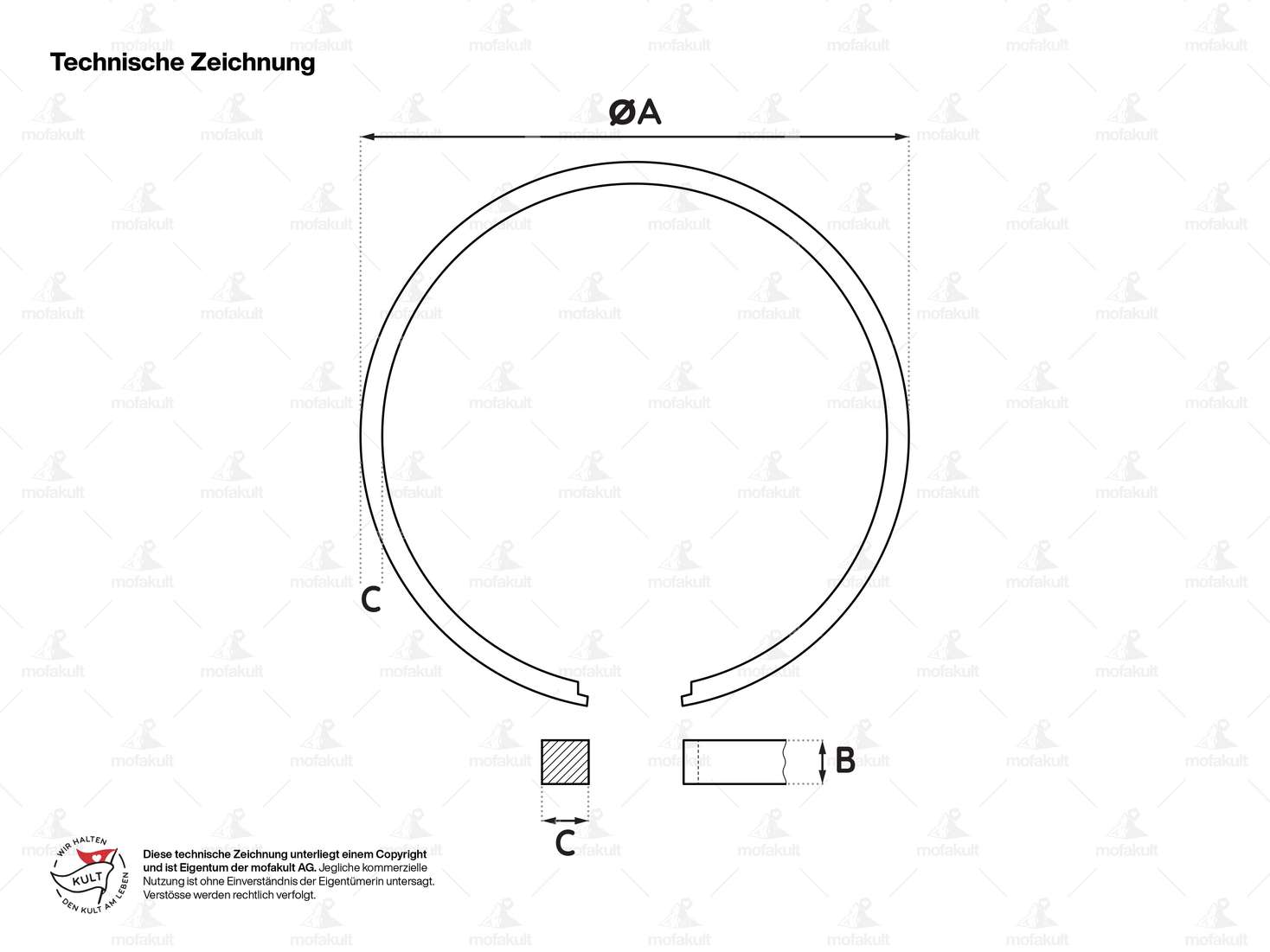

Size rectangular ring:
Ø outer (ØA): 42.50 mm
Height (B): 1.5 mm
Thickness (C): 1.75 mm
Piston ring shape: Rectangular ring
Piston ring butt: Flank lock (FS)
The scope of delivery corresponds to one pair.
Matching pistons, assembly tools and lubricant can be found in the accessories section.
Quality product from the Italian manufacturer Meteor.
Manufacturer: Meteor · Nominal diameter: 42.5 mm · Thick piston ring: 1.75 mm · Height: 1.5 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Diameter: 42.5 mm
Manufacturer: Meteor · Nominal diameter: 42.5 mm · Thick piston ring: 1.85 mm · Height: 2 mm · Piston ring mold: L-ring · Piston ring impact: Internal fuse (IS) · Diameter: 42.5 mm
| Manufacturer | Meteor |
| Diameter | 42.5 mm |
| Thick piston ring | 1.85 mm, 1.75 mm |
| Piston ring mold | L-ring, Rectangular ring |
| Nominal diameter | 42.5 mm |
| Piston ring impact | Internal fuse (IS), Flank safety device (FS) |
| Height | 2 mm, 1.5 mm |
| Puch | ZA50 (fan-cooled) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
Ratings
Accessories & related products
GPO gasket set 40 - 41 mm cylinder fan-cooled | Puch X30 NG-2AH, Velux
Manufacturer: GPO · Area of application: Tuning · Ø cylinder: 40 mm · Ø cylinder: 41 mm · Ø outlet inside: 22 mm · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Number of components: 4 pcs · Decompressor: Yes
CHF 8.90
GPO 41 mm cylinder kit fan-cooled 10 mm KoBo | Puch X30 Velux, NG-2AH
Manufacturer: GPO · Manufacturer: Meteor Racing · Camouflaged: No · Crankshaft stroke: 43 mm · Displacement: 60 ccm · Nominal diameter: 41 mm · Material: Gray cast iron · Hole spacing inlet: 32 mm · Surface: sandblasted · Ø piston pin (B): 10 mm · Hole spacing outlet: 42 mm · Thread inlet: M6x1 (standard thread) · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Outlet type: straight · Thread outlet: M6x1 (standard thread)
CHF 109.90
GPO 41 mm cylinder kit fan-cooled 12 mm KoBo | Puch X30 Velux, NG-2AH
Manufacturer: GPO · Manufacturer: swiing® revival parts · Material: Gray cast iron · Camouflaged: No · Surface: sandblasted · Area of application: Tuning · Displacement: 60 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 41 mm · Ø cylinder neck: 43.2 mm · Ø outlet inside: 19.4 mm · Ø Inlet inside: 14.6 mm · Number of fixing points: 4 pcs · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Outlet type: straight · Thread outlet: M6x1 (standard thread)
CHF 109.90

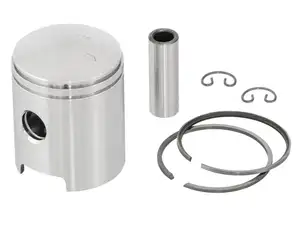

Meteor piston 42.5 mm (10 mm KoBo) oversize | Puch X30 Velux
