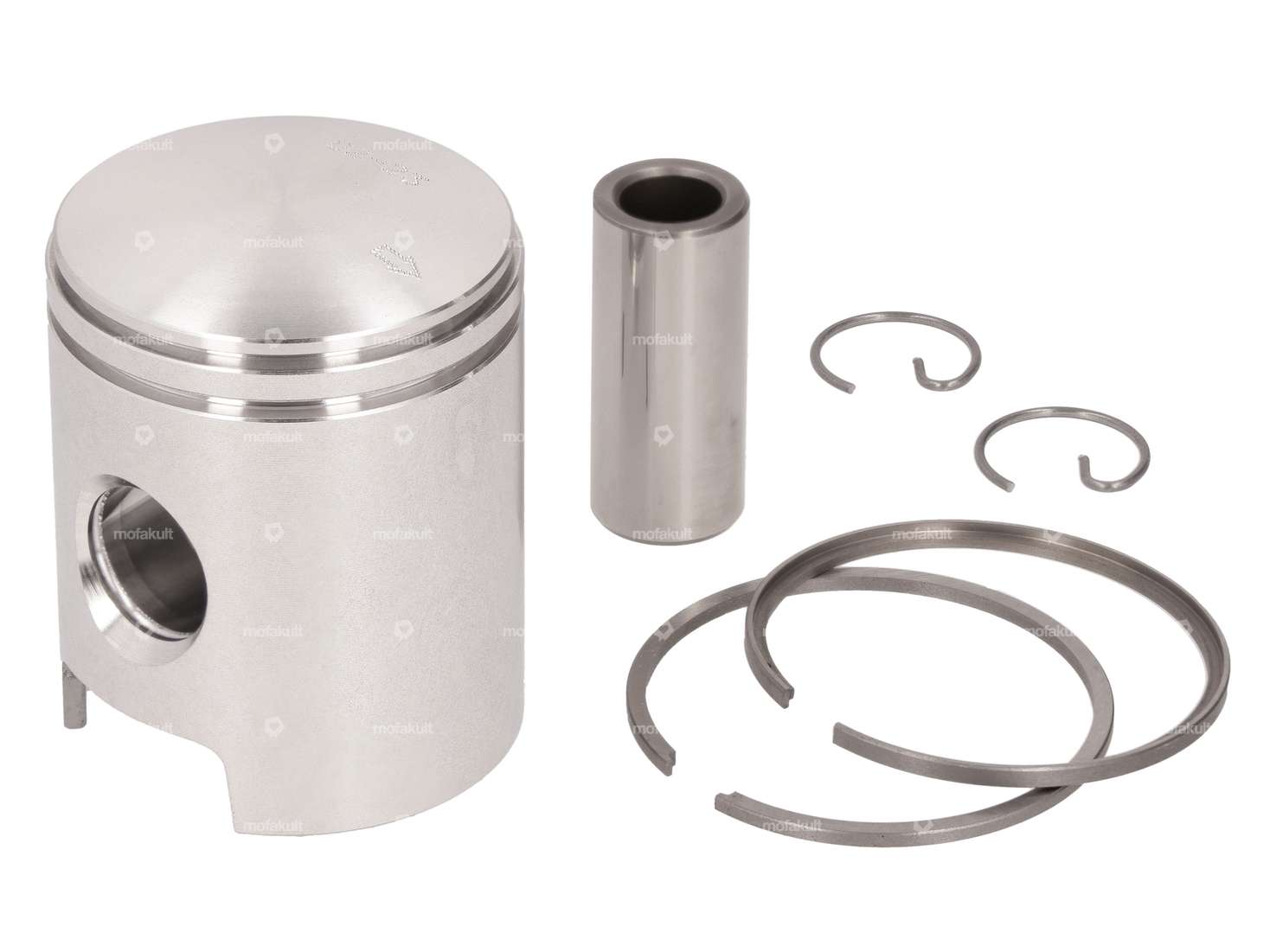

40.0 mm replacement piston with a 2 mm L-shaped piston ring with internal circlip (IS) and a 1.5 mm rectangular piston ring with internal circlip (IS) suitable for Kreidler Florett RS small engine bikes with 40 mm cylinder.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.
Tolerance type: E
The piston kit contains piston pins, piston clips and piston rings.
You will find the appropriate assembly tools, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Meteor.
| Nominal diameter | 40 mm |
| Manufacturer | Meteor |
| Ø outside piston (A) | 39.97 mm |
| Compression height (C) | 27 mm |
| Curvature (D) | 3 mm |
| Total piston height (E) | 51 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring, L-ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm, 2 mm |
| Ø piston pin (B) | 14 mm |
| Tolerance group | E |
| Weight piston kit | 99 g |
| Kreidler |
Ratings
Accessories & related products
Meteor piston 39.95 mm (14 mm KoBo) A | Kreidler Florett RS
Nominal diameter: 40 mm · Manufacturer: Meteor · Ø outside piston (A): 39.95 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 14 mm · Tolerance group: A · Weight piston kit: 99 g
CHF 59.90
Meteor piston 39.955 mm (14 mm KoBo) B | Kreidler Florett RS
Nominal diameter: 40 mm · Manufacturer: Meteor · Ø outside piston (A): 39.955 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 14 mm · Tolerance group: B · Weight piston kit: 100 g
CHF 59.90
Meteor piston 39.96 mm (14 mm KoBo) C | Kreidler Florett RS
Nominal diameter: 40 mm · Manufacturer: Meteor · Ø outside piston (A): 39.96 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 14 mm · Tolerance group: C · Weight piston kit: 100 g
CHF 59.90
Meteor piston 39.965 mm (14 mm KoBo) D | Kreidler Florett RS
Nominal diameter: 40 mm · Manufacturer: Meteor · Ø outside piston (A): 39.965 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 14 mm · Tolerance group: D · Weight piston kit: 100 g
CHF 59.90
Meteor piston 39.975 mm (14mm KoBo) F | Kreidler Florett RS
Nominal diameter: 40 mm · Manufacturer: Meteor · Ø outside piston (A): 39.975 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 14 mm · Tolerance group: F · Weight piston kit: 99 g
CHF 59.90
Not in stock
Meteor piston 38 mm (14 mm KoBo) B | Sachs 50
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.96 mm · Compression height (C): 28 mm · Curvature (D): 2 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 14 mm · Tolerance group: B · Weight piston kit: 86 g
CHF 62.90
Explore categories from Piston
Moped fans also bought
Elring Dirko HT sealing compound red (silicone) high temp. 70 ml elastic up to 315°C
Manufacturer: Elring · Contents: 70 ml · Color: red · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Area of application: Chemistry · Temperature resistance (min.): -60 - 300 °C · Gap dimension (max.): 2 mm
CHF 22.90
CHF 327.14/l

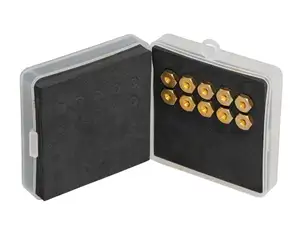

Nozzle set M6 (76 - 94) Bing SLH
