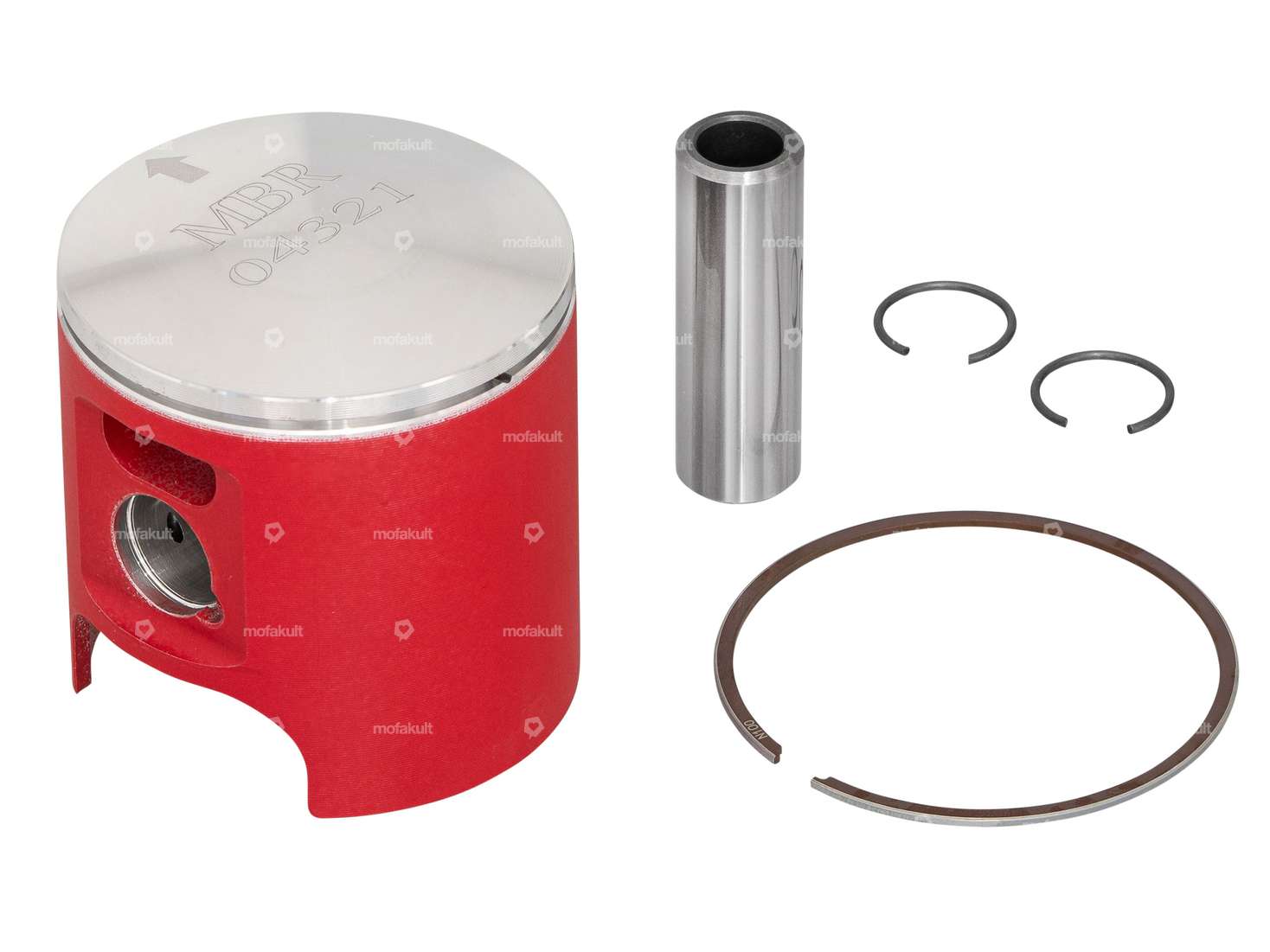

Forged Wössner high-performance piston for the 47 mm Gilardoni italkit Puch cylinder kit when operated with a housing-membrane inlet (GME).
Attention, the piston cannot be used for conventional Gilardoni italkit cylinders which are operated with cylinder diaphragm inlet (ZME).
GME forged piston developed by MBR with a 1 mm rectangular piston ring with internal locking (IS), which is very often used in the Mofacross / Mofacup scene.
Optimal material structure, flow-optimized shape and large lubrication pockets above the piston pin characterize this high-quality racing piston.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the common piston rings, their stems and locking types on the legend in the images.
The molybdenum coating in combination with oil provides technologically advanced wear protection with outstanding sliding properties.
Recommended piston size (coating corresponds to +0.01 mm to +0.02 mm):
Gilardoni italkit cylinder A (47.00 mm): 46.94 mm piston (in exceptional cases, e.g. when using ASP®).e.g. when using ASPEN: 46.93 mm piston)
Gilardoni italkit cylinder B (47.01 mm): 46.95 mm piston
Gilardoni italkit cylinder C (47.02 mm): 46.96 mm piston
Gilardoni italkit cylinder D (47.03 mm): 46.97 mm piston
Piston ring, piston pin and piston pin retainers are included in the scope of delivery.
Matching add-on parts such as cylinder kits, needle bearings, stroke plates, carburettors, air filters etc. can be found under accessories.
| Nominal diameter | 47 mm |
| Manufacturer | Wössner, MBR |
| Ø outside piston (A) | 46.93 mm |
| Compression height (C) | 21.5 mm |
| Curvature (D) | 2.63 mm |
| Total piston height (E) | 48.15 mm |
| Number of piston rings (F) | 1 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1 mm |
| Ø piston pin (B) | 12 mm |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products
HOMOET exhaust P8 | Puch (slanted exhaust)
Ø outside: 88 mm · Color: black · Manufacturer: HOMOET · Total length: 915 mm · Material: Steel · Surface: varnished · Mounting type: Welded lug · Ø Silencer: 50 mm · Number of fixing points: 1 pcs · Ø Flame tube outside: 28 mm · Exhaust type: Cone / double cone · Ø Internal connection: 25 mm · Flame tube attachment: Flange
CHF 289.90
swiing® ingenious intake manifold Gilardoni italkit Inox
Ø inside: 21 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: No · Ø External connection: 24 mm · Mounting type: Screws · Hole pattern [mm]: 60 x 35 · Total length: 80 mm · Number of fixing points: 4 pcs · Total height: 55 mm · Height flange center hole: 42.5 mm · Area of application: Tuning
CHF 67.90
Not in stock

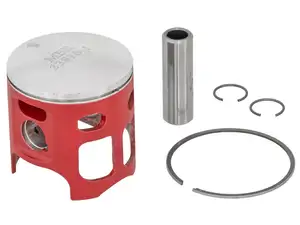

MBR piston 46.93 mm Gilardoni italkit | Puch
