Racing air filter with solid plastic housing and red foam insert.
The air filter has a centric connection, as shown in Figure 3.
Fits all Dell'Orto PHBG carburetors. Is screwed directly onto the thread of the carburetor.
Can therefore be fitted without any problems even in tight spaces.

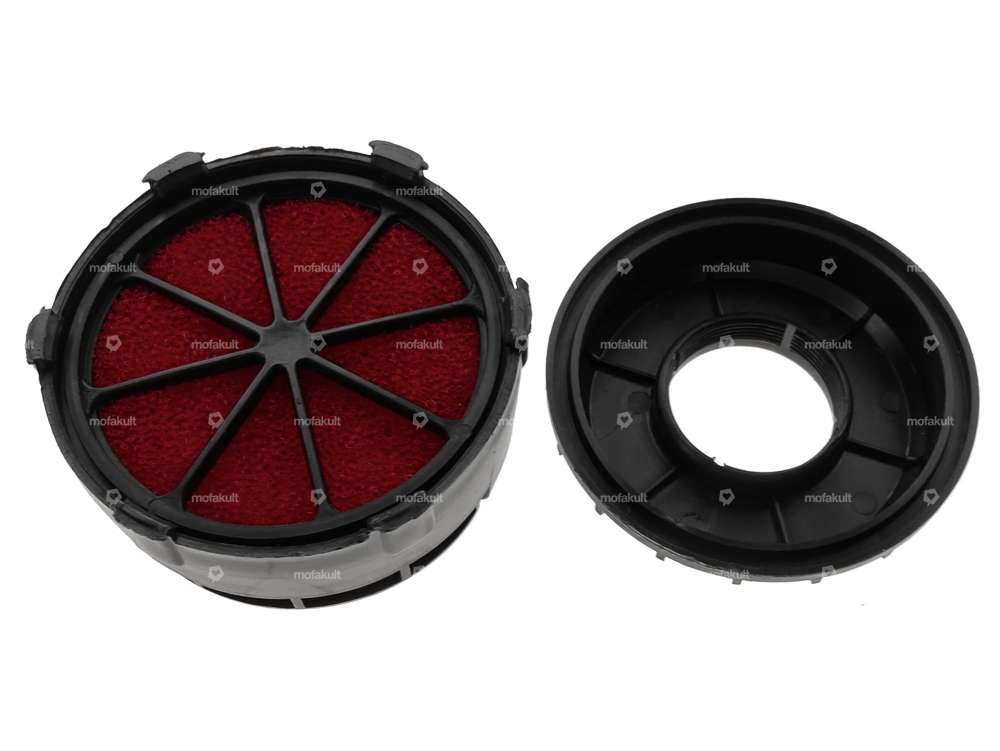

The housing can be easily opened to clean the filter.
Ø external air filter height: 80 mm
Height air filter height: 45 mm
Ø carburettor connection: 31 mm (with thread)
Quality product from the Italian manufacturer Malossi.
| Manufacturer | Malossi |
| Mounting type | Screws |
| Camouflaged | No |
| Color | black |
| Area of application | Tuning |
| Thread type | MF32x1.25 (fine pitch thread) |
| Ø outside | 80 mm |
| Height | 45 mm |
| Filter type | Foam |
| Ø Internal connection | 31 mm |
