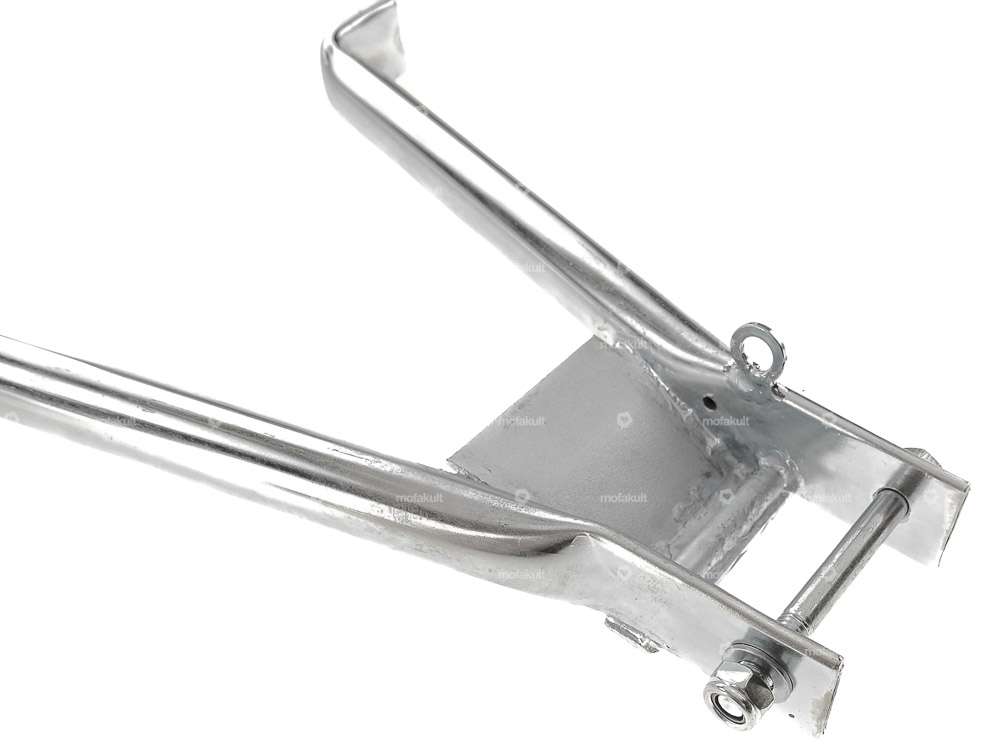

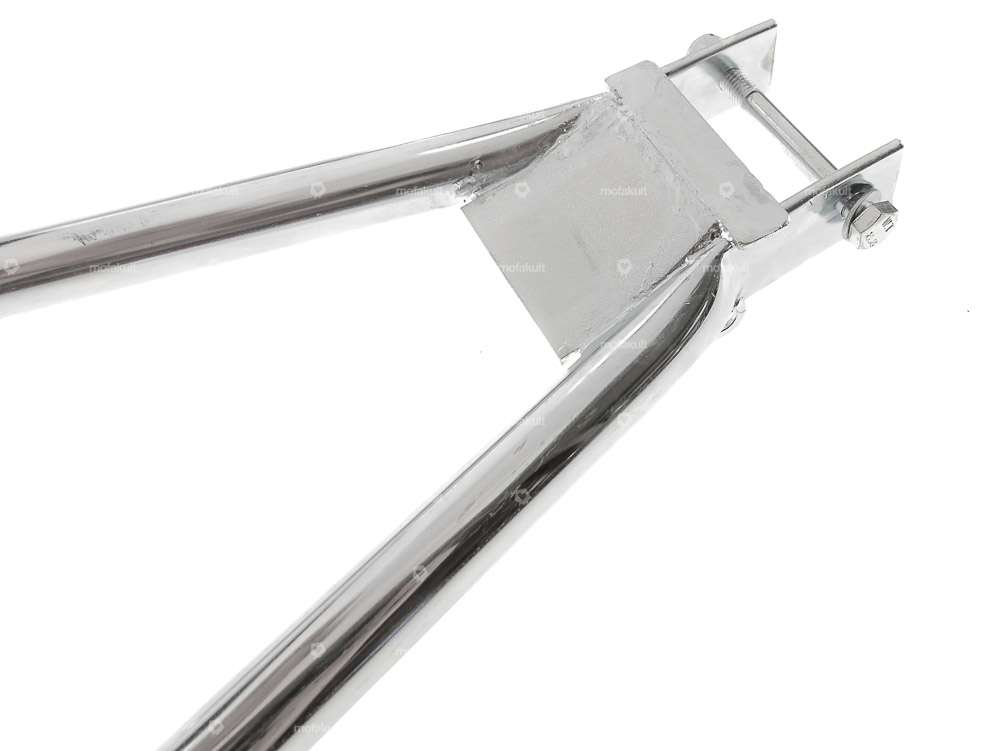

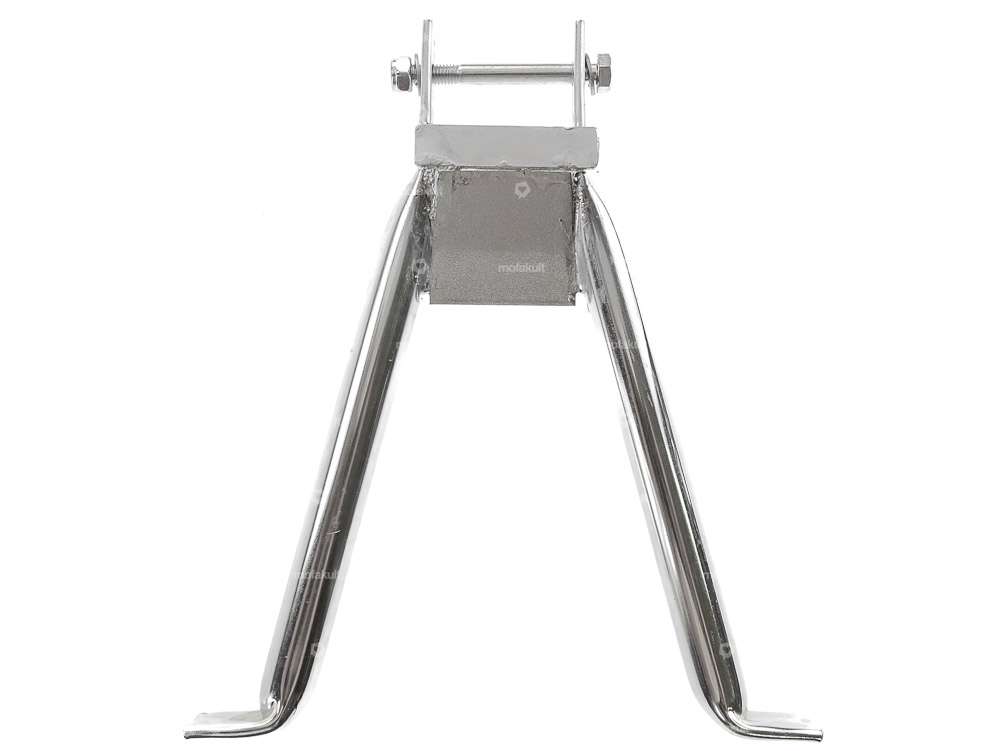

Main stem for Hercules 621 mopeds.
The special connecting bolt incl. washers and self-locking nut size M8 is included in the scope of delivery. The required rod spring is not included.
A quality product manufactured in Switzerland.
| Manufacturer | Made in Switzerland |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |

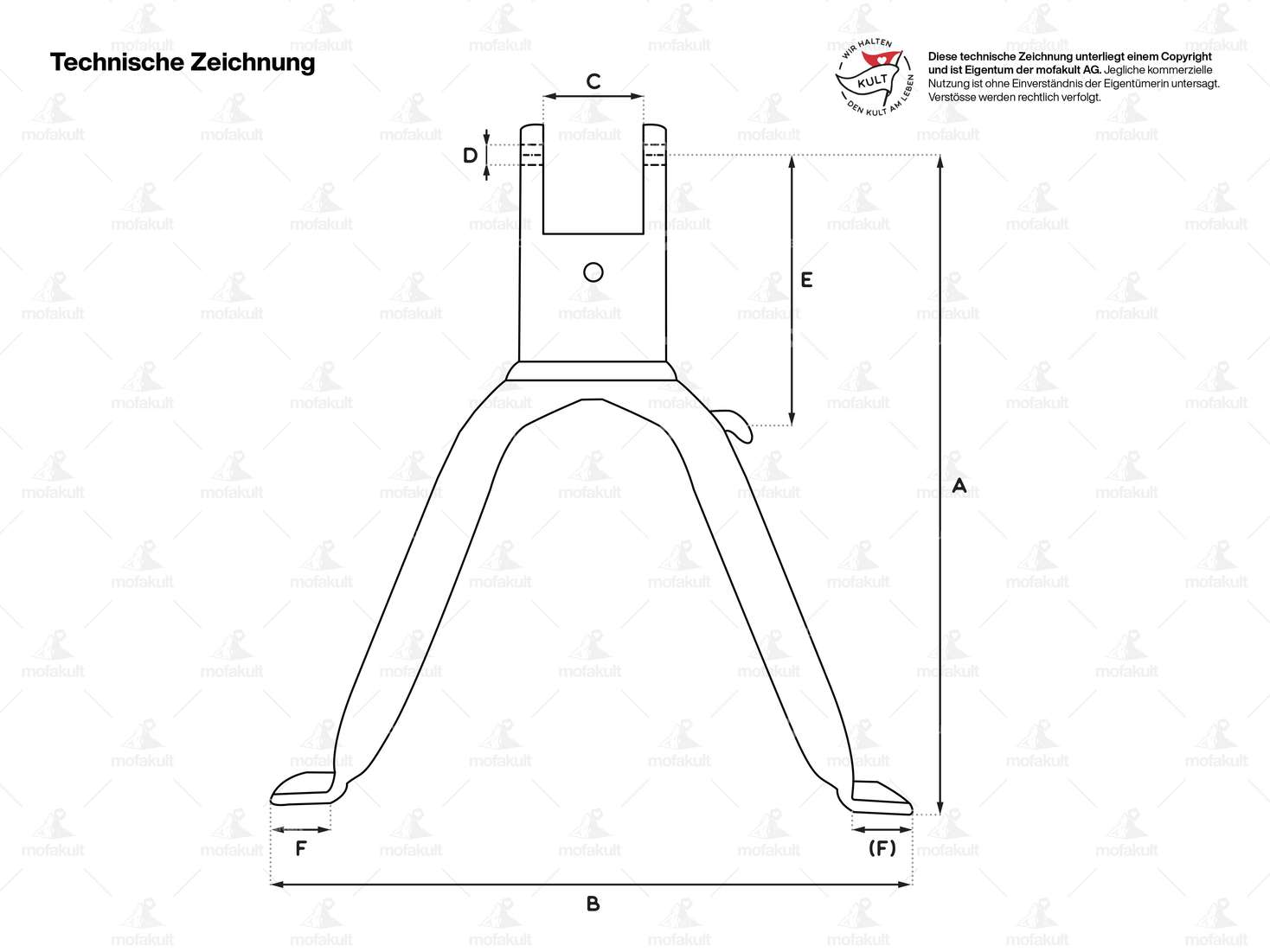

| Stand base - center mount (A) | 245 mm |
| Total width of stand base (B) | 225 mm |
| Wide receptacle (C) | 60 mm |
| Ø Receptacle (D) | 8 mm |
| Spring nipple distance - center pivot axis (E) | 35 mm |
| Wide upright foot (F) | 25 mm |
| Total height | 255 mm |
| Sachs | |
| Hercules |
