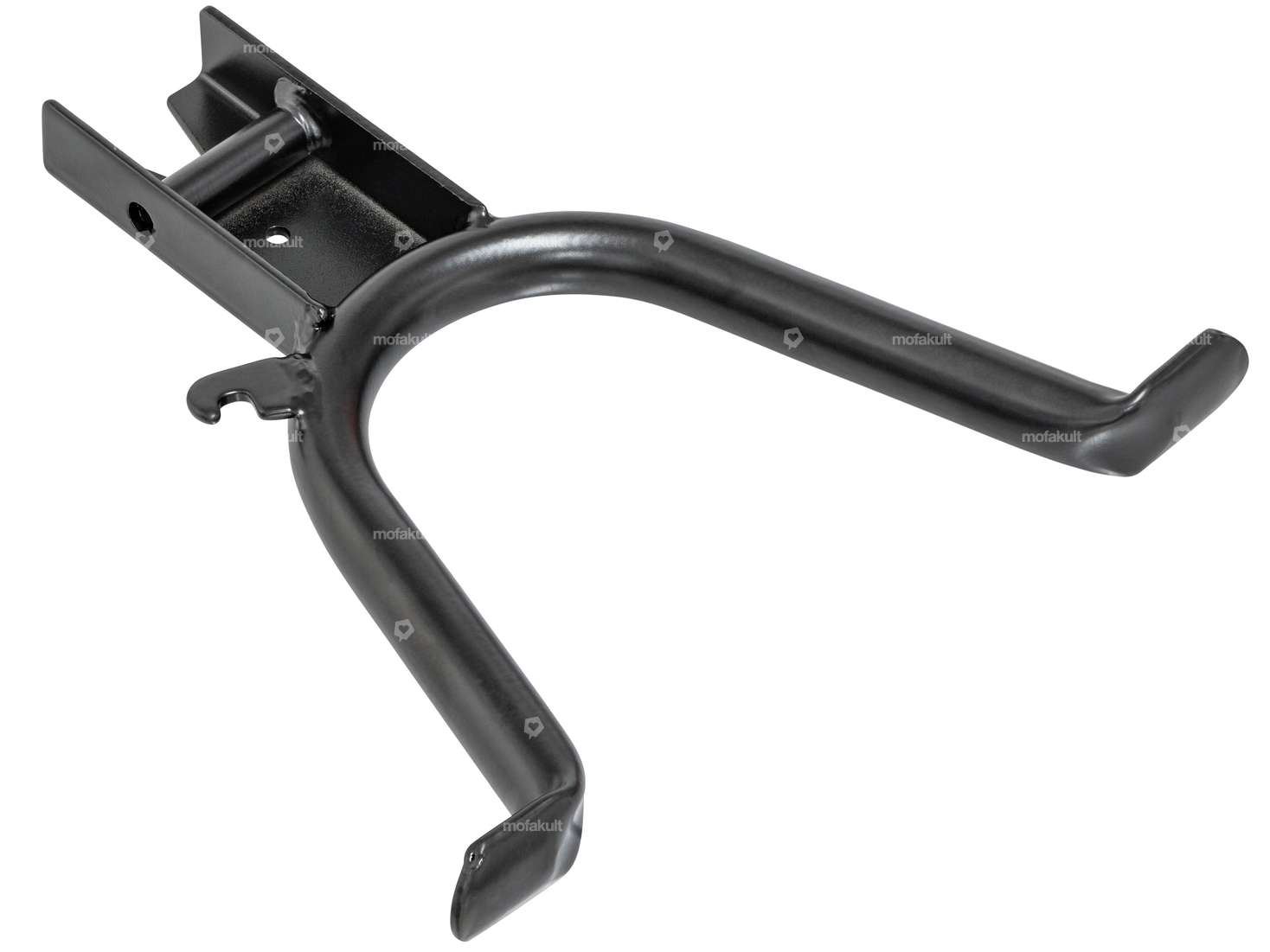

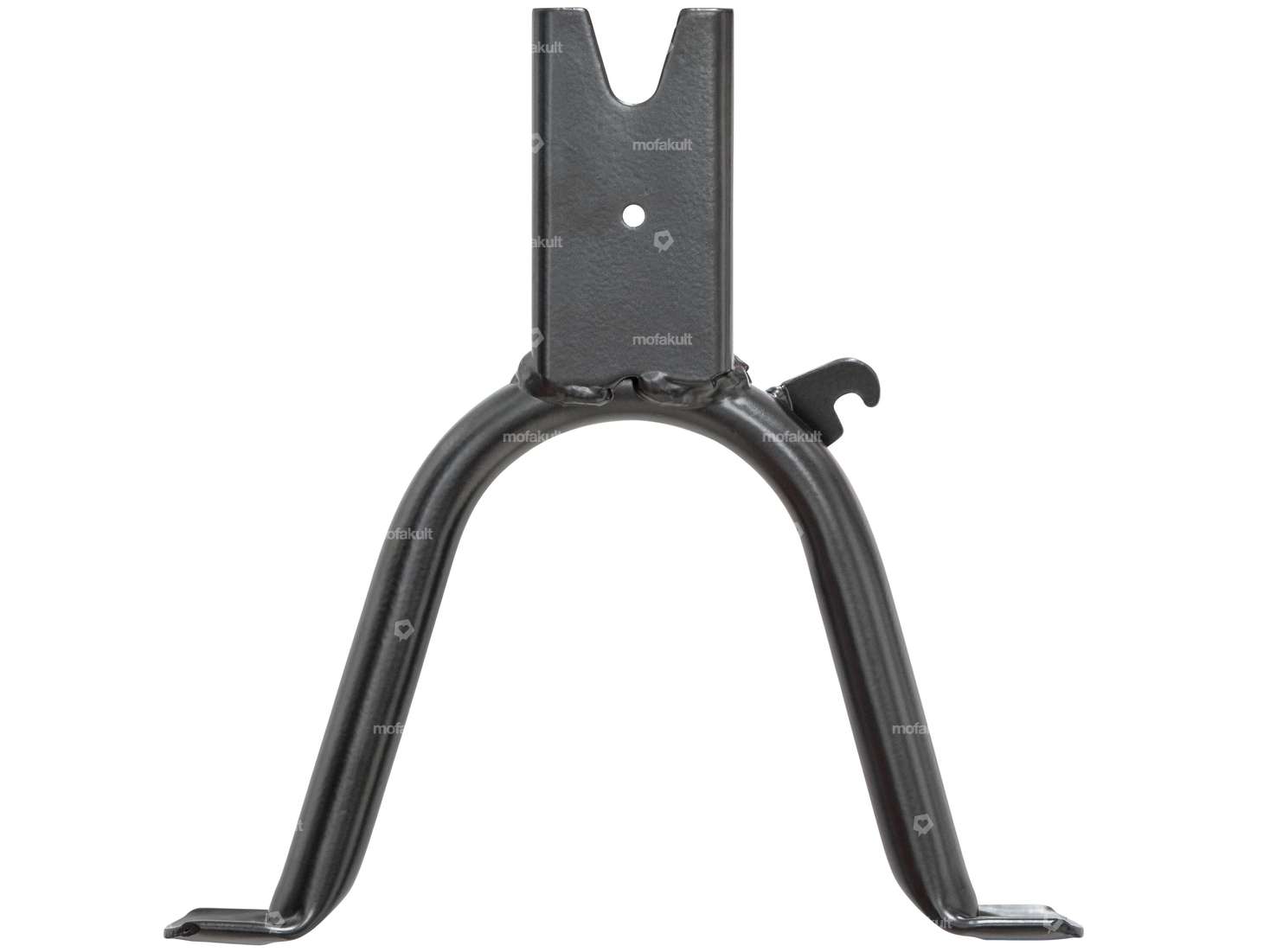

Central support suitable for Tomos A3 / A35 mopeds / mopeds.
This is an inexpensive version with slightly larger dimensional tolerances than its more expensive counterpart, but it fulfills its purpose.
The kickstand is supplied without bolt and spring.
You can find the high-quality finish as well as other parts for your Tomos in the accessories section.
Details
| Material | Steel |
| Surface | varnished |
| Color | black |

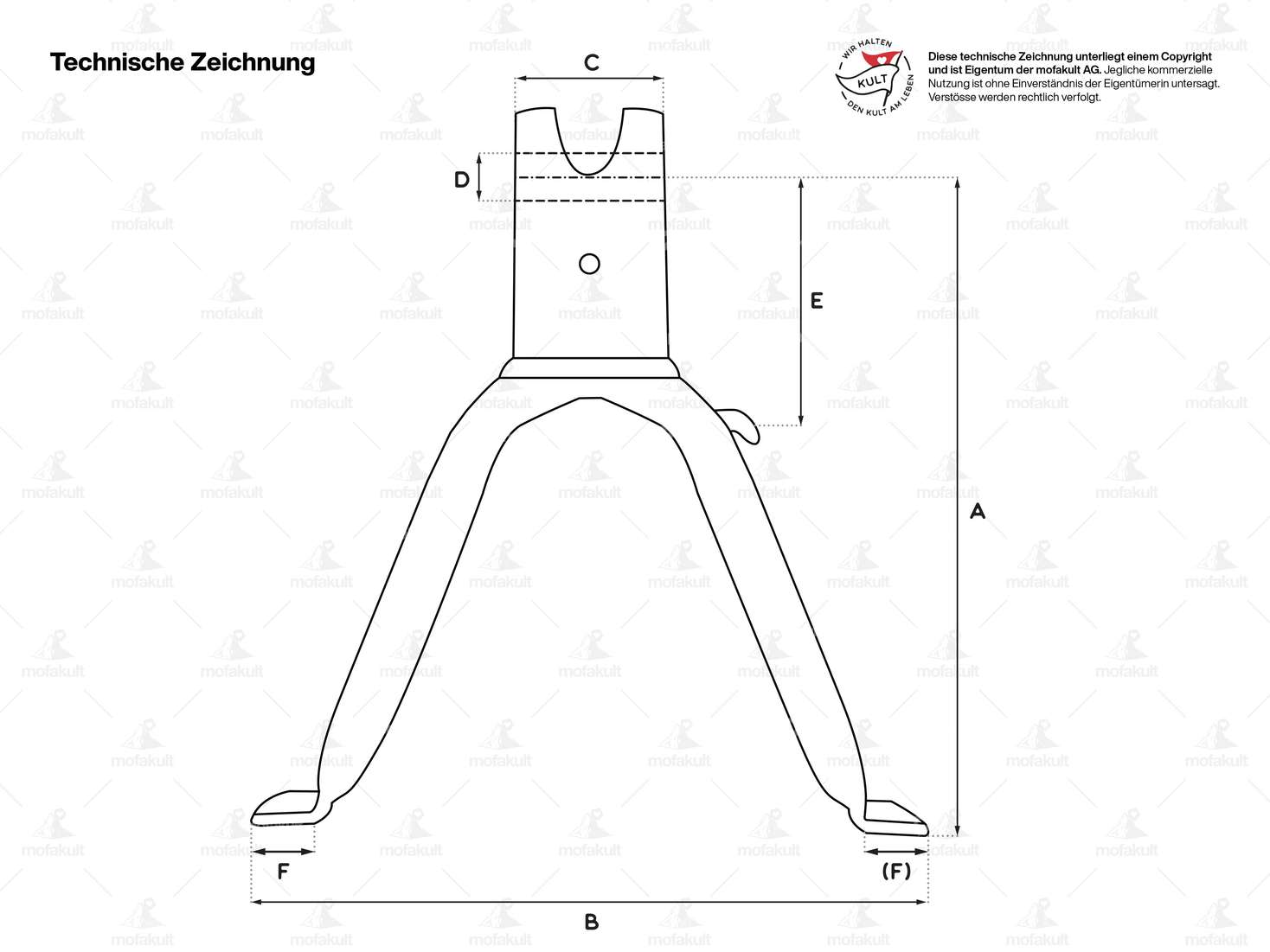

| Stand base - center mount (A) | 200 mm |
| Total width of stand base (B) | 235 mm |
| Wide receptacle (C) | 51 mm |
| Ø Receptacle (D) | 8.1 mm |
| Spring nipple distance - center pivot axis (E) | 65 mm |
| Wide upright foot (F) | 30 mm |
| Total height | 240 mm |
| Tomos spare part no. | 237153S91 |
Suitable for the following models
| Tomos |
