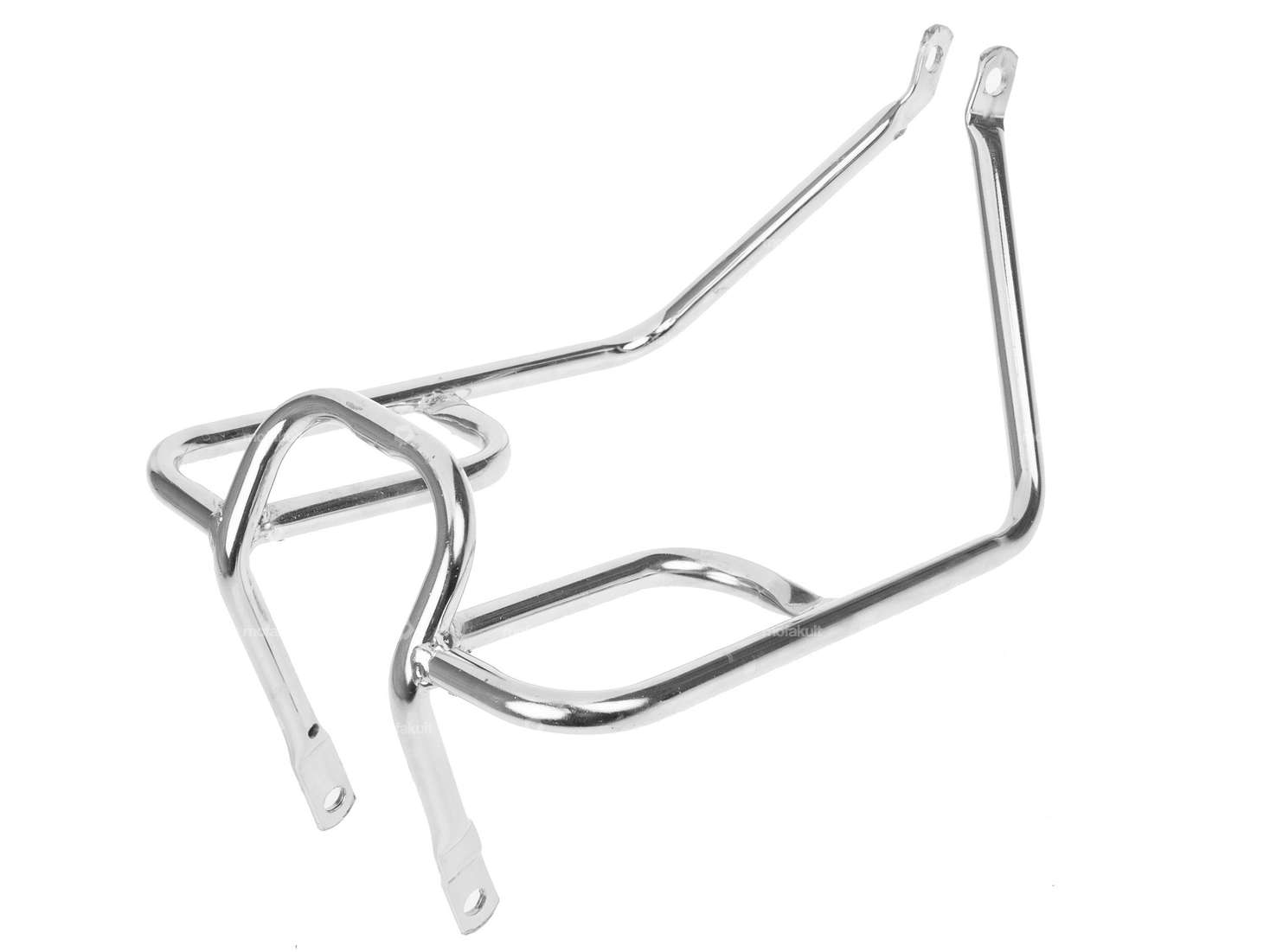

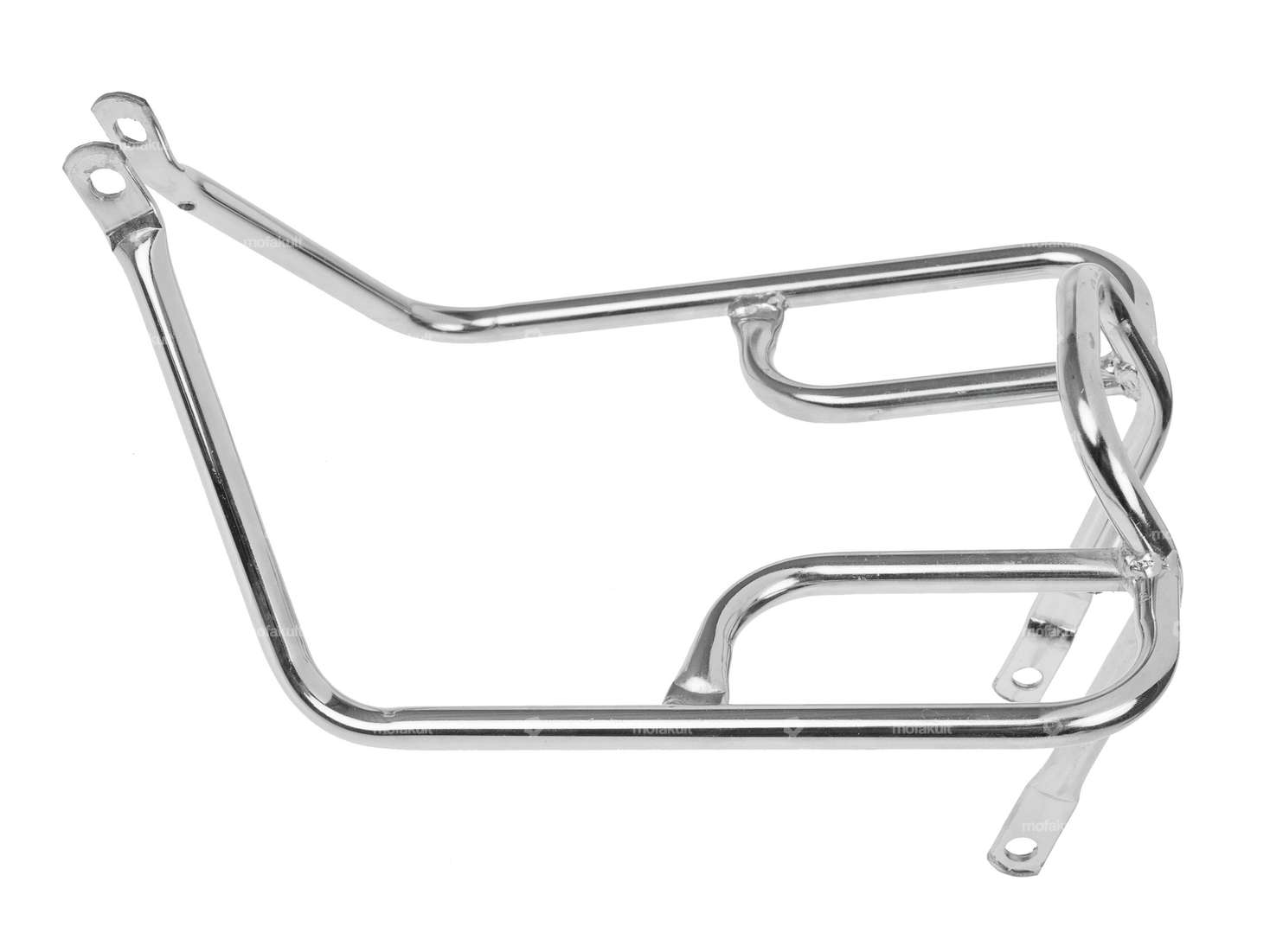

Luggage rack / side bars | Puch Maxi N

GPO control bearing set M26x1 | Puch

Bearing type: Bearing ring · Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Thread type: MF26x1 (fine pitch thread) · Ø mounting frame: 31 mm · Ø inside: 26.8 mm · Ø outside: 41 mm

Pedestal bearing shell | Puch

Material: Aluminum · Material: Steel · Surface: galvanized (blue) · Surface: raw · Color: silver · Number of fixing points: 3 pcs · Total length: 70 mm · Hole spacing: 41 mm · Mounting type: Screws · Width: 46 mm · Height: 20 mm

Chain tensioner Puch X30 & Maxi

Material: Plastic · Material: Steel · Surface: galvanized (blue) · Color: black · Color: silver · Number of teeth: 10 pcs · Number of fixing points: 1 pcs · Ø outside sprocket: 36 mm · Total length: 170 mm · Puch OEM number: 349.1.28.520.0

OMG fuel filter metal 6 mm (removable)

Manufacturer: OMG · Material: Glass · Material: Metal · Color: gray · Color: transparent · Color: white · Filter type: Plastic net · demountable: Yes · Ø inside: 3.45 mm · Total length: 40 mm · Total length: 63 mm · Ø fuel hose connection: 5.6 mm · Ø fuel hose connection: 6 mm · Ø outside: 22 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Manufacturer: GPO · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Thread type: MF12x1 (fine pitch thread) · Reserve level: 70 mm

GPO wheel clamp 12 mm cranked solid (per piece)

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Ø inside: 12.1 mm · Total length: 78 mm · Thread length: 36 mm · Cranking (offset): 6 mm · Ø outside: 23 mm

GPO rear mudguard attachment 17" | Puch Maxi N

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Wheel size: 17 " · Color: Chrome · Mounting type: Nuts & bolts · Total length: 300 mm · Number of fixing points: 4 pcs · Ø mounting hole: 6 mm

Union pedals plastic standard

Manufacturer: Union · Material: Plastic · Material: Steel · Surface: rubberized · Color: black · Thread type: FG14.3 (9/16" 20G) · Total length: 129 mm · Drive: Hexagon socket · Drive: Outer edge · Width across flats: 15 mm · Reflectors: Yes · Width: 77 mm · Height: 29 mm

GPO front mudguard strut 17" chrome

Manufacturer: GPO · Material: Steel · Outer width: 160 mm · Surface: chrome-plated · Color: Chrome · Distance mudguard - center hole: 300 mm · Ø mounting hole: 12.5 mm · Wheel size: 17 " · Number of fixing points: 4 pcs · Total length: 305 mm · Mounting type: Nuts & bolts

GPO Chrome mudguard strut | Puch Maxi S, N

Manufacturer: GPO · Material: Steel · Outer width: 25.5 mm · Surface: chrome-plated · Color: Chrome · Distance mudguard - center hole: 197 mm · Distance mudguard - center hole: 231 mm · Ø mounting hole: 6 mm · Wheel size: 17 " · Number of fixing points: 8 pcs · Hole spacing: 34 mm · Hole spacing: 40 mm · Wide intake: 53 mm · Total length: 240 mm · Mounting type: Nuts & bolts
