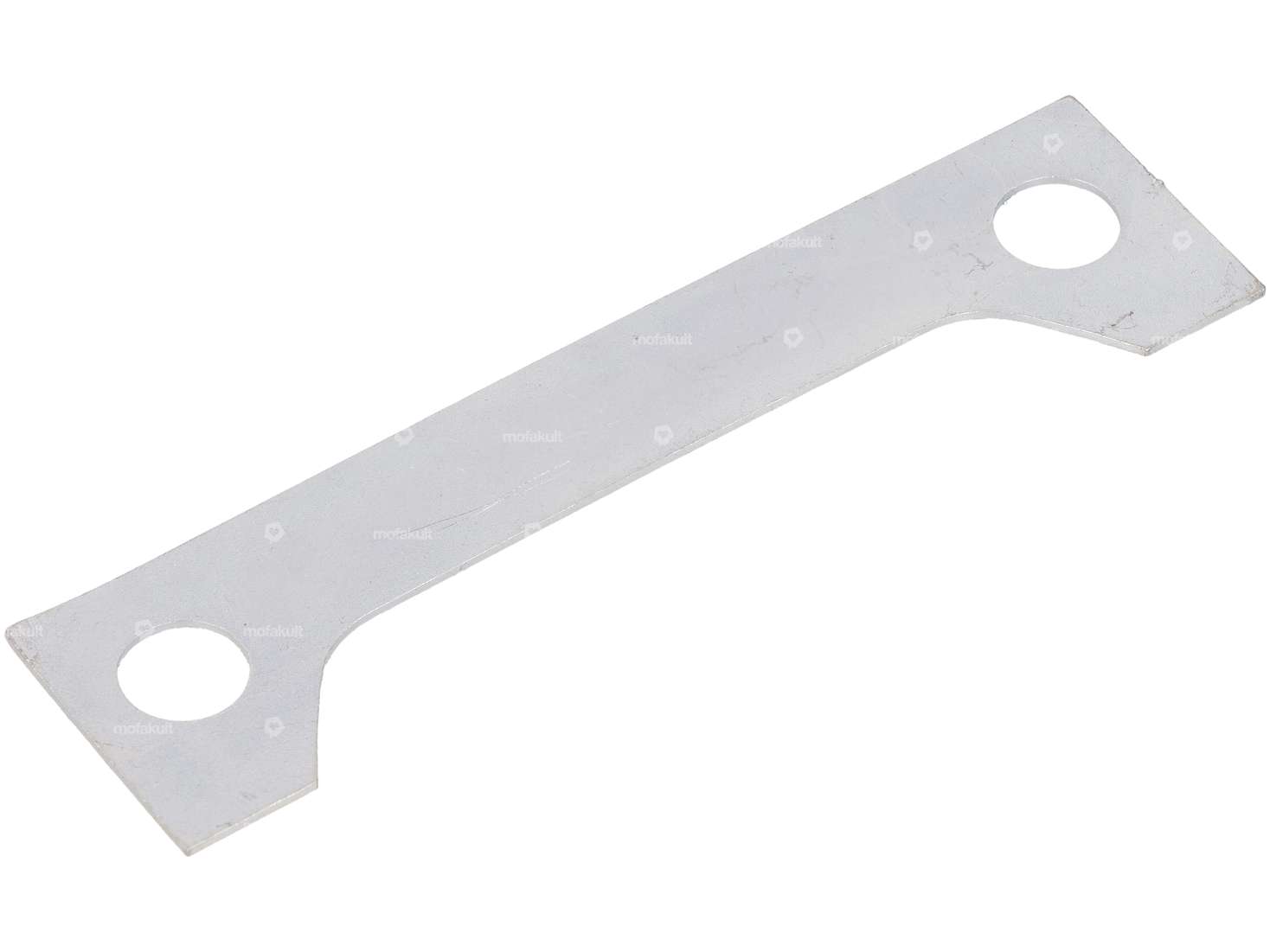

Rear wheel locking plate for the M8 screws for fastening the gearbox to the frame, suitable for your Piaggio Ciao C9 and Ciao Porter moped / moped of the first series with splined gearbox.
The locking plate is mounted on the connection between the gearbox and frame in the area of the rear wheel and is designed for the corresponding M8 fastening screws.
You can find more locking plates and the matching screws in the accessories section.
Original Piaggio spare part number: 130035
| Manufacturer | Made in Italy |
| Material | Steel |
| Surface | galvanized (blue) |
| Number of lobes | 2 pcs |
| Ø bolt circle | 8.5 mm |
| Thickness | 0.8 mm |
| Total length | 76 mm |
| Width | 22 mm |
| Hole spacing | 70 mm |
| Piaggio OEM number | 130035 |
| Piaggio | Ciao |
