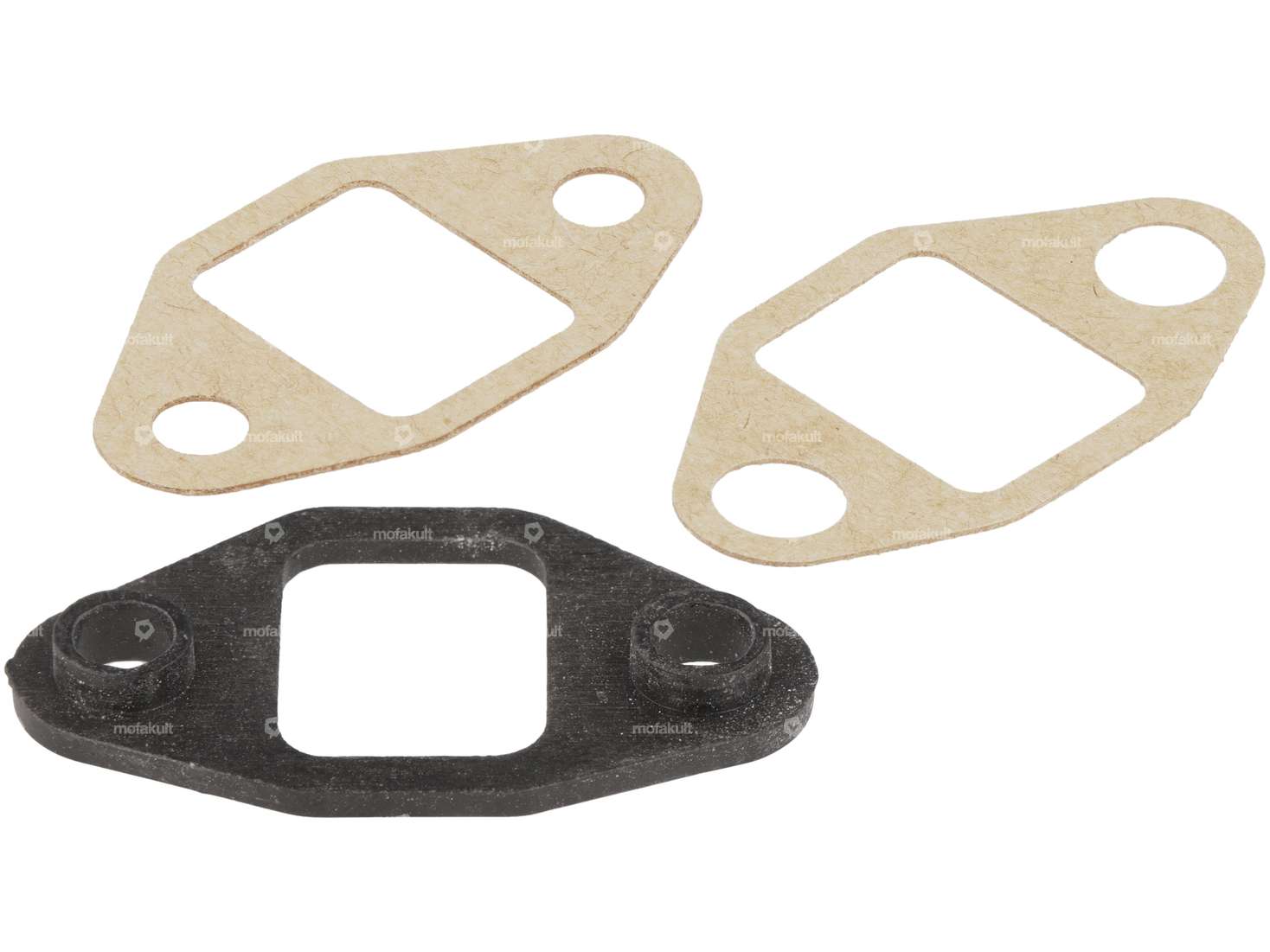

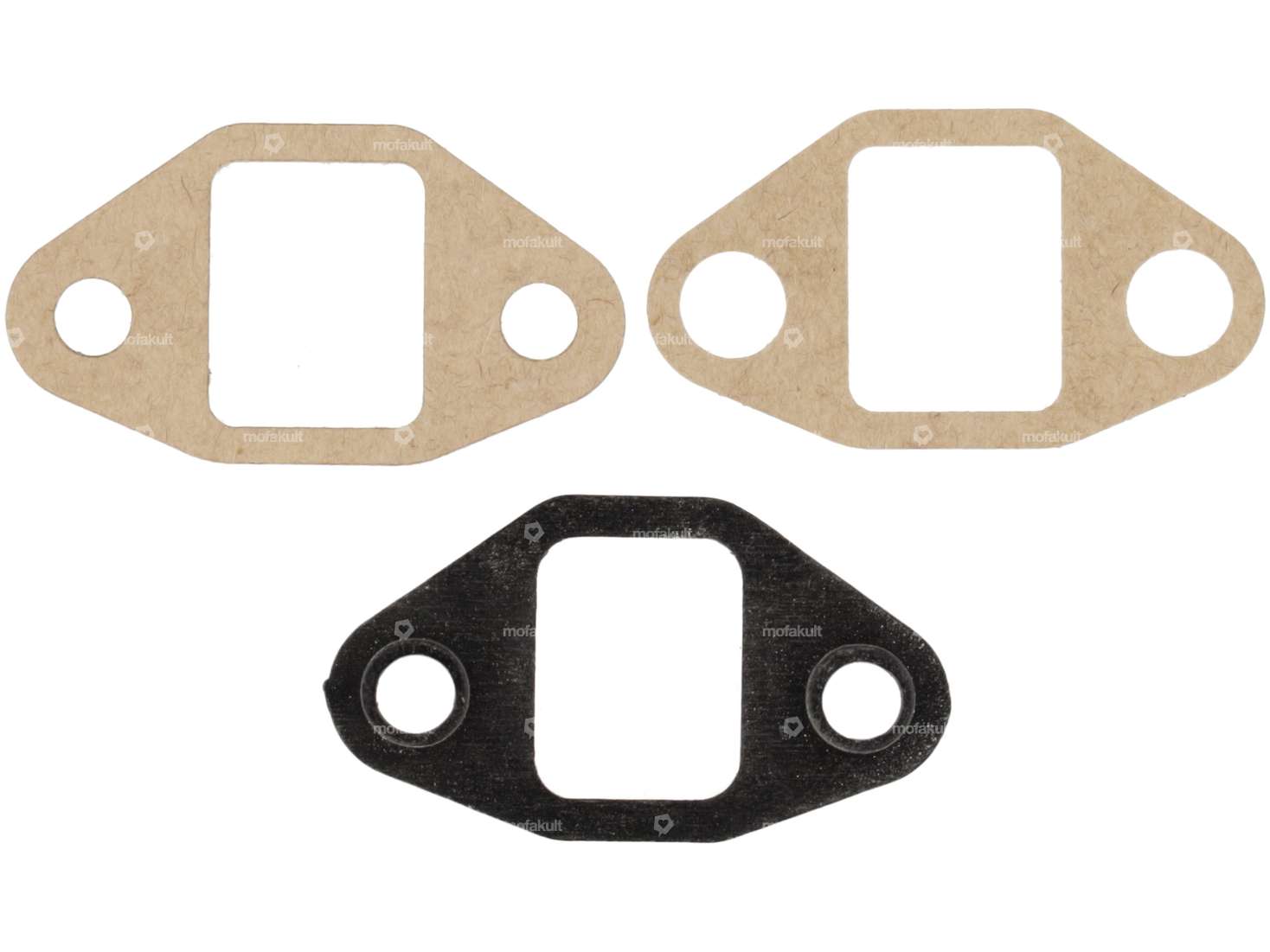

Inlet gasket 2.6 mm Bing 17 mm | Sachs (50/2), 50/3, 50/4

Elring Curil T2 sealing compound 70 ml (polyurethane) non-hardening green

Manufacturer: Elring · Contents [ml]: 70 ml · Color: green · Area of application: Chemistry · Temperature resistance (min.): -55 - 250 °C · Gap dimension (max.): 0.2 mm

swiing® revival carburetor 17 mm Bing SSB 1/17/69

Manufacturer: swiing® revival parts · Material: Aluminum · Component group Carburetor: Carburetor complete · Area of application: Standard · Area of application: Tuning · Width: 85 mm · Carburetor type: SSB · Height: 100 mm · Nominal diameter: 17 mm · Total length: 132 mm · Camouflaged: No · Ø fuel hose connection: 6 mm · Mounting type: Flange · Mixed oil connection: No · Hole spacing inlet: 31 mm · Vacuum connection: No · Choke control: without choke · Nozzle size: 76

swiing® revival stud bolt M5x26 inlet (strength 10.9) | Sachs 50/2, 50/2, 50/3

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M5x0.8 (standard thread) · Width across flats SW: 8 mm · Drive: External hexagon · Total length: 26 mm · Thread length: 7 mm · Thread length: 14 mm · Strength class: 8 · Strength class: 10.9

Sealing paper 0.3 mm A4 sheet 250 °C (1A quality)

Manufacturer: Made in Spain · Material: Sealing paper · Thickness: 0.3 mm · Place of use: Universal

GPO Ø 38 mm "Wummer" cylinder kit (slotted) | Sachs 50/2 (CH)

Nominal diameter: 38 mm · Manufacturer: GPO · Material: Gray cast iron · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Ø cylinder neck: 44.8 mm · Ø Outlet outside: 40 mm · Ø outlet inside: 30 mm · Inlet window: 18 x 15 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 · Decompressor: No · Camouflaged: Yes

swiing® revival gasket cylinder base 0.3 mm | Sachs 50, 50/3, 50/4 DE engines

Manufacturer: swiing® revival parts · Material: Oiled paper · Place of use: Cylinder base · Thickness: 0.5 mm · Hole pattern [mm]: 40.5 x 51

32 mm copper ring 30.6/37.8 flame tube | Sachs

Material: Copper · Ø inside: 30.6 mm · Ø outside: 37.8 mm

Inlet seal 17 mm spigot (5.5 mm) | Sachs 50/3

Place of use: Admission · Thickness: 5.5 mm · Hole spacing inlet: 30 mm

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

Total length: 23 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Diameter: 4.9 mm · Thread type: M5x0.8 (standard thread) · Thread length: 6 mm · Thread length: 12 mm · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101 · Sachs OEM no.: 0640 016 102

swiing® revival stud bolt inlet M5x26 mm galvanized (strength 10.9) | Sachs (A1474)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 26 mm · Thread type: M5x0.8 (standard thread) · Thread length: 7 mm · Strength class: 10.9 · Thread length: 14 mm · Pony OEM number: A1474 · Sachs OEM no.: 0241 031 101

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: GPO · Nominal diameter: 41 mm · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm · Piston weight: 86 g

swiing® revival carburetor 17 mm Bing SSB 1/17/69

Manufacturer: swiing® revival parts · Material: Aluminum · Component group Carburetor: Carburetor complete · Area of application: Standard · Area of application: Tuning · Width: 85 mm · Carburetor type: SSB · Height: 100 mm · Nominal diameter: 17 mm · Total length: 132 mm · Camouflaged: No · Ø fuel hose connection: 6 mm · Mounting type: Flange · Mixed oil connection: No · Hole spacing inlet: 31 mm · Vacuum connection: No · Choke control: without choke · Nozzle size: 76

swiing 41 mm cylinder kit | Sachs 50/3, 50/4 LKH (square inlet)

Nominal diameter: 41 mm · Manufacturer: swiing · Material: Gray cast iron · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: MF40x1.5 (fine pitch thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 51 x 40 / 37 x 37 · Camouflaged: No · Area of application: Tuning
