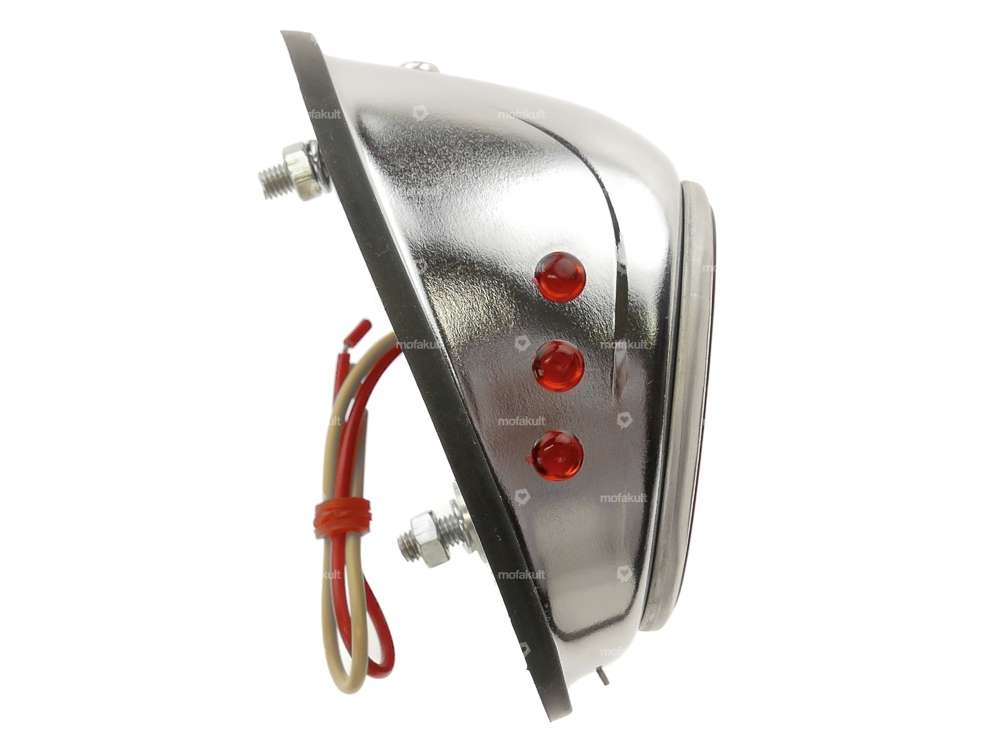

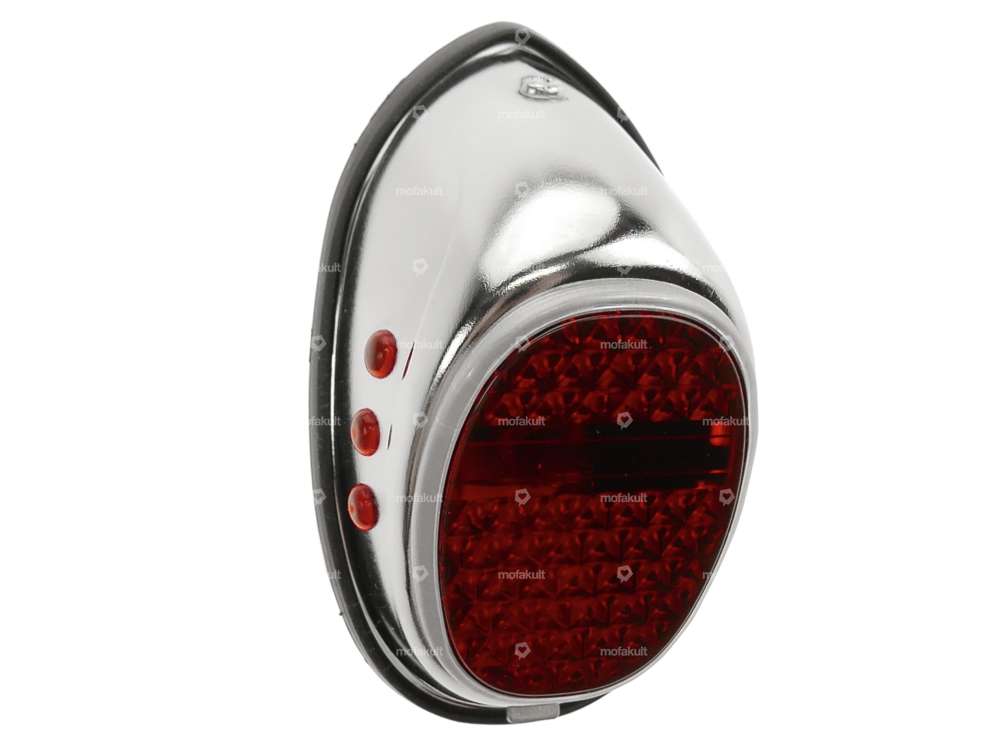

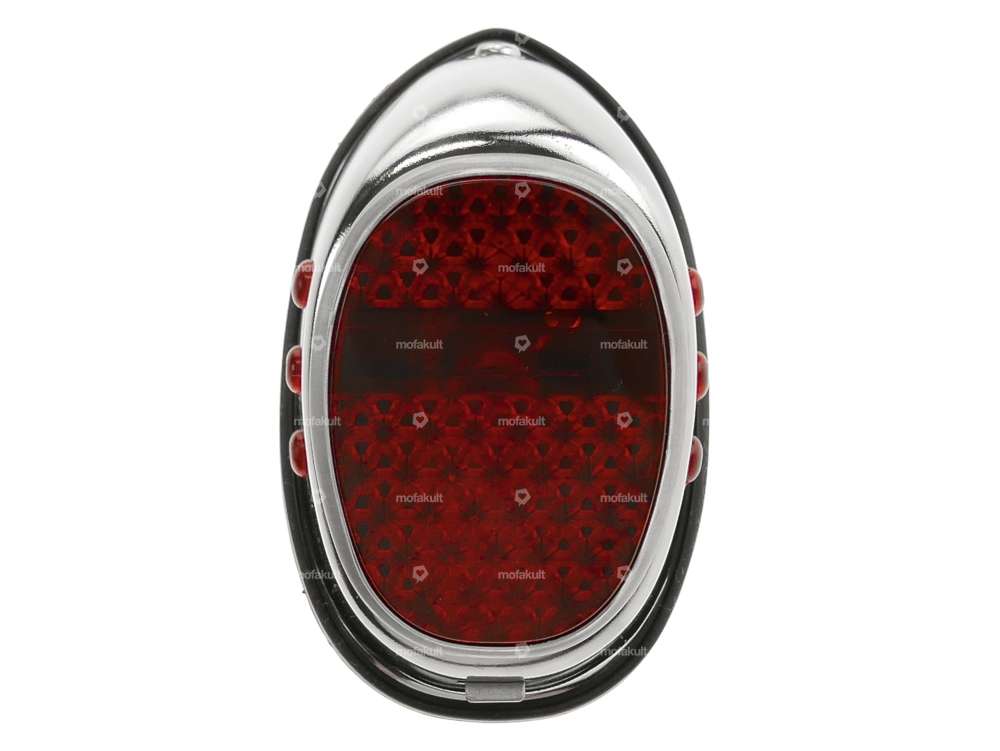

Simple, chrome-plated tail light in "old-school design". Very similar to the old Hella, ULO or CEV rear lights.
Three plastic dots are attached to each side, through which the light shimmers.
Total height: 115 mm
Total width: 60 mm
Depth: 50 mm
Screw spacing: 57 mm
Fixing thread: M6
Cable assignment:
Ground: screw connection
Rücklight: yellow
Brake light: red

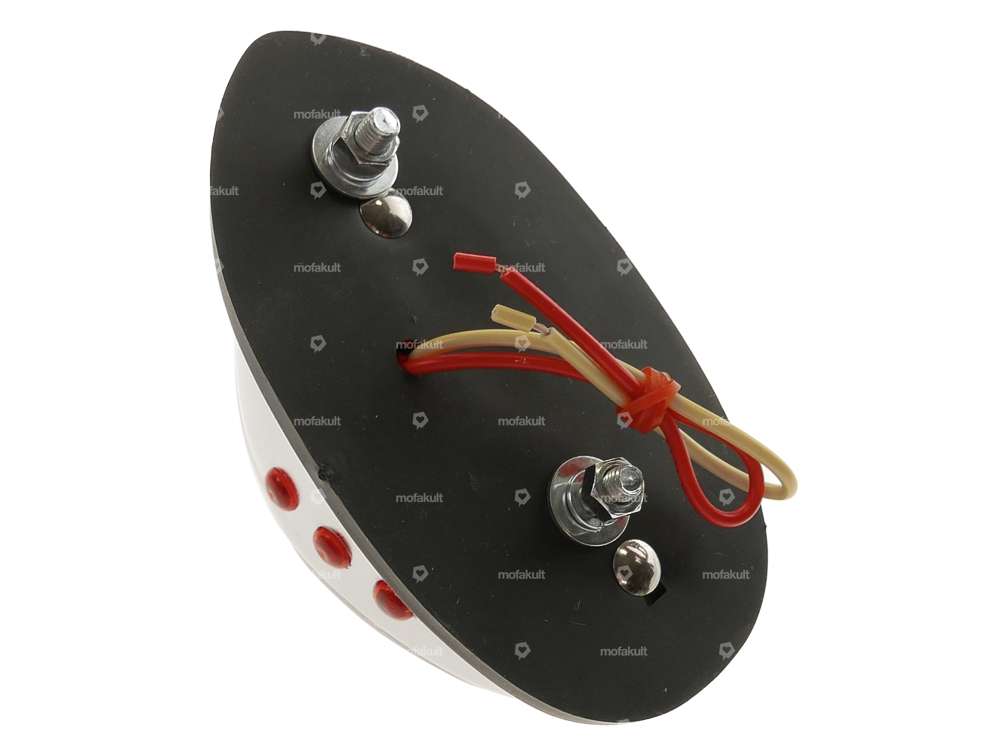

The rubber base is already fitted.
The glass is embedded in an aluminum socket.
Two threaded bulbs are already installed (6V 3W / 6V 5W).
You can find suitable replacement bulbs in the accessories section.
| Manufacturer | GPO |
| Test mark | none |
| Bulb holder | E10 |
| Color | red, Chrome |
| Material | Aluminum |
| Width | 60 mm |
| Height | 115 mm |
| Number of fixing points | 2 pcs |
| Brake light | Yes |
| Battery operated | No |
| Depth | 50 mm |
| Reflectors | Yes |
| Mounting type | Nuts & bolts |
