For: Piaggio

38651

Evok LED headlight insert (with LED ring & reflector) | Piaggio SI

CHF 124.90

Incl. 8.1% VAT.

Description

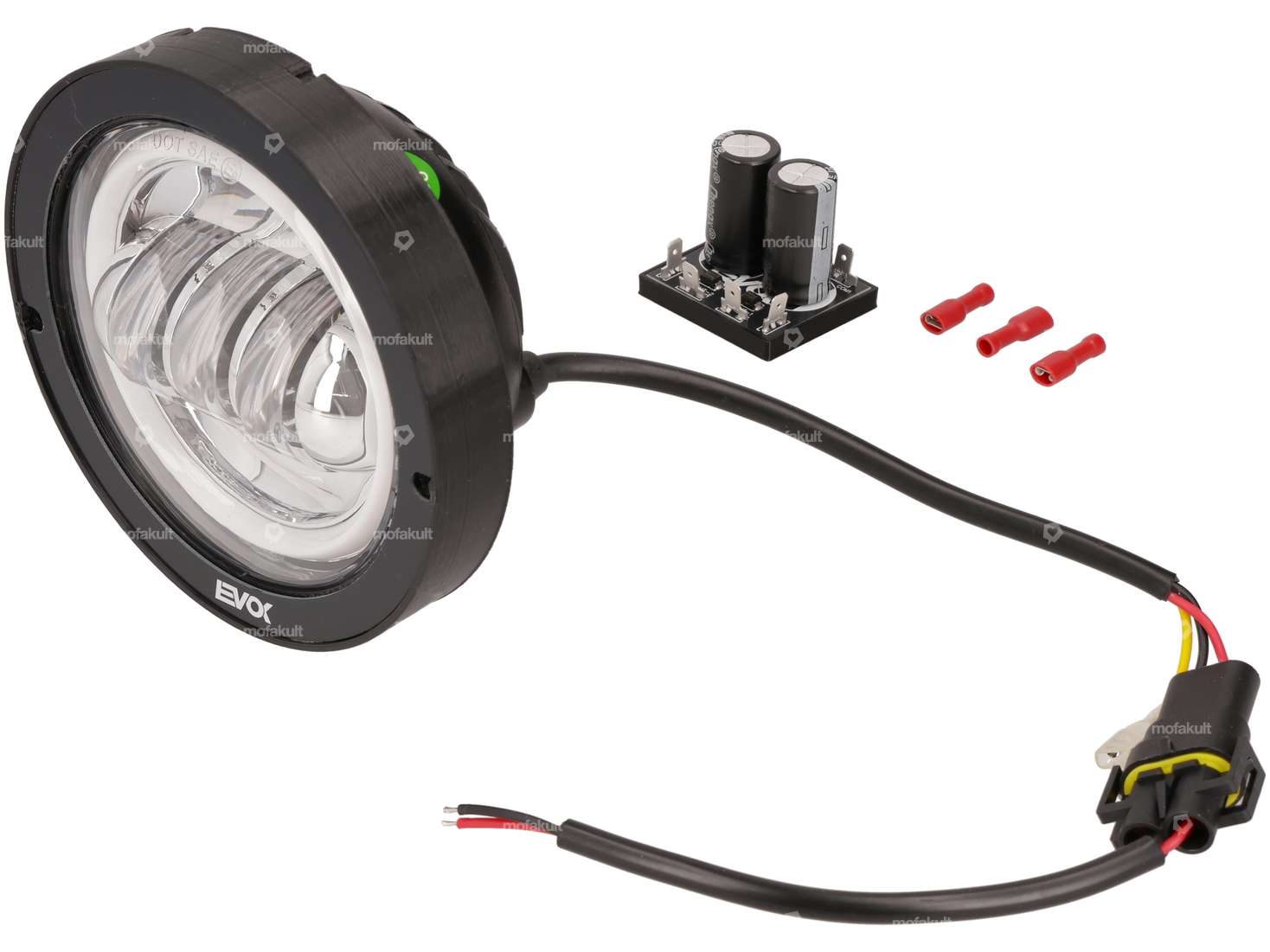

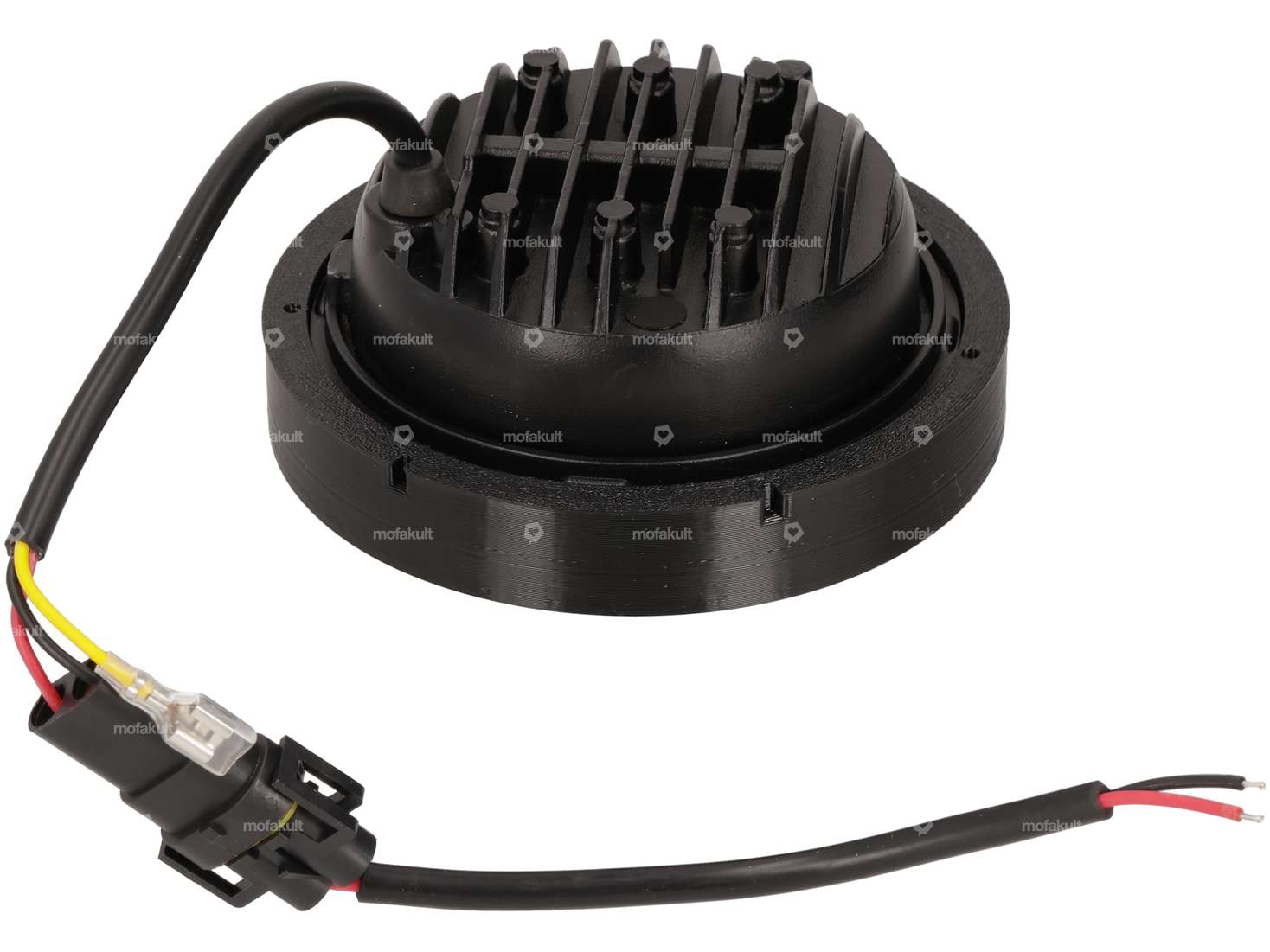

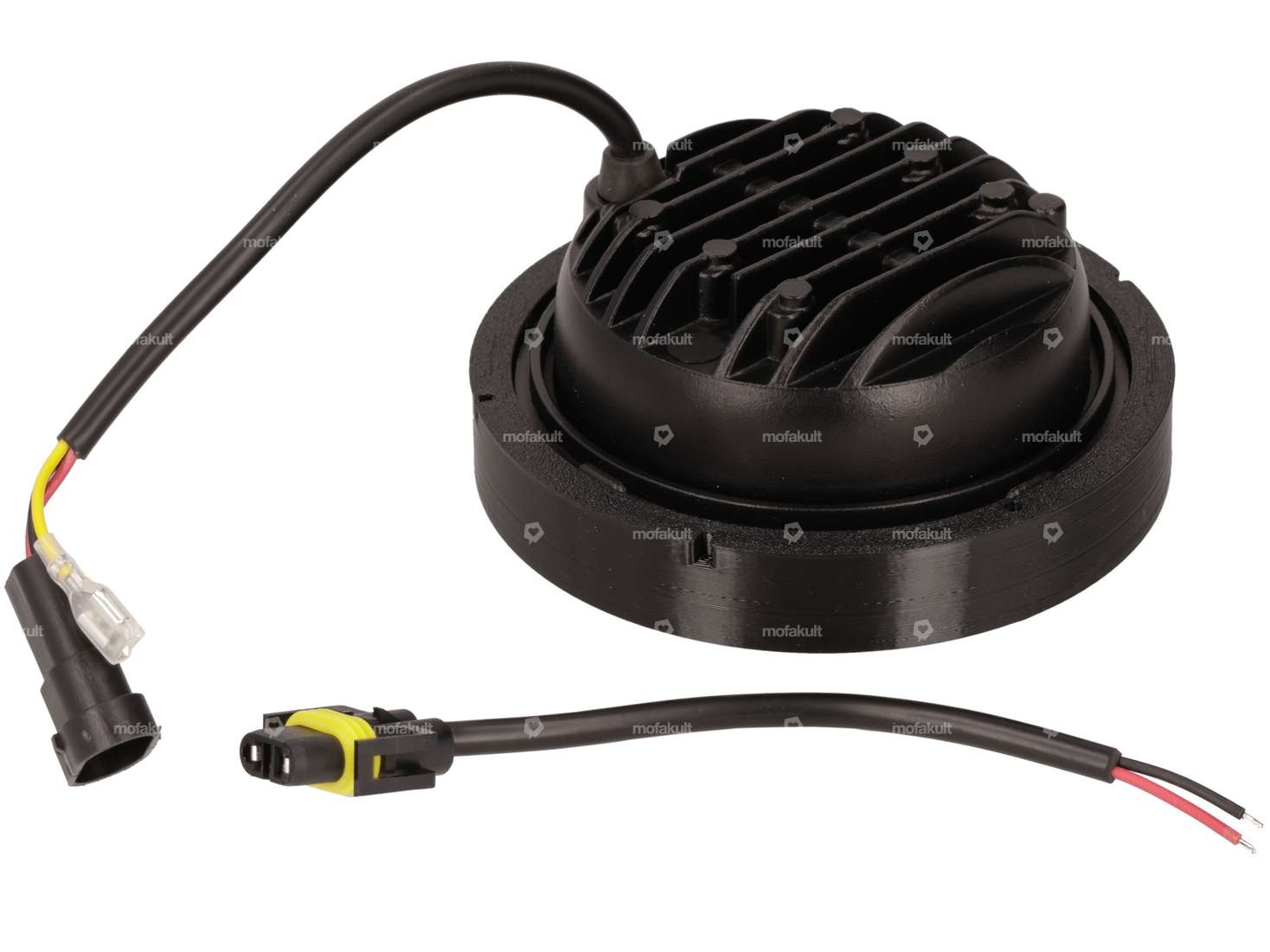

Headlight assembly with LED headlight featuring ring lighting and an internal reflector for your Piaggio SI moped with a 6V or 12V electrical system.

Modern LED headlight insert to enhance the front appearance and provide significantly improved illumination while riding. Suitable for both original and modified vehicles.

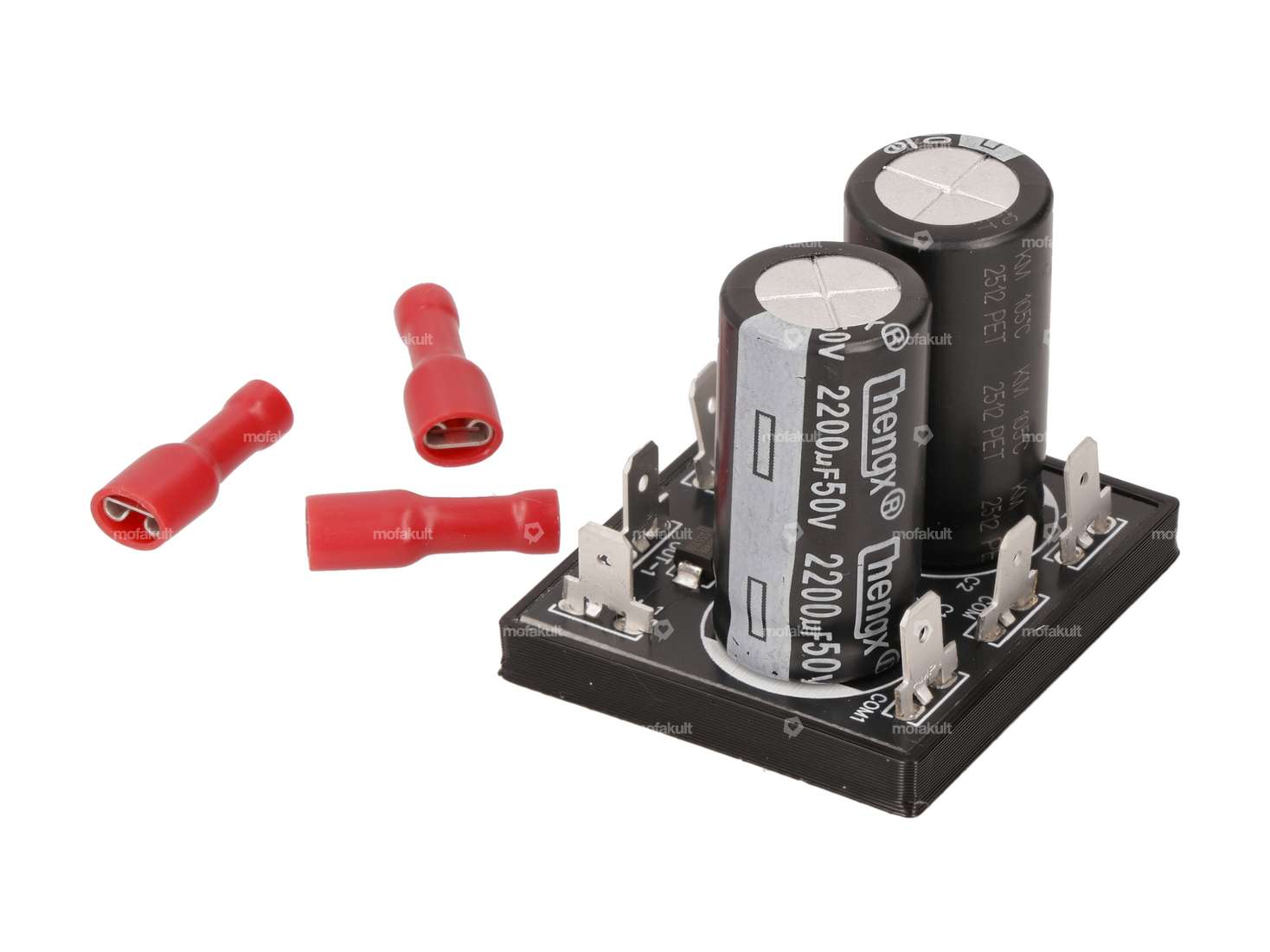

Included in the package are the headlight insert, the connection board, and three cable lugs for the electrical connection.

Connect according to the following diagram:
COM – Black wire from the LED headlight
COM1 – Black ground wire from the original wiring harness
COM2 – Nothing connected
IN-1 - Purple wire from the original wiring harness
IN-2 - Brown wire from the original wiring harness
OUT-1 - Red wire from the LED headlight
OUT-2 - Yellow wire from the LED headlight

Note: The manufacturer recommends using a voltage regulator to extend the service life.

You can find the appropriate tools and additional wiring materials in the accessories section.

Brand-name product from the manufacturer EVOK.

Alternative to the original Piaggio part number: 193829

Colorblack
ManufacturerEVOK
Tension6 V
Ø outside126.6 mm
Bulb holderLED (permanently installed)
Total length65 mm
Test markE9
Ø Lamp head104 mm
LEDYes
Alternative version of the Piaggio OEM number193829
Piaggio

Si
