For: Tomos

30380

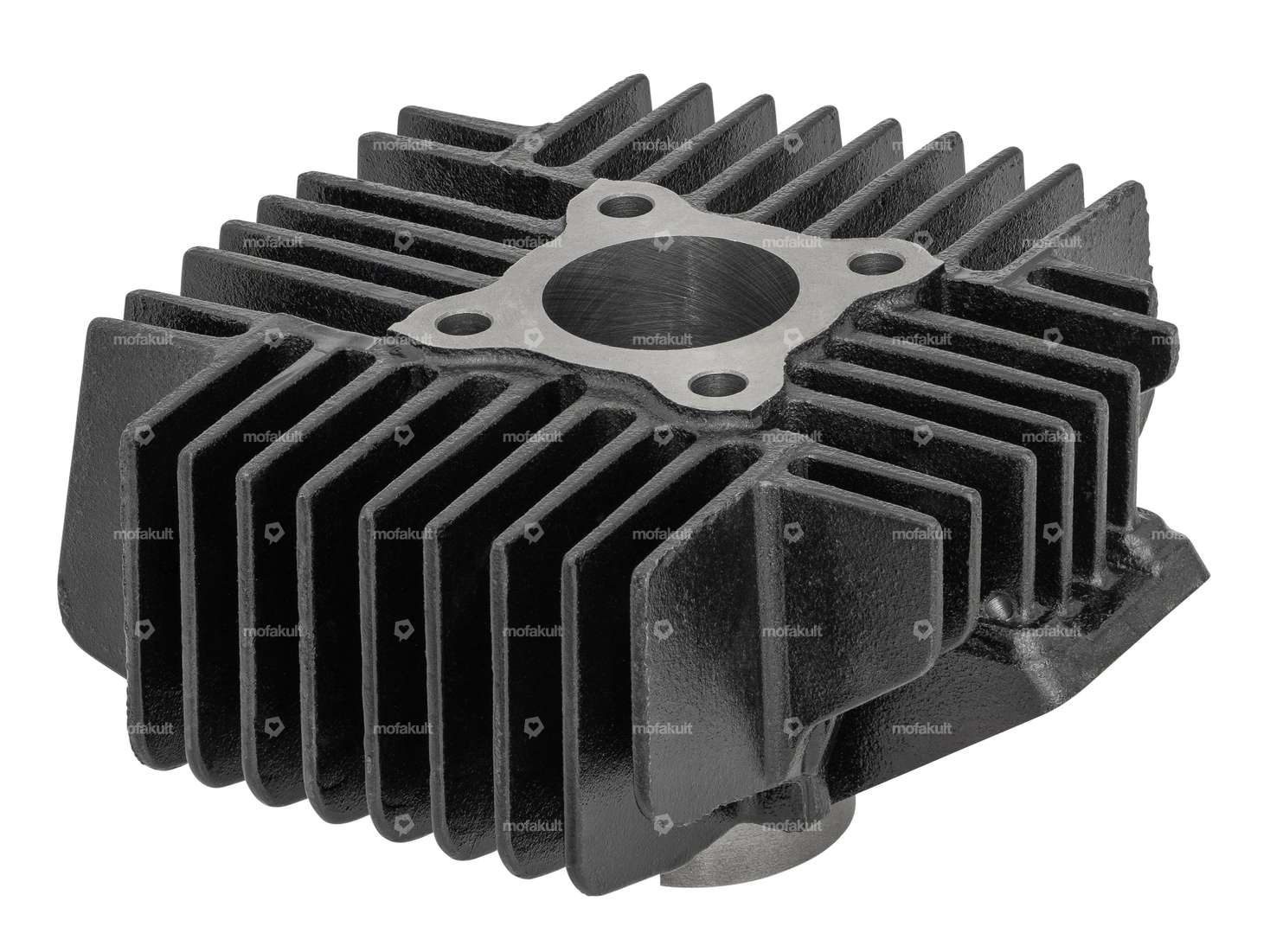

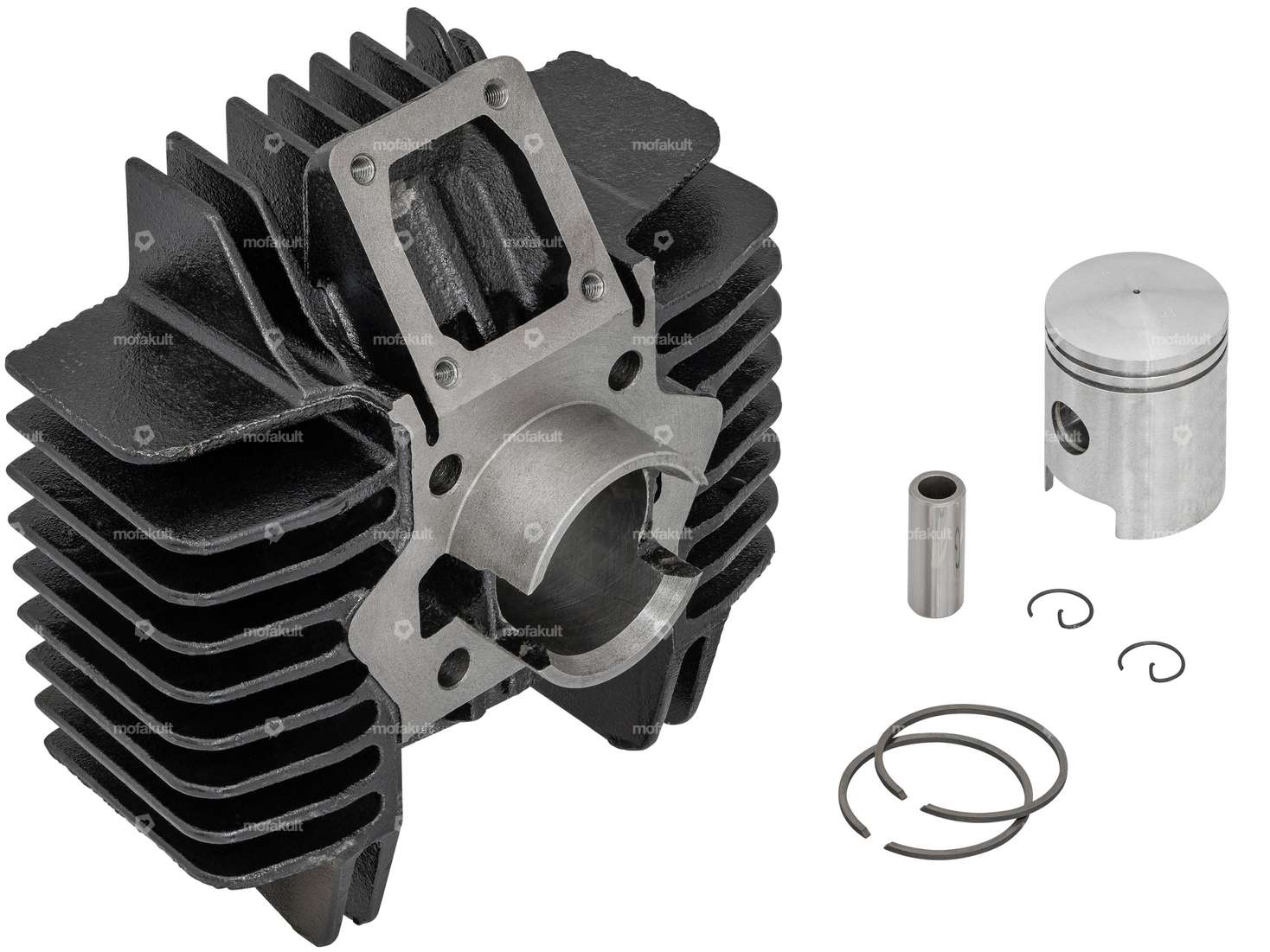

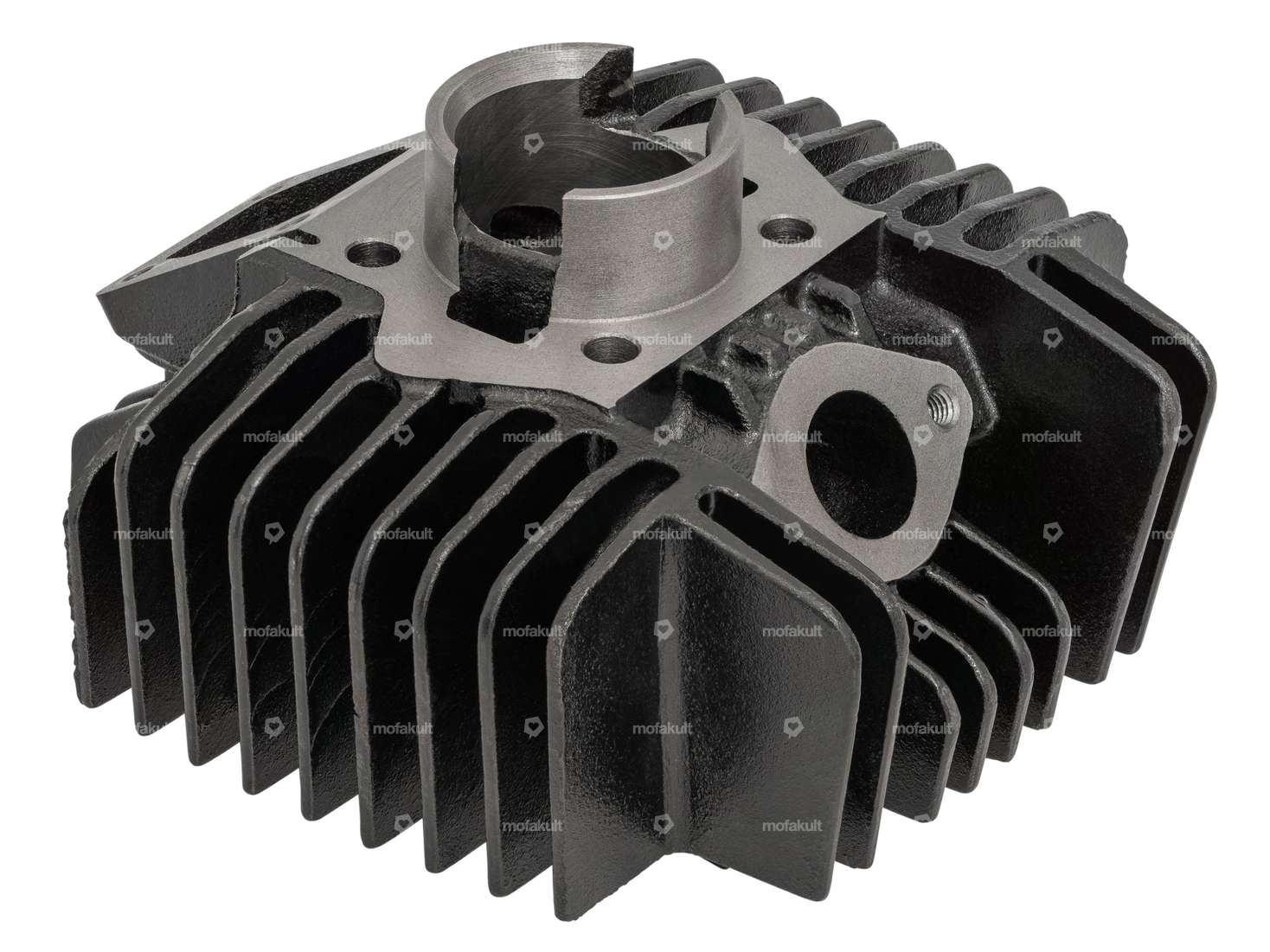

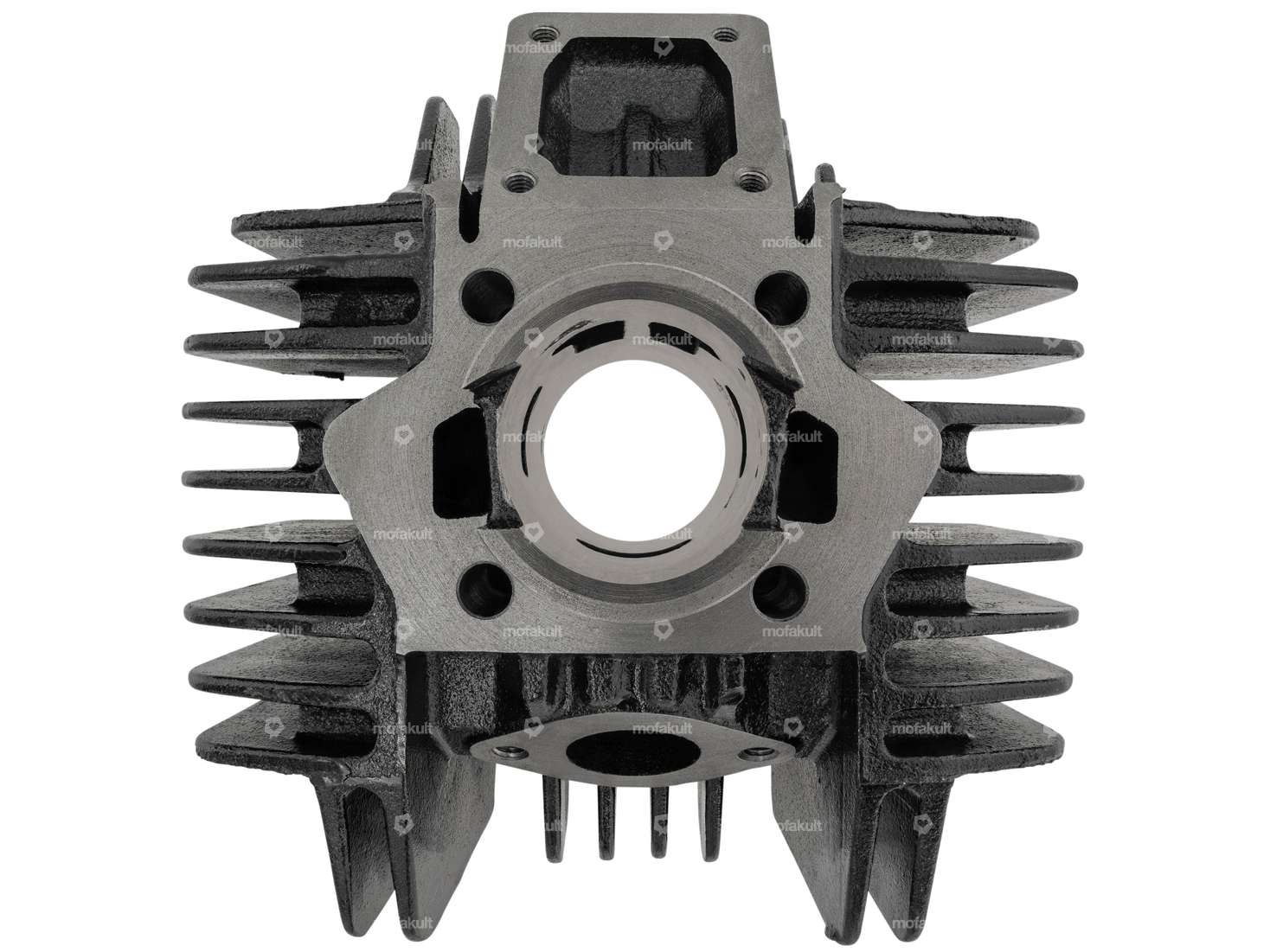

DMP 38 mm cylinder kit slanted exhaust 12 mm KoBo | Tomos Sprint, Quadro, Fun Sport'R, Classic

rating iconrating iconrating iconrating iconrating icon
No reviews
CHF 99.90

Incl. 8.1% VAT.

Description

Cylinder made of solid gray cast iron including piston and accessories, suitable for Tomos Sprint, Quadro, FunSport, Classic mopeds / mopeds.

Dimensions of the cylinder set:
Distance between stud bolts: 44 x 44 mm
Bore: 38 mm
Ø piston pin: 12 mm (Axe 12)
Distance between exhaust stud bolts: 41 mm
Angle of exhaust flange: Inclined (inclined exhaust)

Note: This is the 30 km/h version without additional piston window. You will have to mill these yourself if required. We also recommend that you check the edges in the cylinder and deburr them if necessary, as they are somewhat sharp-edged in places. Please note the installation direction when assembling. The piston is inserted with the arrow pointing towards the outlet on the exhaust side.

Nominal diameter38 mm
ManufacturerDMP
MaterialGray cast iron
CamouflagedYes
Area of applicationStandard
Displacement50 ccm
Crankshaft stroke43 mm
Surfacevarnished
Ø piston pin (B)12 mm
Thread inletM5x0.8 (standard thread)
Number of fixing points4 pcs
Outlet typeslanted
Hole spacing outlet42 mm
Thread outletM6x1 (standard thread)
Hole pattern [mm]44 x 44
Tomos OEM number229402
