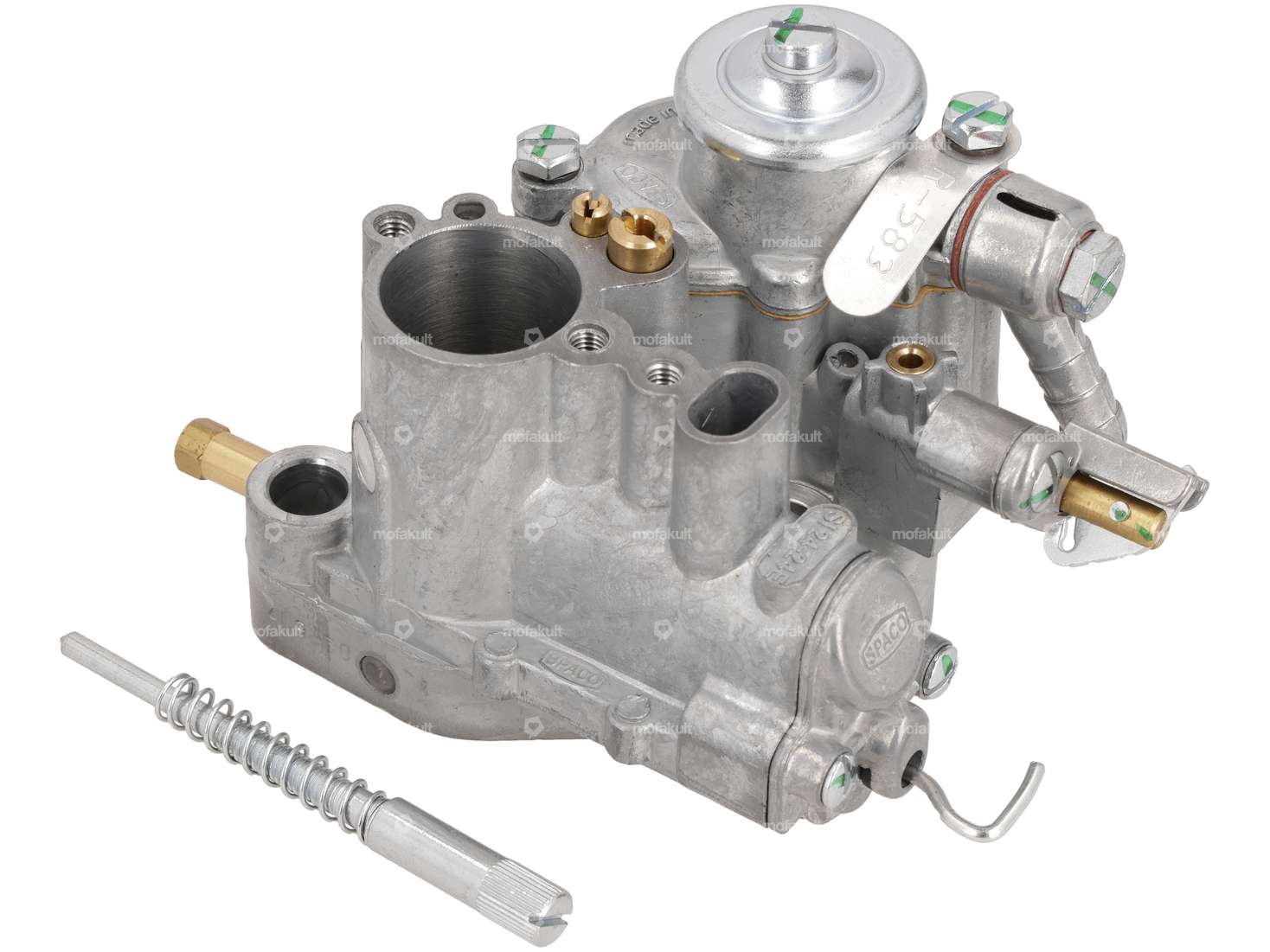

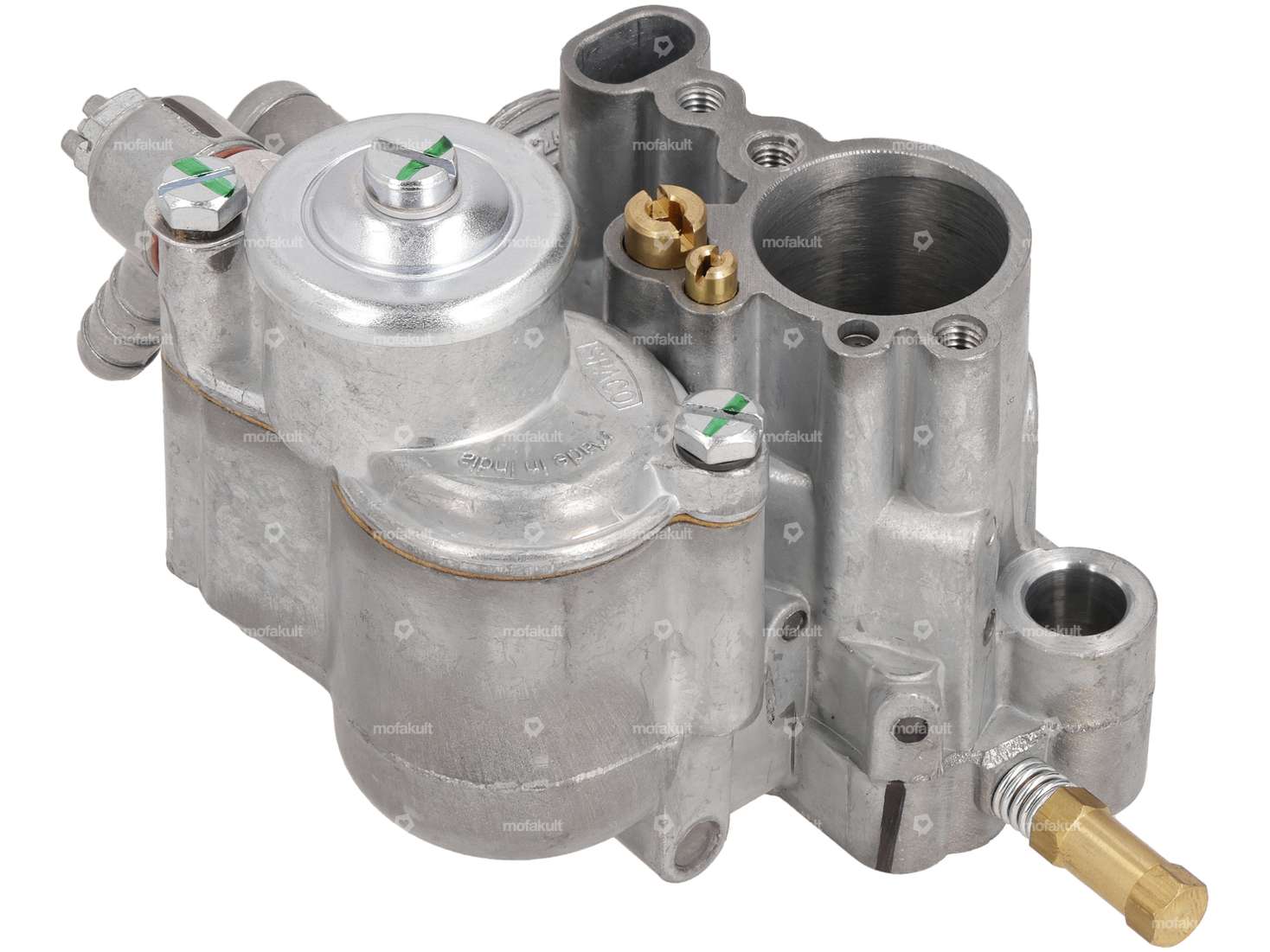

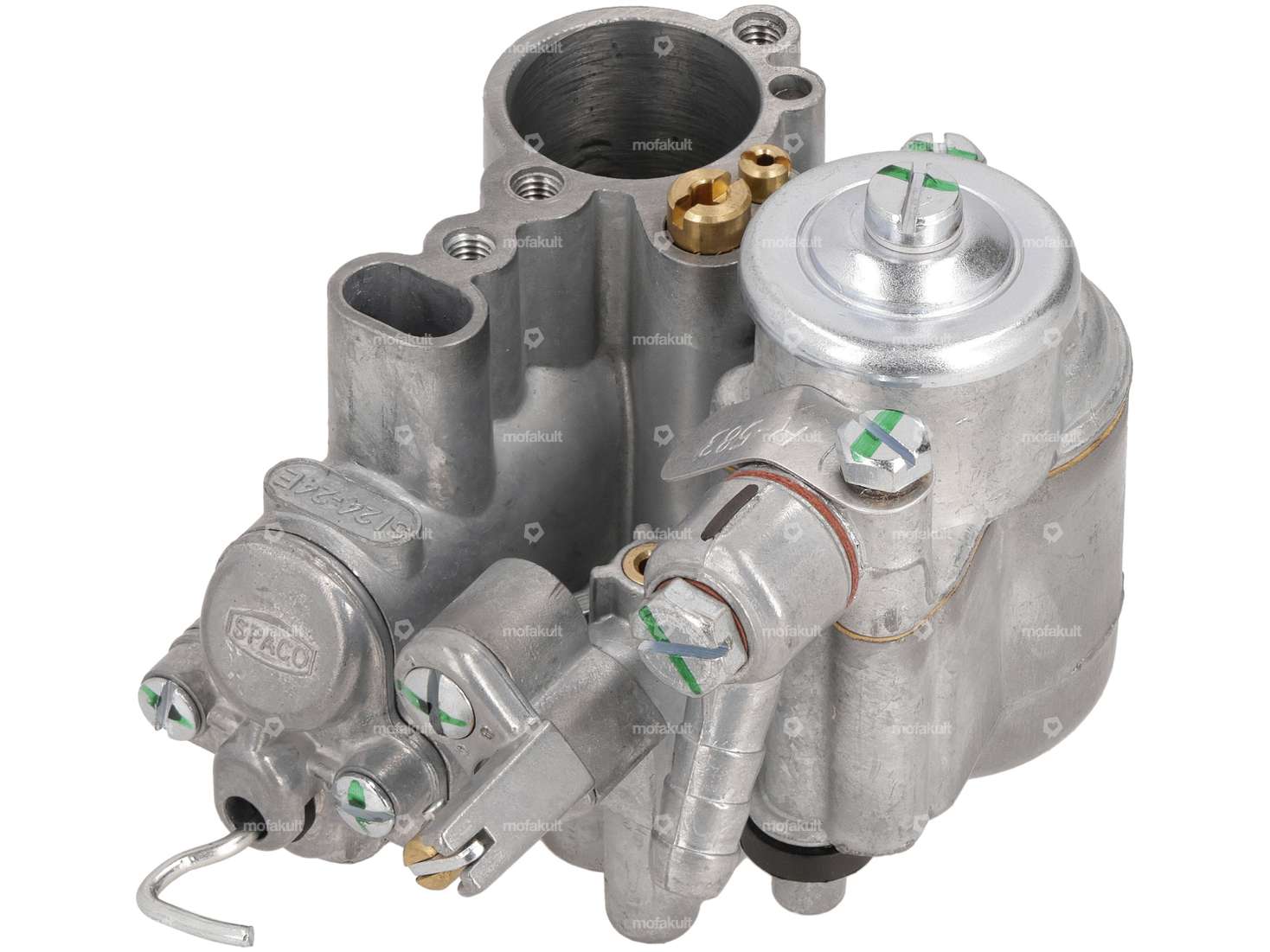

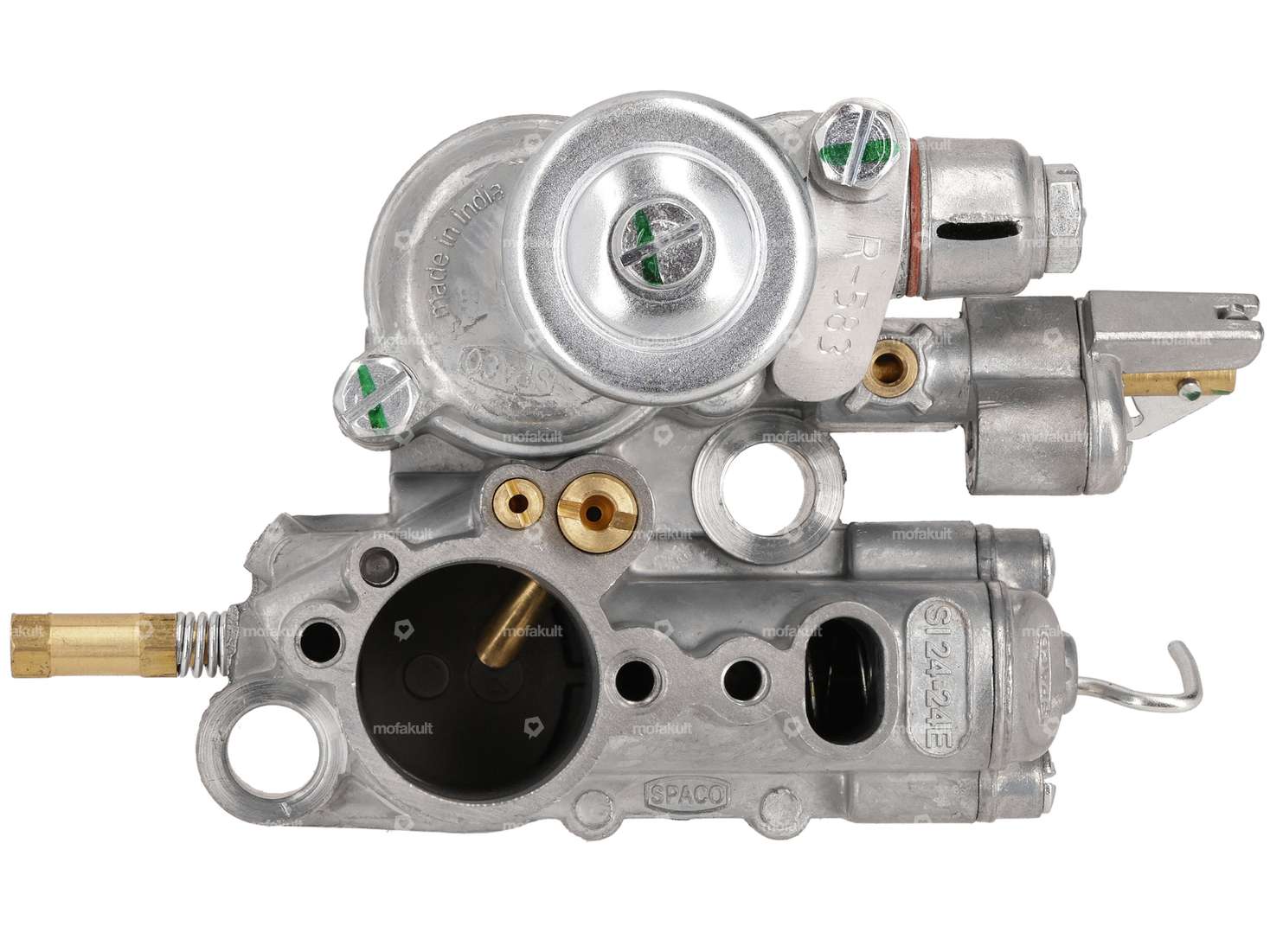

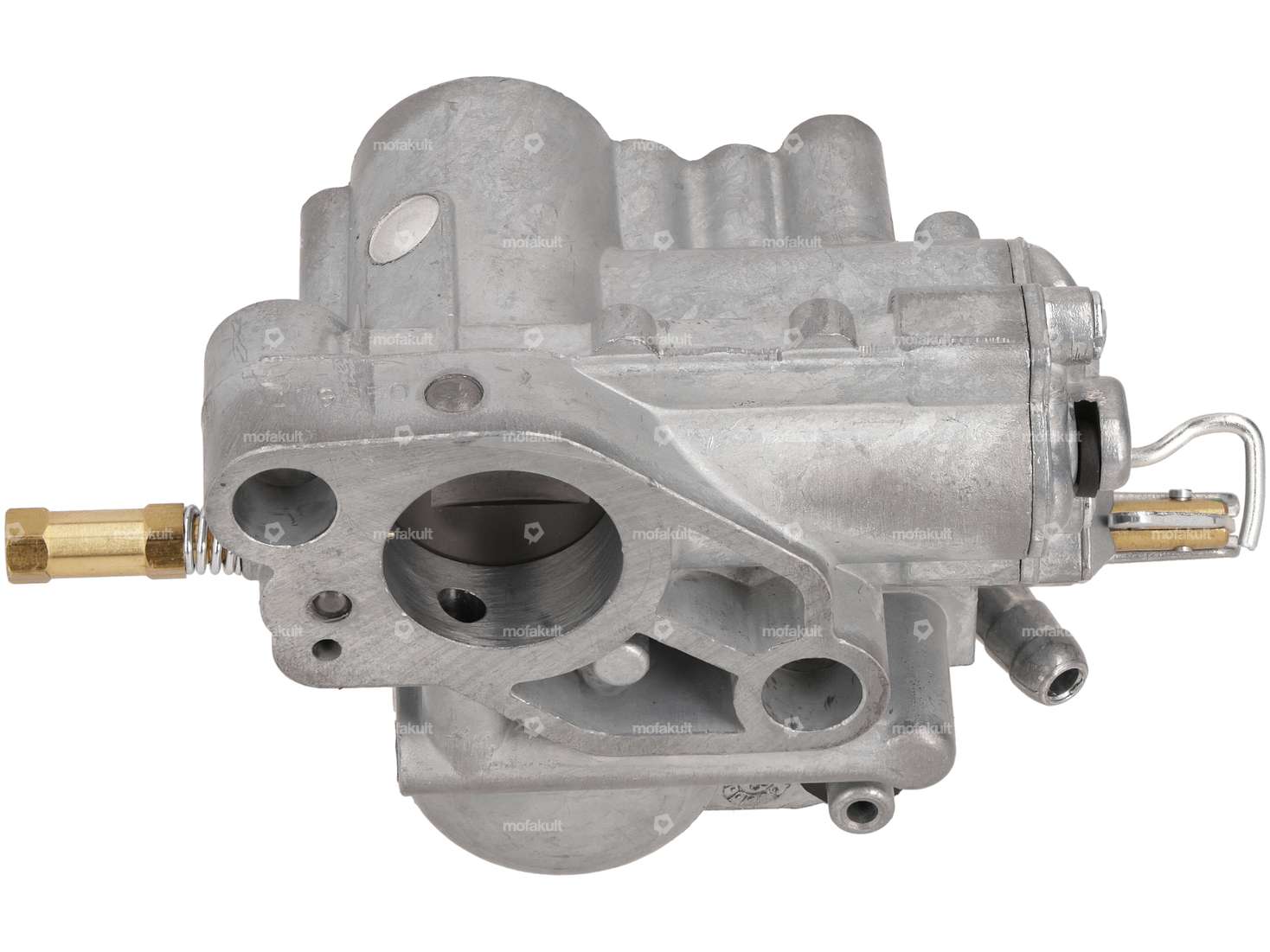

Dell'Orto SI 24.24E carburetor with separate lubrication suitable for your Vespa P200E, PX 200 Lusso and Rally 200 scooter with separate Öltank.
The classic SI rotary slide carburetor can be found ex works on many Vespa large-frame engines and can be easily tuned thanks to the clear throttle/adjustment points. Thanks to the short intake path, your scooter responds directly - ideal if you are looking for a reliable replacement carburetor or want to get your 200cc running cleanly.
The SI24 carburettor with separate lubrication is designed for use with a mixing port or models with a separate oil feed and is supplied with a vehicle-specific condition, which must be adapted depending on the model and setup.
Für 125/150cc Vespa models, the SI 24 carburettor serves as a kind of tuning carburettor as it also fits here, but with the larger passage it harmonizes much better with various racing cylinders.
New gaskets for the carburetor sump and a new air filter can be found in the accessories section.
Quality product from the Italian manufacturer Dell'Orto.
Original Piaggio spare part number: 131220, 183099, 285328
| Manufacturer | Dell'Orto |
| Material | Aluminum |
| Camouflaged | No |
| Component group Carburetor | Carburetor complete |
| Carburetor type | SI |
| Width | 78 mm |
| Height | 81 mm |
| Nominal diameter | 24 mm |
| Total length | 125 mm |
| Nozzle size | 116 |
| Ø Inside entrance | 23.7 mm |
| Ø Output inside | 23.7 mm |
| Air filter connection thread | M5x0.8 (standard thread) |
| Ø fuel hose connection | 8.3 mm |
| Mixed oil connection | Yes |
| Vacuum connection | No |
| Choke control | Cable choke |
| Choke nozzle size | 60 |
| Nozzle block | BE5 |
| Mounting type | Screws |
| Area of application | Standard |
| Piaggio OEM number | 131220, 183099, 285328 |
| Vespa | Vespa PX, T5, Cosa - P200E · VSX1T · 1977 - 1984 (Zündschloss Lenkkopf) , PX200 · VSX1T · 1984 - 1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993 - 1996 Classic , PX200 · VSX1T · 1997 - 1999 (Disc) |
