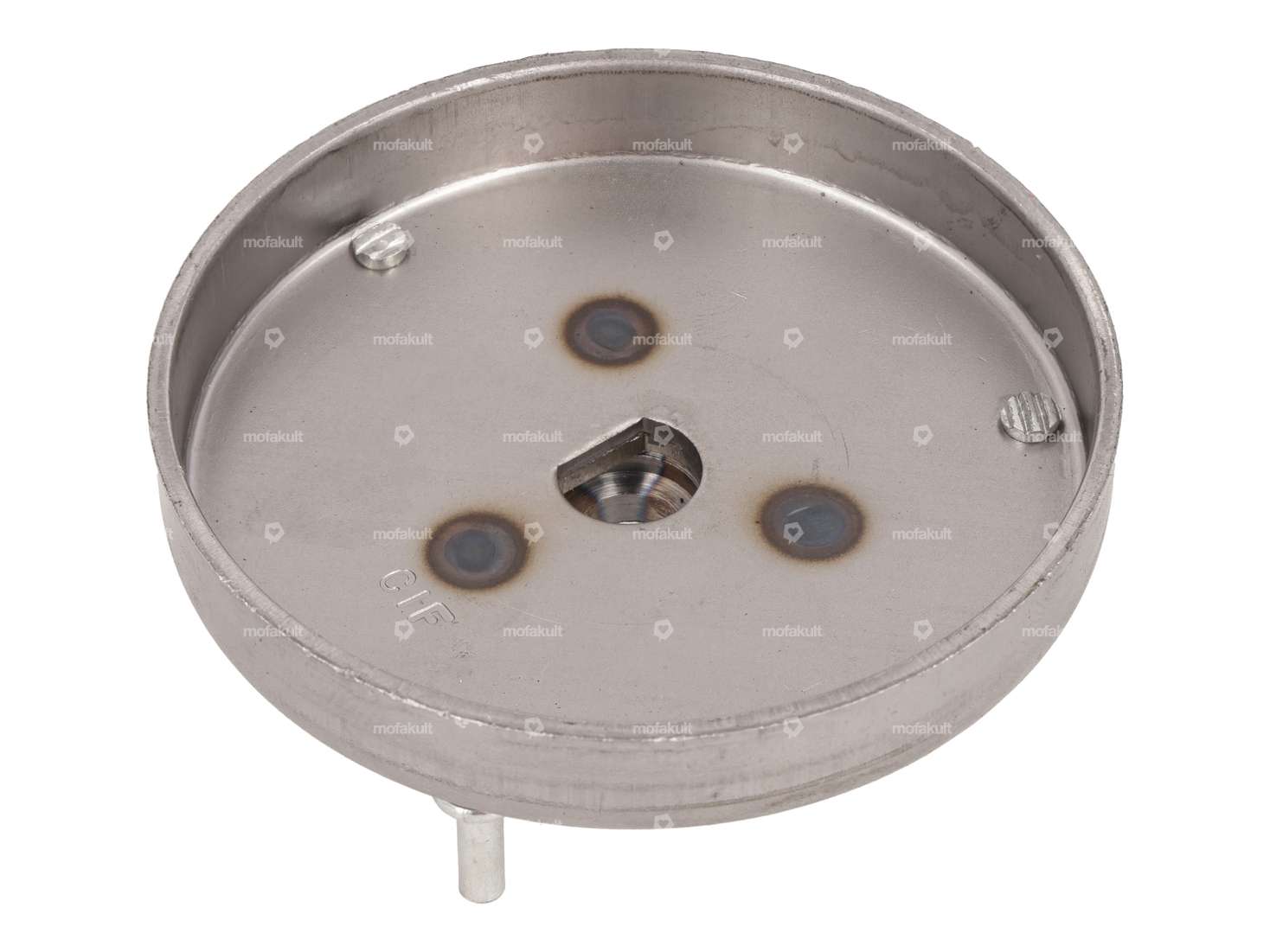

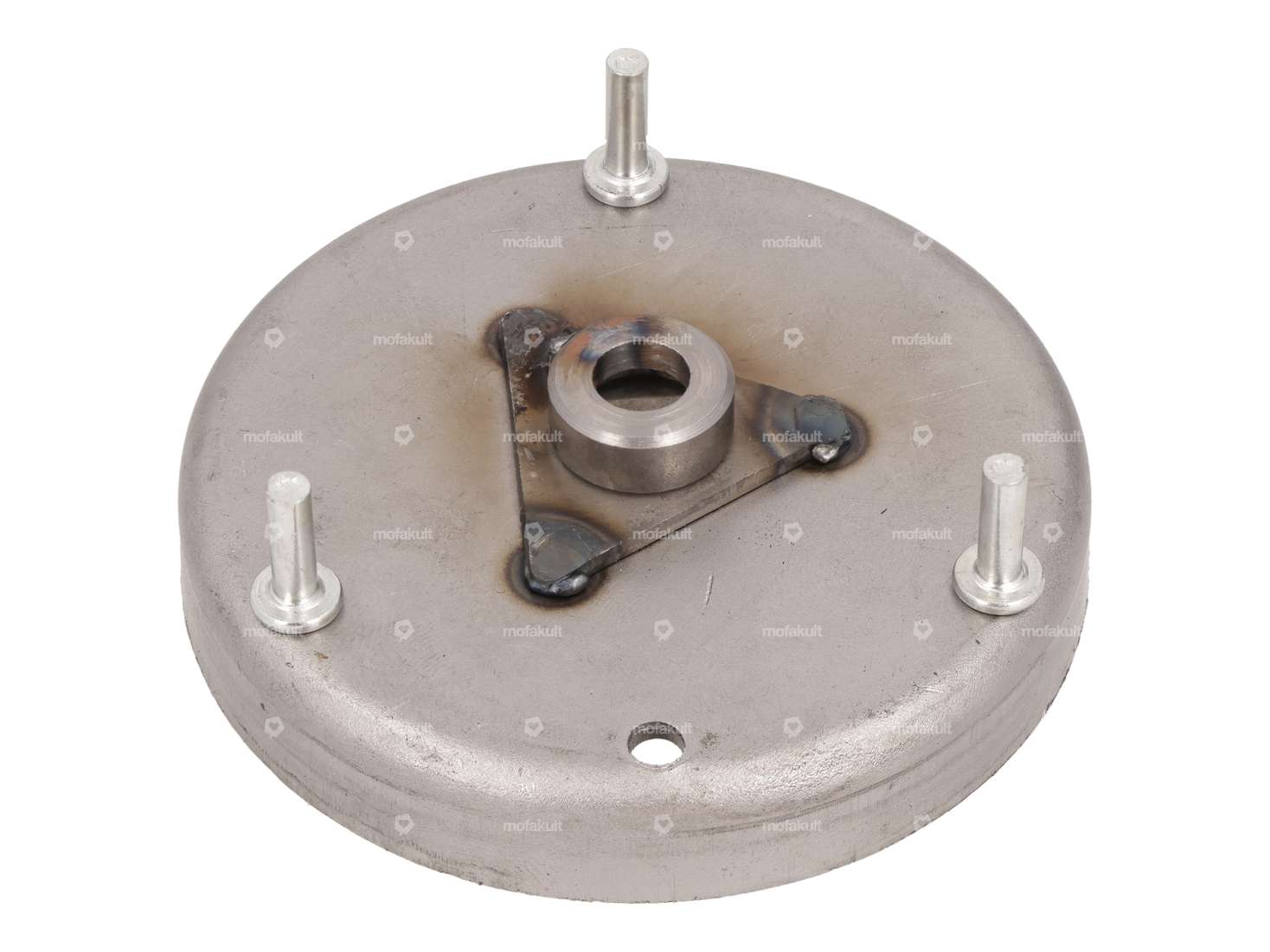

CIF starter bell mono | Piaggio Ciao, SI, Bravo, Boxer

Starter bell mono | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Italy · Material: Steel · Area of application: Standard · Ø inside: 75 mm · Ø outside: 79 mm · Thickness: 13.4 mm · Thickness: 23.6 mm · Piaggio OEM number: 114943

Clutch linings Mono | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Italy · Material: Aluminum · Material addition: Composite materials · Area of application: Standard · Number of jaws: 3 pcs · Thickness: 14 mm

CIF intermediate disk flywheel / clutch bell | Piaggio Ciao, SI, Bravo Boxer

Manufacturer: CIF · Material: Steel · Surface: galvanized (blue) · Nominal diameter inside: 12 mm · Total length: 5 mm · Ø inside: 12 mm · Ø Bundle: 16.3 mm · Ø outside: 23 mm

Clutch 56 mm (reproduction) | Piaggio, Ciao, SI, Bravo, Boxer

Manufacturer: Quenching · Material: Steel · Ø Outer pulley: 56 mm · Material addition: Composite materials · Number of springs: 2 pcs · Number of springs: 3 pcs · Ø inside: 8.45 mm · Ø inside: 12 mm · Ø outside: 90 mm · Number of jaws: 2 pcs · Number of jaws: 3 pcs · Area of application: Standard

Olympia clutch 56 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Olympia · Material: Steel · Ø Outer pulley: 56 mm · Surface: galvanized (blue) · Surface: galvanized (yellow) · Material addition: Composite materials · Number of springs: 2 pcs · Number of springs: 3 pcs · Ø outside: 90 mm · Number of jaws: 2 pcs · Number of jaws: 3 pcs · Ø inside: 8.5 mm · Ø inside: 12 mm · Area of application: Standard

CIF clutch bell Ø 56 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Ø Outer pulley: 56 mm · Material: Steel · Ø outside: 90 mm · Piaggio OEM number: 165149

GPO bulb 12V - 15W (P26s) with collar, 1-filament

Manufacturer: GPO · Test mark: none · Bulb holder: P26s · Tension: 12 V · Performance: 15 W · Color: white · Total length: 43 mm · Ø base: 26 mm · Ø Lamp head: 25 mm · LED: No

EFFE breaker without cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Area of application: Original · Area of application: Standard · Material: Steel · Cable available: No · Ø axle: 5 mm · Number of fixing points: 1 pcs · Ø mounting hole: 4.5 mm · Piaggio OEM number: 103133

EFFE Condenser with cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Capacity: 0.26 µF · Mounting type: Tab for screwing · Connection type: Cable for screwing · Height: 26 mm · Ø outside: 18 mm · Area of application: Original · Area of application: Standard · Total height: 31 mm · Ø mounting hole: 4.4 mm · Piaggio OEM number: 102939

Shim 16/22/0.5

Ø inside: 16 mm · Material: Steel · Surface: blank / oiled · Nominal diameter inside: 16 mm · Ø outside: 21 mm · Thickness: 0.5 mm

Spring washer flywheel | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Special spring · Manufacturer: Made in Italy · Material: Spring steel · Surface: blank · Ø outside: 20.5 mm · Ø inside: 14.7 mm · Area of application: Standard · Material thickness: 0.2 mm

CIF intermediate disk flywheel / clutch bell | Piaggio Ciao, SI, Bravo Boxer

Manufacturer: CIF · Material: Steel · Surface: galvanized (blue) · Nominal diameter inside: 12 mm · Total length: 5 mm · Ø inside: 12 mm · Ø Bundle: 16.3 mm · Ø outside: 23 mm

Malossi Mono clutch linings reinforced | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Aluminum · Material addition: Composite materials · Number of springs: 3 pcs · Number of jaws: 3 pcs · Thickness: 13 mm · Area of application: Tuning

Wedge 12.1x4.9x3 mm

Width: 3 mm · Height: 4.9 mm · Material: Steel · Total length: 12.5 mm

Wedge flywheel / torque converter bell Vario | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Height: 4.9 mm · Width: 3 mm · Total length: 12.1 mm

Malossi key crankshaft HPC | Piaggio Ciao, SI, Bravo, Boxer

Total length: 13.5 mm · Manufacturer: Malossi · Material: Steel · Width: 3 mm · Height: 4 mm
