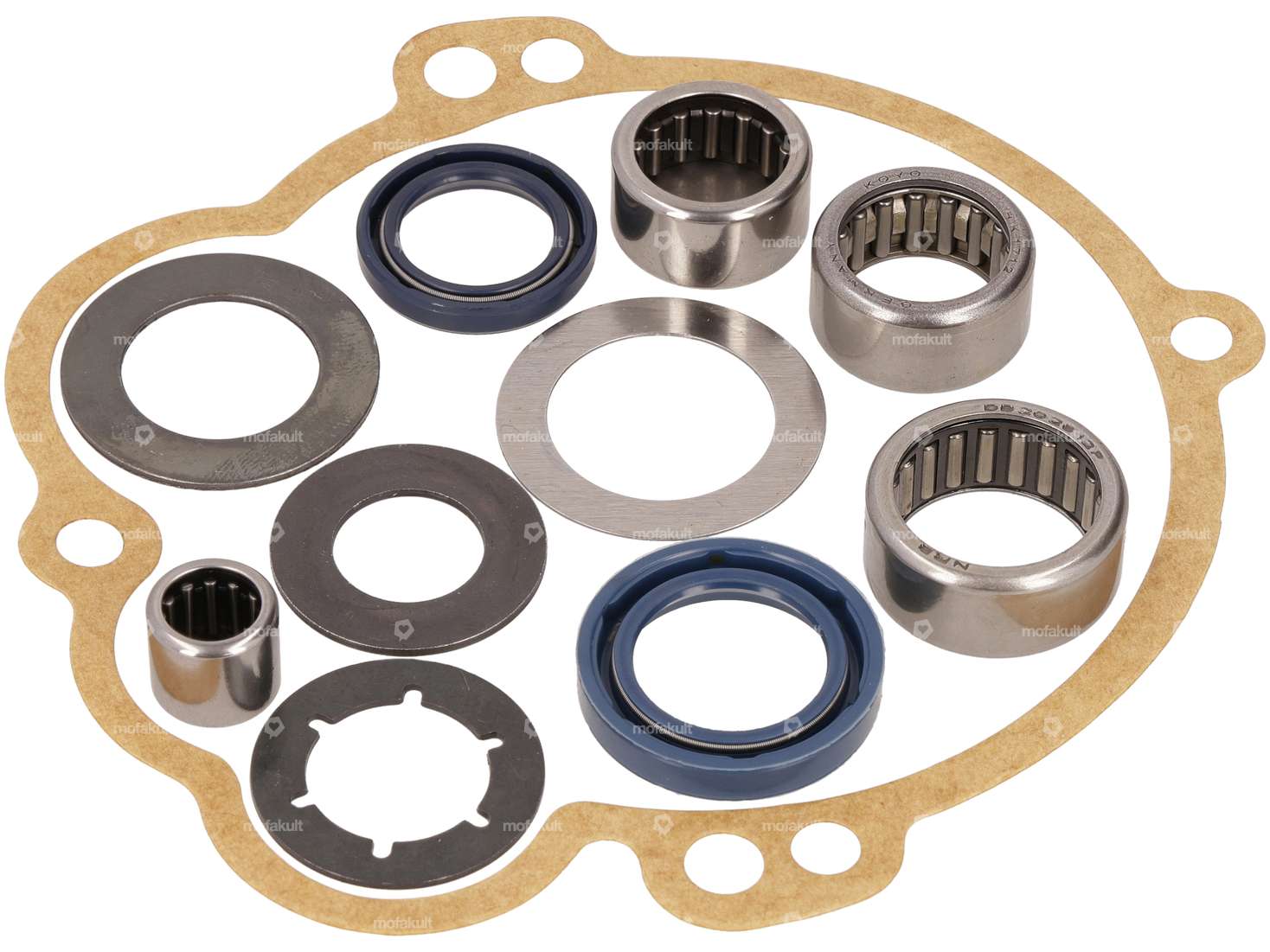

Revision set consisting of seal, bearing and oil seals (also known under the protected brand name Simmerring®) for the mono gearbox type MG2 on your Piaggio Ciao, Si, Bravo and Boxer moped/moped.
The revision set consists of:
1x gearbox seal
1x oil seal input shaft NBR 17/25/4 A
1x oil seal output shaft NBR 20/30/5 A
4x shim
4x needle bearing
Note:
Mono gearbox MG2: Type with two sprockets (with raised bearing seat for the input shaft) with the identification number 990505 (12B/12C) or 990505 (6A/14C/14D/10A/13D). The housing often also has the identifier 2, 3 or 4.
| Manufacturer | CIF |
| Gearbox type | Mono |
| Area of application | Standard |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
