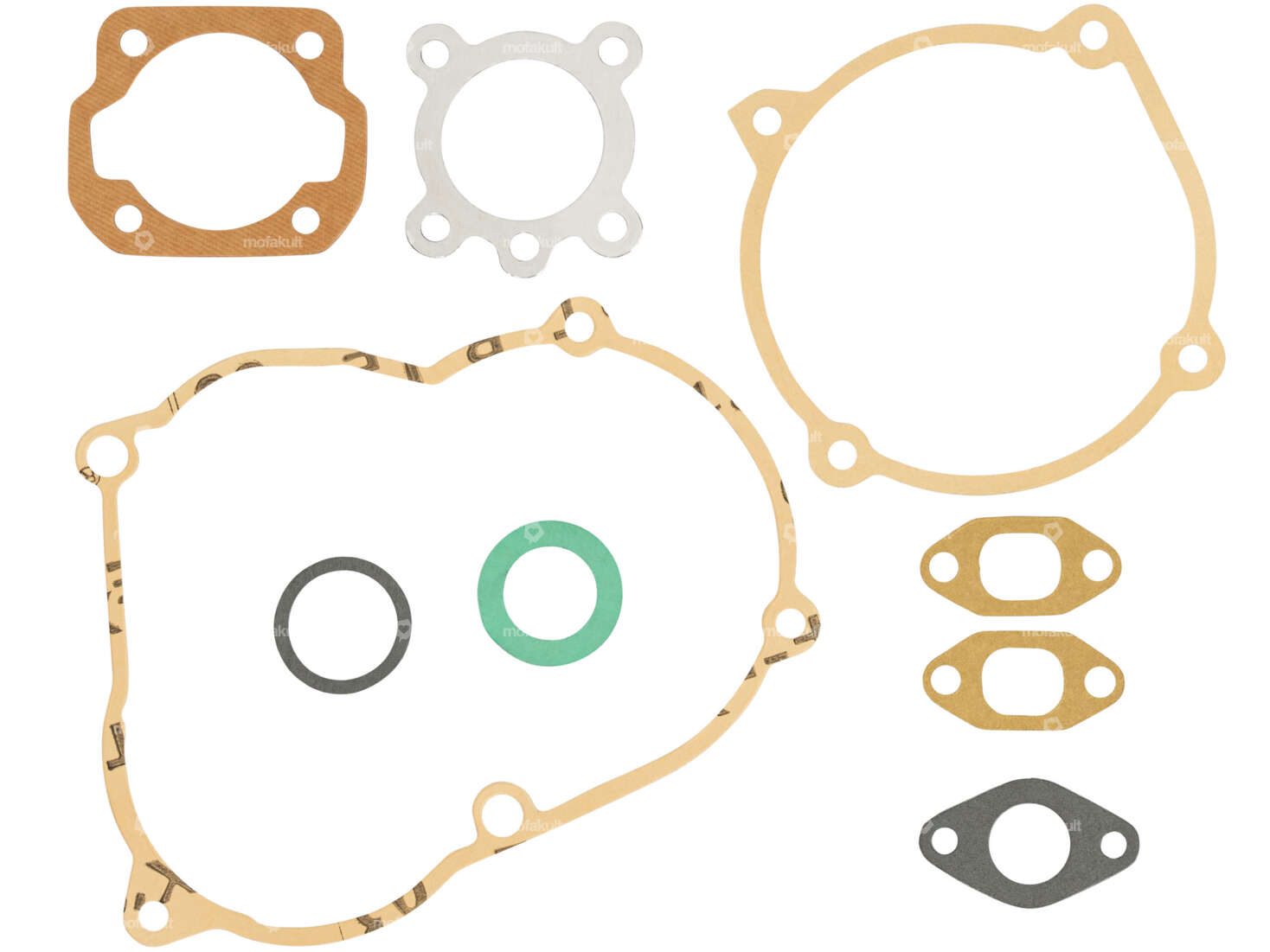

Athena gasket set engine | Puch Maxi P, K

GPO gasket set | Puch E50

Manufacturer: GPO · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Area of application: Standard · Number of components: 7 pcs · Ø outlet inside: 19.9 mm · Hole spacing inlet: 32 - 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Decompressor: Yes

Elring Curil T2 sealing compound 70 ml green (polyurethane) non-hardening

Temperature resistance (min.): -55 - 250 °C · Manufacturer: Elring · Color: green · Contents [ml]: 70 ml · Area of application: Chemistry · Gap dimension (max.): 0.2 mm

Sealing paper set 4 pcs.

Manufacturer: Made in Spain · Material: Sealing carton · Material: Sealing paper · Place of use: Universal · Thickness: 0.25 mm · Thickness: 0.4 mm · Thickness: 0.5 mm · Thickness: 1.2 mm

GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Area of application: Standard · Ø cylinder: 38 mm · Number of components: 4 pcs · Ø outlet inside: 22 mm · Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 1.8 mm · Hole spacing inlet: 32 - 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes

Dirko Dichtmasse rot (Silikon) Hochtemperatur 70 ml dauerelastisc

Manufacturer: Elring · Temperature resistance (min.): -60 - 300 °C · Area of application: Chemistry · Contents [ml]: 70 ml · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Color: red · Gap dimension (max.): 2 mm

swiing® revival gasket set cylinder | Puch Supermaxi LG1, LG2 (Cat)

Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Manufacturer: swiing® revival parts · Area of application: Standard · Ø cylinder: 38 mm · Number of components: 4 pcs · Ø outlet inside: 22 mm · Hole spacing inlet: 32 - 38 mm · Hole spacing outlet: 42 - 44 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: No

Athena gasket set cylinder 38-40 mm | Puch Maxi P, K

Manufacturer: Athena · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Ø cylinder: 38 mm · Ø cylinder: 40 mm · Number of components: 6 pcs · Thickness: 0.4 mm · Thickness: 0.7 mm · Thickness: 1.25 mm

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Component group Carburetor: Spark plug connector · Ø cable: 5 mm · Ø cable: 7 mm · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

GPO control bearing set M26x1 mm | Puch

Ø inside: 26.8 mm · Ø outside: 41 mm · Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Bearing type: Bearing ring · Thread type: MF26x1 (fine pitch thread) · Ø mounting frame: 31 mm

GPO flywheel trigger M26x1.5 / M22x1.5 | Puch, Sachs, Beta 521

Total length: 55 mm · Total length: 75 mm · Width across flats (trigger): 27 mm · Width across flats Screw: 19 mm · Manufacturer: GPO · Clamping depth: 10 mm · Area of application: (Dis)assembly tool · Material: Steel · Surface: blackened · Thread type: MF22x1.5 (fine pitch thread) · Thread type: MF26x1.5 (fine pitch thread) · Number of components: 1 pcs · Strength class: 8.8

GPO clutch trigger | Puch E50

Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: blackened

Airsal 44 mm cylinder kit 65 ccm camouflaged | Puch

Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Displacement: 65 ccm · Nominal diameter: 44 mm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Number of fixing points: 4 pcs · Inlet window: 24 / 20 x 15 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: Yes · Camouflaged: Yes

Side panels black | Puch Maxi N

Material: Plastic · Color: black · Width: 45 mm · Total length: 560 mm · Total length: 670 mm · Height: 155 mm · Height: 185 mm · Number of fixing points: 5 pcs · Ø mounting hole: 6 mm

Oil filler plug with sealing ring | Puch Maxi

Number of components: 2 pcs · Material: Steel · Surface: galvanized (blue) · Thread type: M10x1.5 (standard thread) · Drive: Slot · Thread length: 6 mm · Total length: 14.6 mm · Screw head: Lens head · Ø External head: 14 mm · Puch OEM number: 364.1.10.660.1

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents [ml]: 450 ml · Area of application: Gearbox lubrication with clutch · Gearbox type: Automatic machine · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® revival nut & washer for clutch (kickstart) | Puch E50

Height: 5 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Thread type: MF10x1 (fine pitch thread) · Width across flats SW: 19 mm · Strength class: 8

Oil seal NBR 17/40/7 AS | Puch E50

Temperature resistance (min.): -30 - 100 °C · Width: 7 mm · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Puch · Material: NBR · Surface: rubberized · Ø inside: 17 mm · Ø outside: 40 mm
