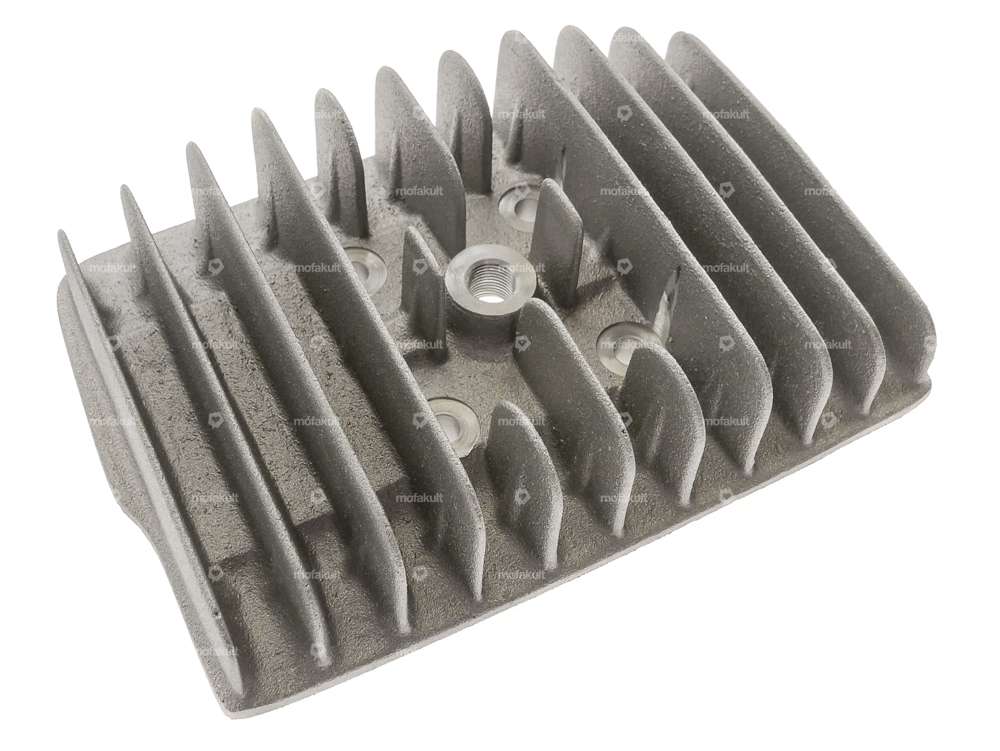

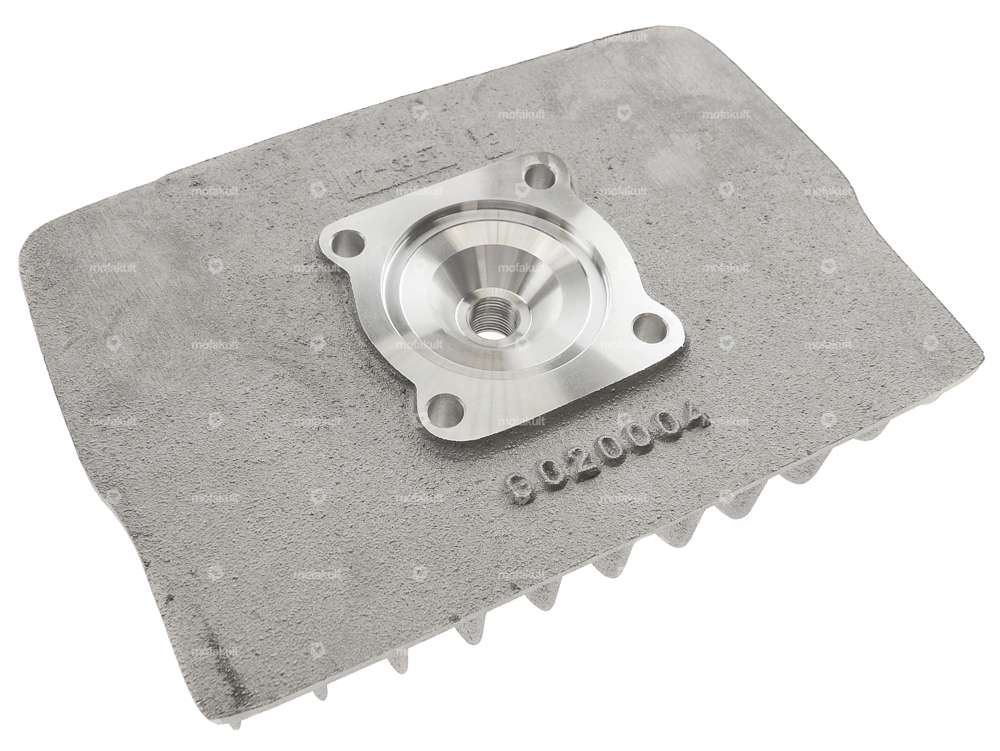

Athena 48 mm cylinder head | Sachs 503 AB, AC, ADV

Athena 48 mm cylinder kit | Sachs 503 AB, AC, ADV

Nominal diameter: 48 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Displacement: 80 ccm · Crankshaft stroke: 43 mm · Ø Outlet outside: 26 mm · Thread inlet: M6x1 (standard thread) · Ø piston pin (B): 12 mm · Outlet type: clamped · Outlet type: slanted · Number of fixing points: 4 pcs · Thread outlet: M6x1 (standard thread) · Camouflaged: No

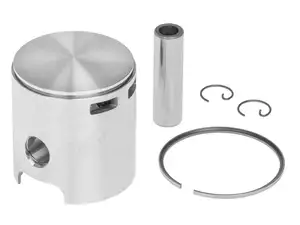

Athena piston 48 mm #A | Sachs 503 AB, AC, ADV

Nominal diameter: 48 mm · Manufacturer: Athena · Ø outside piston (A): 47.92 mm · Compression height (C): 29.3 mm · Curvature (D): 2.1 mm · Total piston height (E): 52 mm · Number of piston rings (F): 1 pcs · Piston ring mold: L-ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Weight piston kit: 114 g

Athena piston 48 mm #B | Sachs 503 AB, AC, ADV

Nominal diameter: 48 mm · Manufacturer: Athena · Ø outside piston (A): 47.93 mm · Compression height (C): 29.1 mm · Curvature (D): 2.1 mm · Total piston height (E): 52 mm · Number of piston rings (F): 1 pcs · Piston ring mold: L-ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: B · Weight piston kit: 113 g

Athena piston ring 48 x 2 mm L | Sachs 503 AB, AC, ADV

Nominal diameter: 48 mm · Manufacturer: Athena · Diameter: 48 mm · Piston ring impact: Internal fuse (IS) · Height: 2 mm

Athena exhaust adapter 26 mm cylinder kit | Sachs

Ø inside: 20 mm · Manufacturer: Athena · Material: Aluminum · Color: gray · Ø mounting hole: 7 mm · Hole spacing: 50 mm · Ø External connection: 25.7 mm

Athena exhaust adapter 24 mm cylinder kit | Sachs

Ø inside: 20 mm · Manufacturer: Athena · Material: Aluminum · Color: gray · Ø mounting hole: 7 mm · Hole spacing: 50 mm · Ø External connection: 24 mm

Athena exhaust adapter 32 mm cylinder kit | Sachs

Manufacturer: Athena · Material: Steel · Surface: galvanized (blue) · Total length: 31 mm · Ø inside: 28.5 mm · Ø mounting hole: 8.3 mm · Hole spacing: 46 - 56 mm · Ø External connection: 32 mm

Airsal 38 mm cylinder kit 50 cc camouflaged | Puch Maxi, X30

Manufacturer: Airsal · Area of application: Tuning · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 38 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 20 mm · Inlet window: 23.5 / 20 x 14.5 · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: Yes

Tank cap 30 mm bayonet lockable chrome

Material: Chrome steel (colloquially known as stainless steel) · Material: Steel · Surface: blank · Surface: galvanized (blue) · Fuel filler cap: Bayonet 30 mm · Color: Chrome · Lockable: Yes · Vented: Yes · Height: 28.6 mm · Ø External head: 55.4 mm

swiing® revival nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG

Drive: Slot · Manufacturer: swiing® revival parts · Quantity: 10 pcs · Component group Carburetor: Spraying · Material: Brass · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Total length: 8 mm · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70

"Turbo" adhesive black

Material: Polyvinyl chloride (PVC) · Place of use: Frame (+ tank) · Color: black · Width: 180 mm · Height: 40 mm · Rear side texture: Adhesive

Handlebar fork plate 30 cm curved black

Ø outside: 22 mm · Manufacturer: Made in Portugal · Material: Steel · Surface: varnished · Color: black · Clamping diameter: 22 mm · Fork plate holder length: 75 mm · Width: 610 mm · Height: 300 mm · Length handlebar ends: 145 mm · Crossbar: No · Mounting type: Fork plate

Tank cap 30 mm bayonet lockable black

Ø External head: 55.3 mm · Color: black · Material: Steel · Surface: varnished · Fuel filler cap: Bayonet 30 mm · Lockable: Yes · Vented: Yes · Height: 28.7 mm

42 mm cylinder kit | Sachs 5V

Nominal diameter: 42 mm · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Crankshaft stroke: 42 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 50 mm · Ø piston pin (B): 14 mm · Outlet type: slanted · Number of fixing points: 4 pcs · Hole spacing outlet: 50 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 55 x 55 · Camouflaged: No

GPO fuel filter connection 8 mm aluminum silver (removable)

Manufacturer: GPO · Material: Aluminum · Surface: anodized · Filter type: Sintered metal · Color: silver · Ø outside: 28 mm · demountable: Yes · Ø fuel hose connection: 8 mm · Total length: 77 mm

Polini oil measuring container 250 ml (with 7 mixing ratios)

Manufacturer: Polini · Material: Plastic · Surface: raw · Diameter: 50 mm · Color: blue · Color: transparent · Mass display: 1:100 (1%) · Mass display: 1:50 (2%) · Mass display: 1:33 (3%) · Mass display: 1:25 (4%) · Mass display: 1:20 (5%) · Mass display: 1:16 (6%) · Mass display: 1:14 (7%) · Height: 170 mm · Capacity: 250 ml · Area of application: Workshop accessories

swiing® revival bulb rear light 12V - 15W (BA15s, G18) 1-filament

Manufacturer: swiing® revival parts · Test mark: none · Color: white · Total length: 36 mm · Bulb holder: BA15s · Ø base: 15 mm · Tension: 12 V · Performance: 15 W · Ø Lamp head: 17 mm · LED: No
