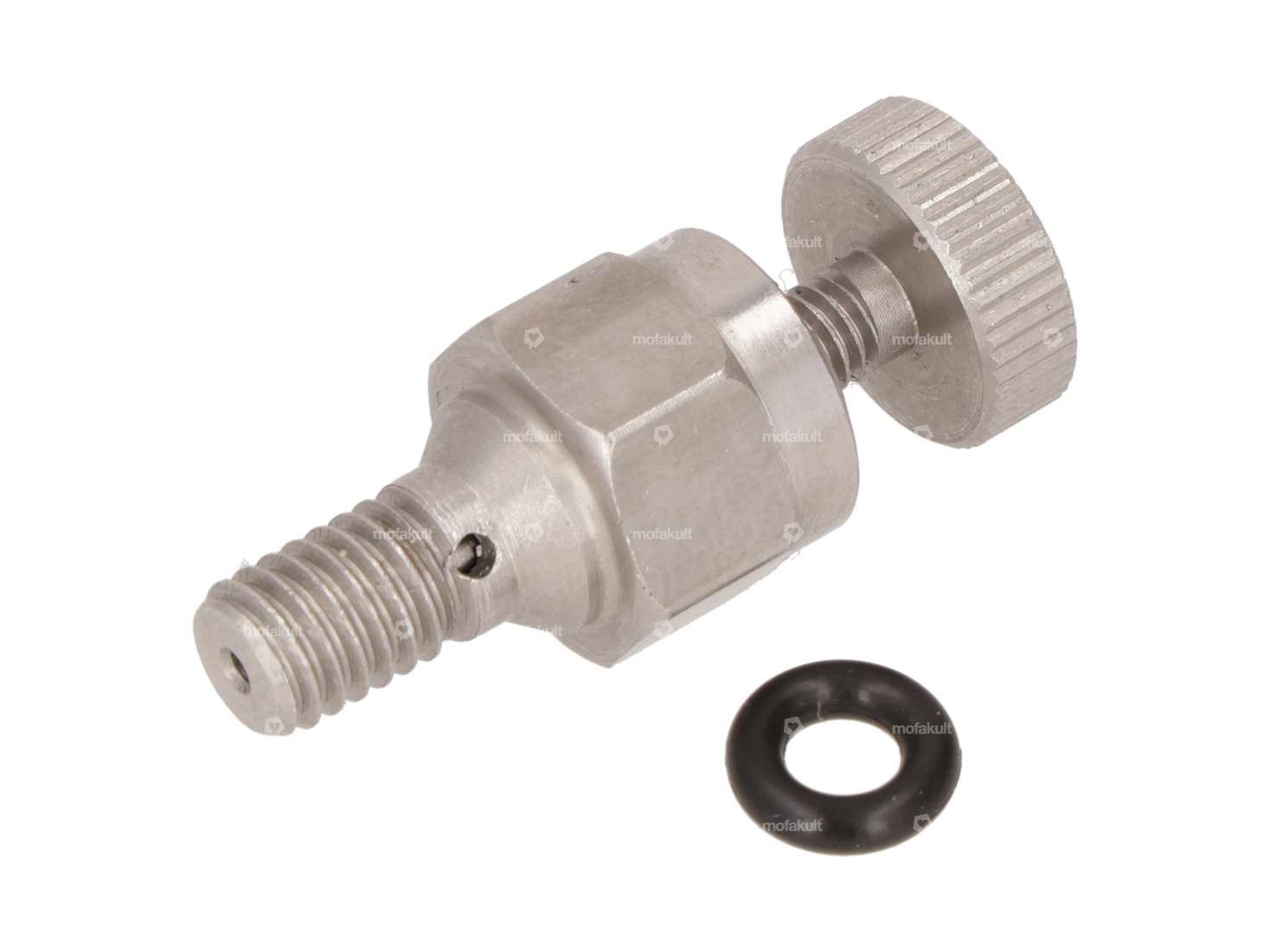

Adjusting nozzle for the 9 mm carburetor of your Solex moped, moped or bicycle with auxiliary engine.
This so-called main jet can be used for any original Solex, for small engine modifications through to tuning units.

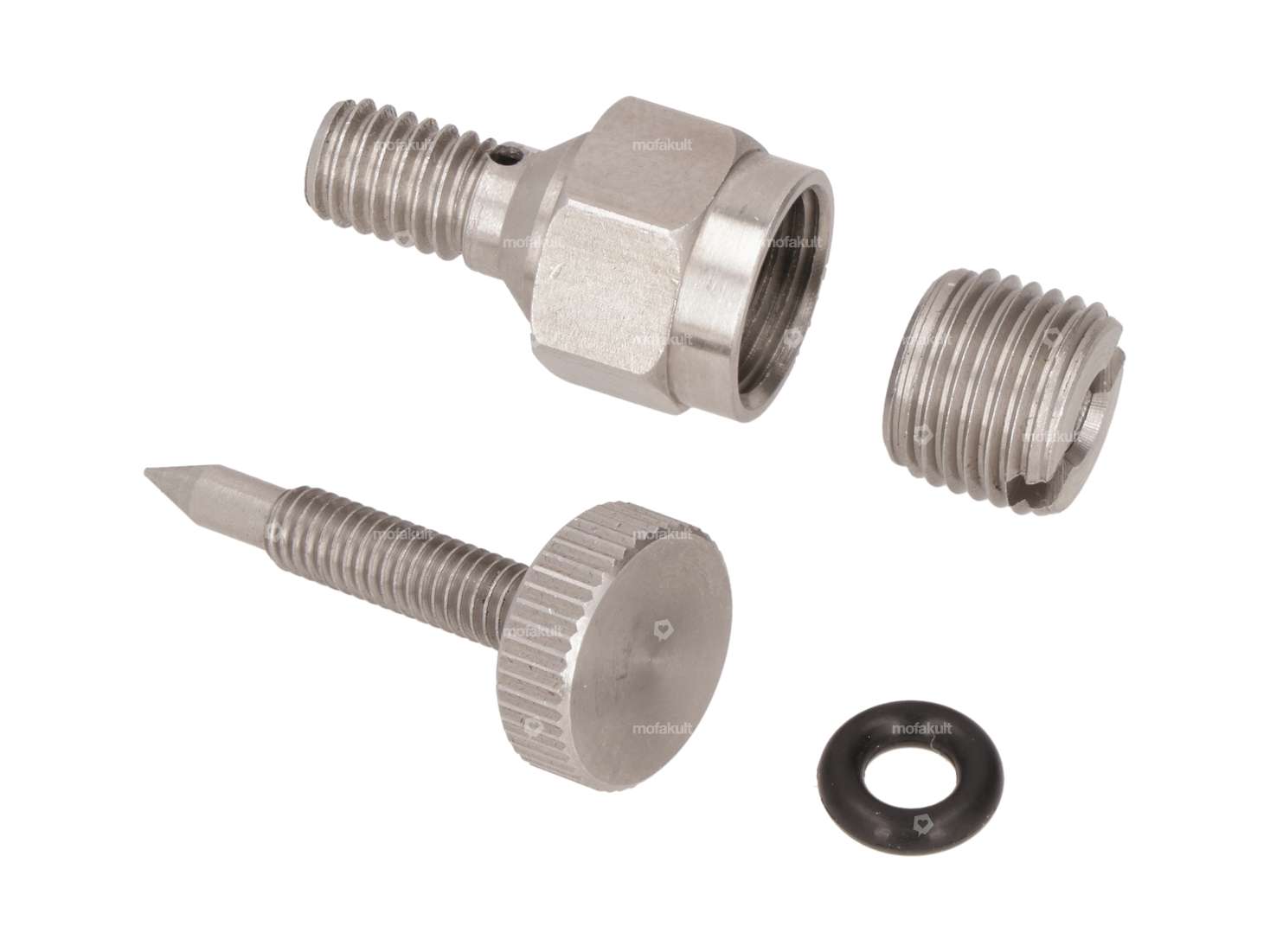

This multi-part nozzle with M6x1 thread is made of stainless steel and can be fitted to the carburetor without modification.
The adjusting screw allows you to continuously adjust the throttle sizes from 28 to 32 on the knurled knob in order to find the optimum running of the engine.
The internal O-ring prevents the adjusting screw from twisting and is made of petrol-resistant rubber. A second spare O-ring with a slightly larger diameter is included in the scope of delivery.
Note: Care should be taken during installation as it is more hollow and fragile than a conventional nozzle. It must be screwed on by hand and then lightly tightened with a wrench (just under 5°).
You can find more motor components in the accessories section.
| Material | Chrome steel (colloquially known as stainless steel) |
| Component group Carburetor | Spraying |
| Quantity | 1 pcs |
| Nozzle type | Main nozzle |
| Drive | External hexagon, Knurled screw |
| Nozzle thread | M6x1 (standard thread) |
| Total length | 31 mm |
| Nozzle size | 28, 32 |
| Width across flats | 12 mm |
| Solex |
