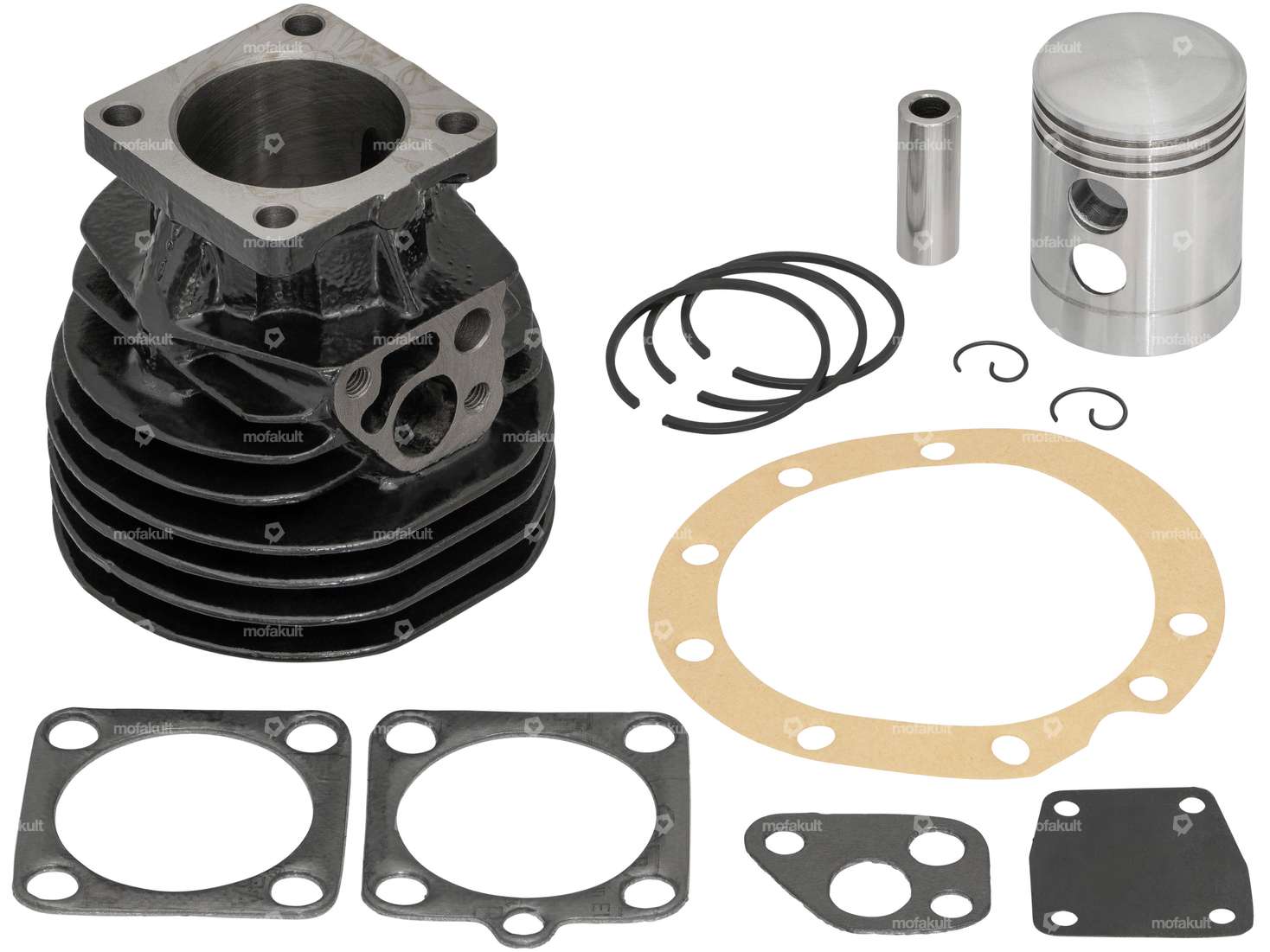

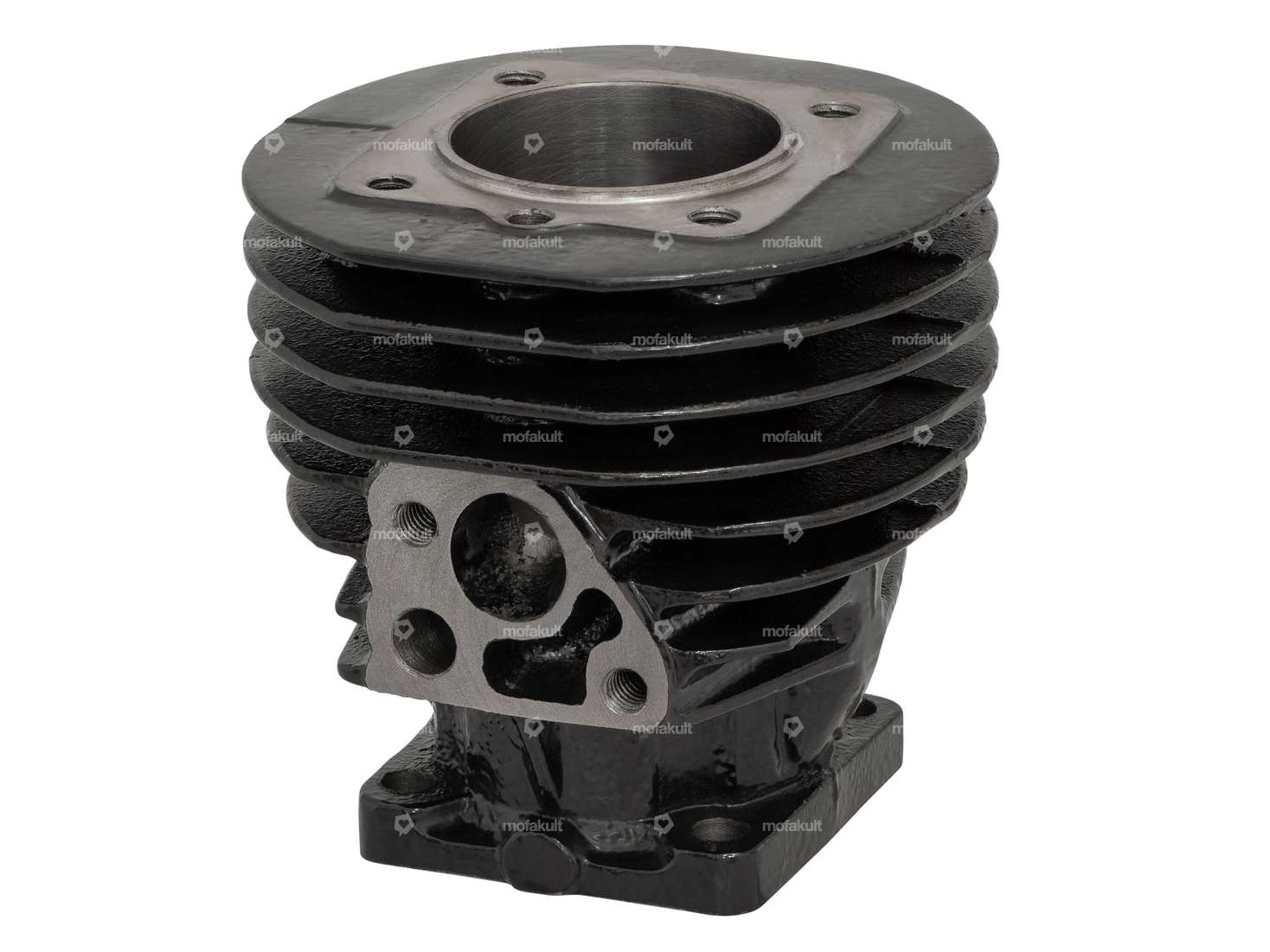

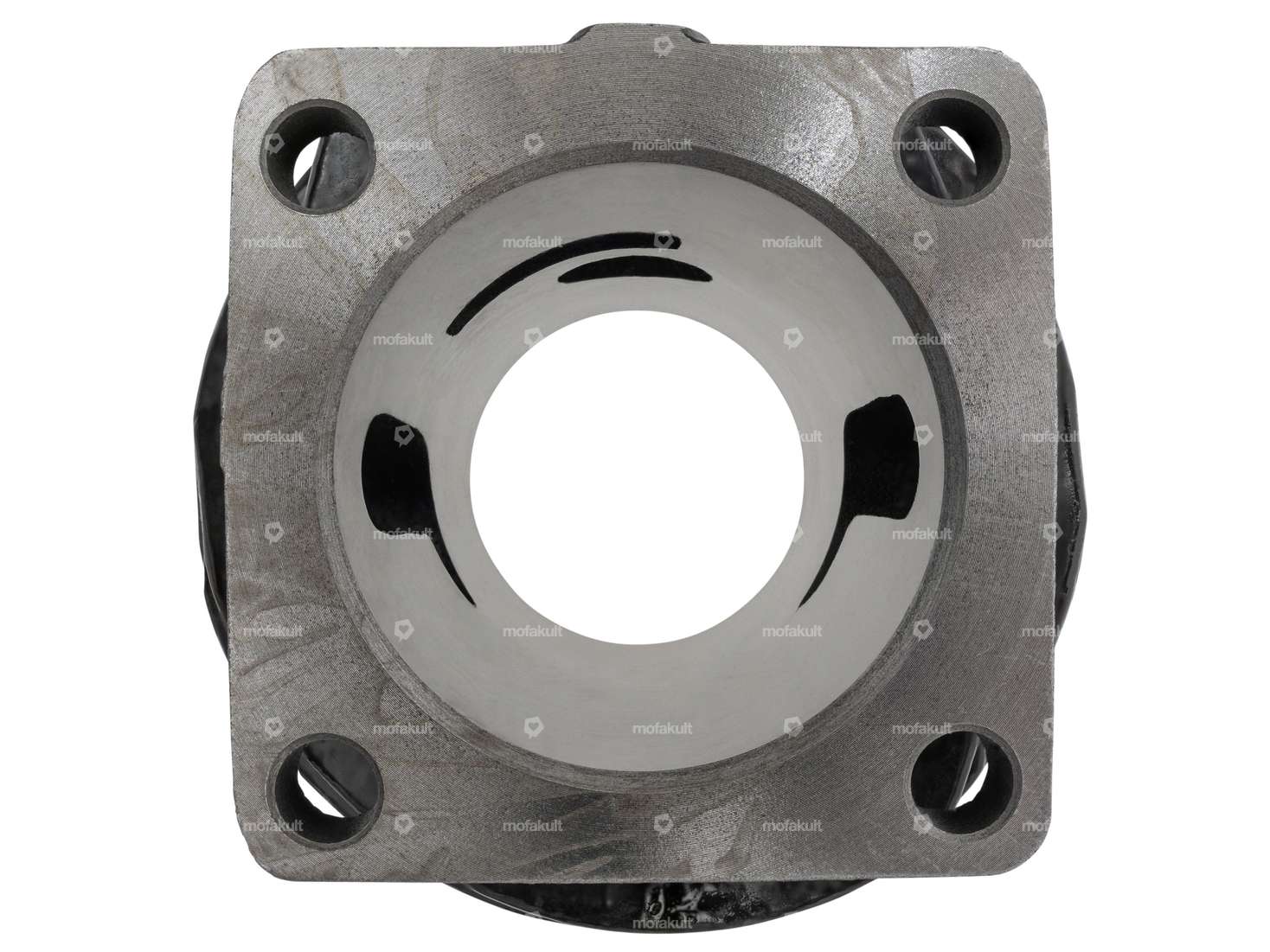

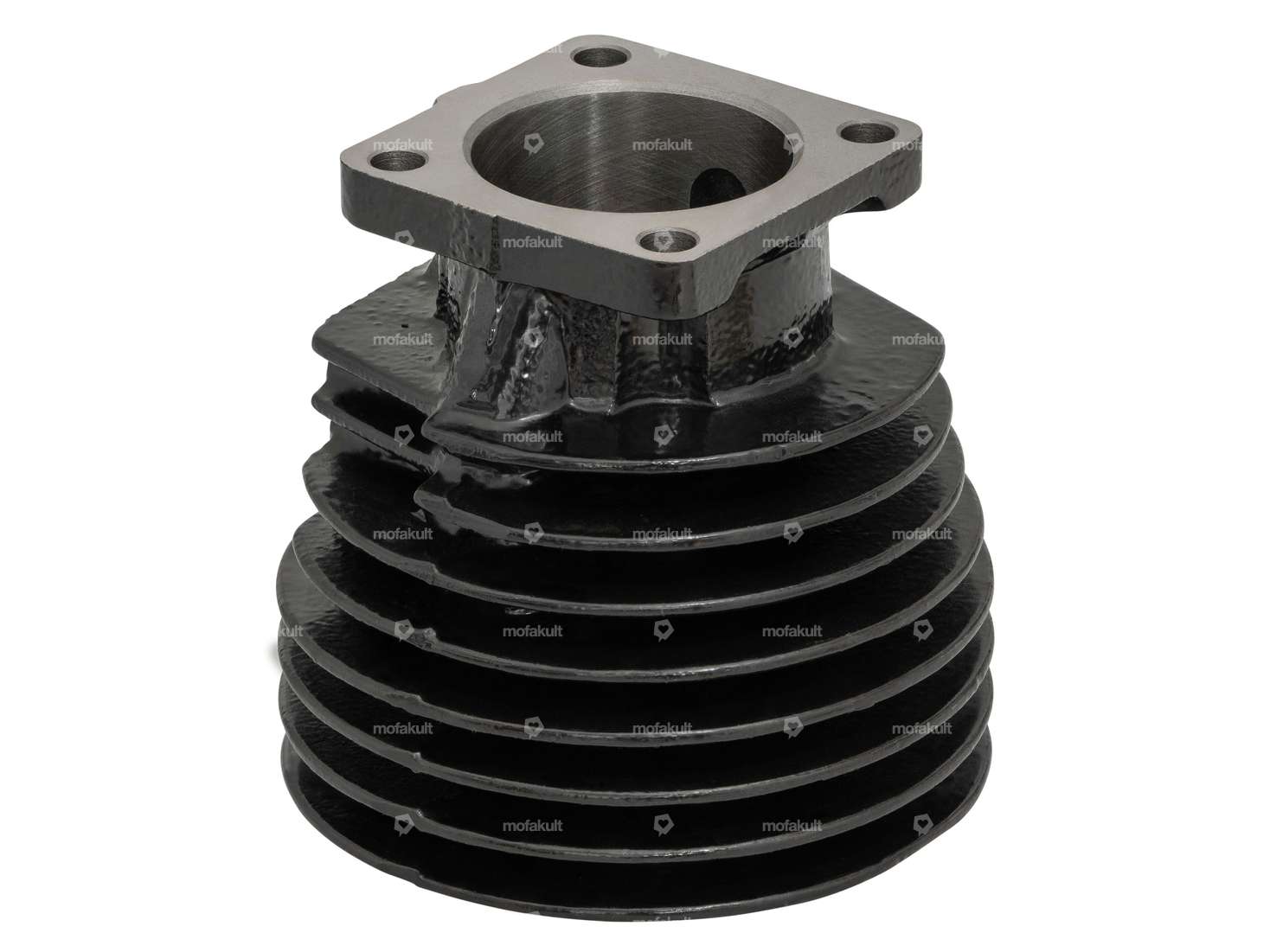

39.5 mm cylinder kit | Solex 3300 / 3800 / 5000

GPO 40 mm cylinder kit | Solex

Nominal diameter: 40 mm · Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø outlet inside: 15 mm · Ø Inlet inside: 10 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32.5 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 32.5 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 41.5 · Decompressor: Yes · Camouflaged: No · Area of application: Tuning

Athena gasket set 40 mm cylinder (1A quality) | Solex

Manufacturer: Athena · Ø cylinder: 40 mm · Number of components: 6 pcs · Area of application: Tuning

Piston 39.4 mm | Solex

Nominal diameter: 39.4 mm · Manufacturer: Made in France · Ø outside piston (A): 39.44 mm · Compression height (C): 17.9 mm · Curvature (D): 3.05 mm · Total piston height (E): 53.95 mm · Number of piston rings (F): 3 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Straight joint · Ø piston pin (B): 12 mm · Piston ring height: 1.7 mm · Piston weight: 76 g

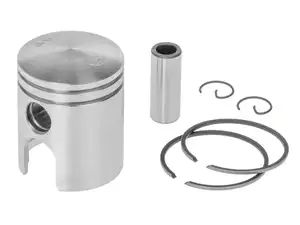

GPO piston 40 mm cylinder kit | Solex

Manufacturer: GPO · Nominal diameter: 40 mm · Ø outside piston (A): 39.97 mm · Ø piston pin (B): 12 mm · Compression height (C): 17.6 mm · Curvature (D): 3.3 mm · Total piston height (E): 50.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Piston weight: 75 g

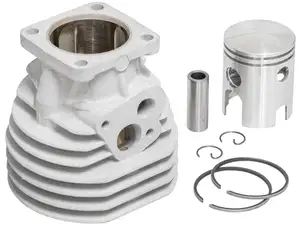

Airsal 39.5 mm cylinder kit "Special Edition" | Solex

Material: Aluminum · Surface: Nickel silicon carbide (known as Nikasil®) · Surface: sandblasted · Nominal diameter: 39.5 mm · Manufacturer: Airsal · Number of fixing points: 4 pcs · Camouflaged: No · Area of application: Tuning · Ø piston pin (B): 12 mm · Decompressor: Yes

Airsal 41 mm cylinder kit "Special Edition" | Solex

Material: Aluminum · Surface: sandblasted · Nominal diameter: 41 mm · Manufacturer: Airsal · Number of fixing points: 4 pcs · Camouflaged: No · Area of application: Tuning · Ø piston pin (B): 12 mm · Decompressor: Yes

Cylinder Ø 39.5 mm | Solex

Material: Gray cast iron · Surface: varnished · Nominal diameter: 39.5 mm · Number of fixing points: 4 pcs · Area of application: Standard · Outlet type: straight · Cooling type: Fan air cooling

Cylinder head 39.5 - 43 mm with deco valve Tuning Solex

Material: Aluminum · Manufacturer: Made in Netherlands · Number of fixing points: 4 pcs · Area of application: Tuning · Ø cylinder: 39.5 - 43 mm · Decompressor: Yes

Gasket set 45 cc cylinder | Solex 330

Manufacturer: Made in France · Number of components: 5 pcs · Ø cylinder: 41 mm

Honing brush Ø 38 - 51 mm Cylinder

Drive shank Drill chuck: round · Diameter: 38 - 51 mm · Grain size: 180 · Material: Silicon carbide · Area of application: Workshop accessories · Number of components: 1 pcs

Fastening rubber flywheel cover | Solex

Material: Rubber · Color: black

Sealing ring Solex air filter

Material: Rubber · Ø inside: 15 mm · Ø outside: 19 mm · Height: 2 mm

Filter insert carburetor Solex

Material: Plastic · Component group Carburetor: Adjusting screws, float, etc. · Color: white · Filter type: Plastic net · Mounting type: Plug connection

SoleX" chrome bell

Surface: chrome-plated · Color: Chrome · Ø External head: 55 mm

Fuel filter in tank | Solex

Filter type: Plastic net · Color: white

Air filter insert Solex black

Material: Foam · Color: black

Cylinder base gasket (1A quality) | Solex

Nominal diameter: 39.5 mm · Place of use: Cylinder base · Manufacturer: Made in Italy

Wiring harness front and rear | Solex

Switch included: No · Luster terminal: No

BOSCH WSR6F spark plug special short thread | Solex, Sachs LKH

Manufacturer: BOSCH · Candle designation: WSR6F · Candle thread type: short · Spark plug socket: SAE · Area of application: Original · Area of application: Standard · Suppressed: Yes · Thread type: MF14x1.25 (fine pitch thread) · Width across flats SW: 19 mm

Cable set black | Solex 3800

Color: black · Manufacturer: Made in France · Quantity: 3 pcs
