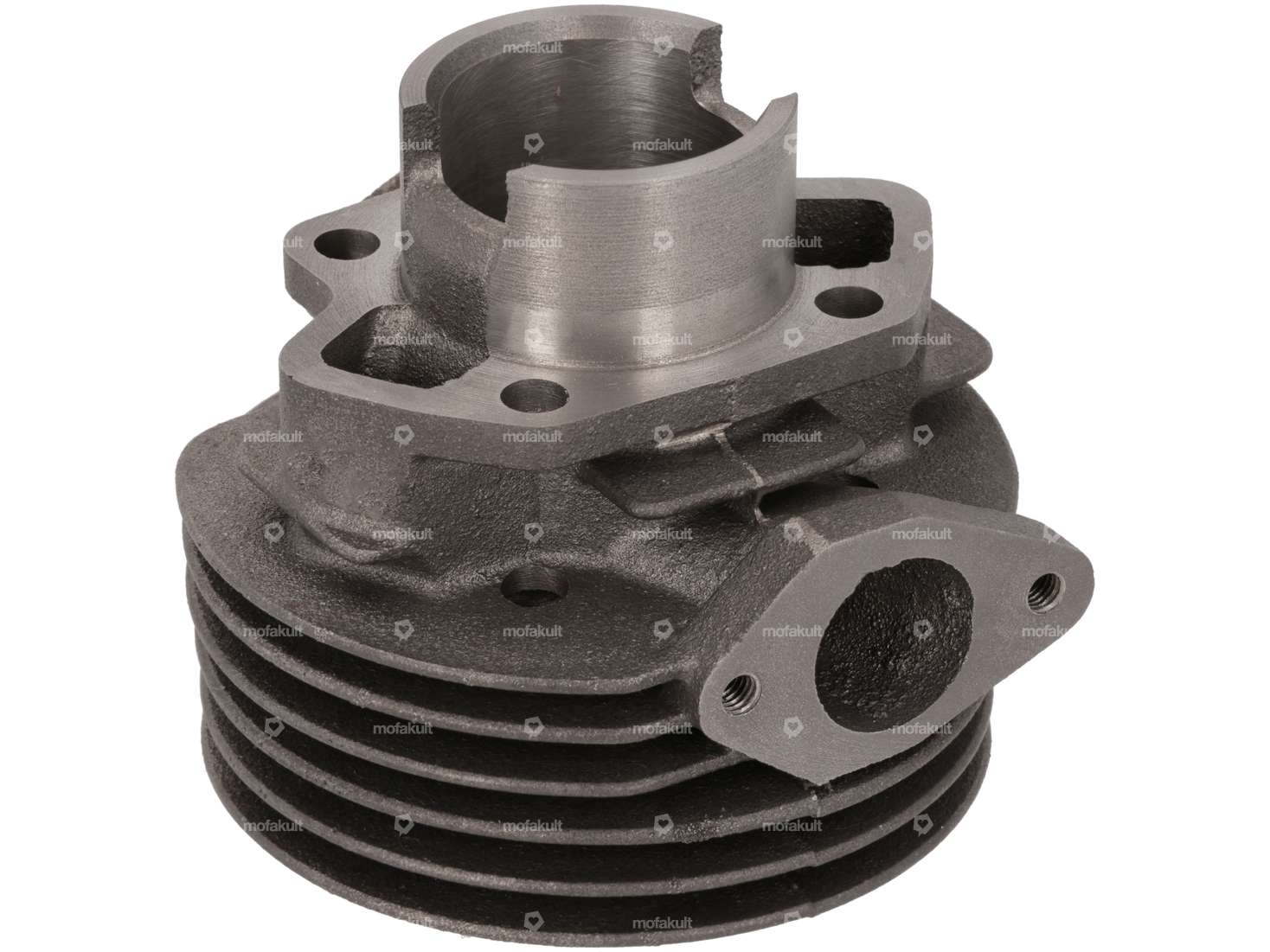

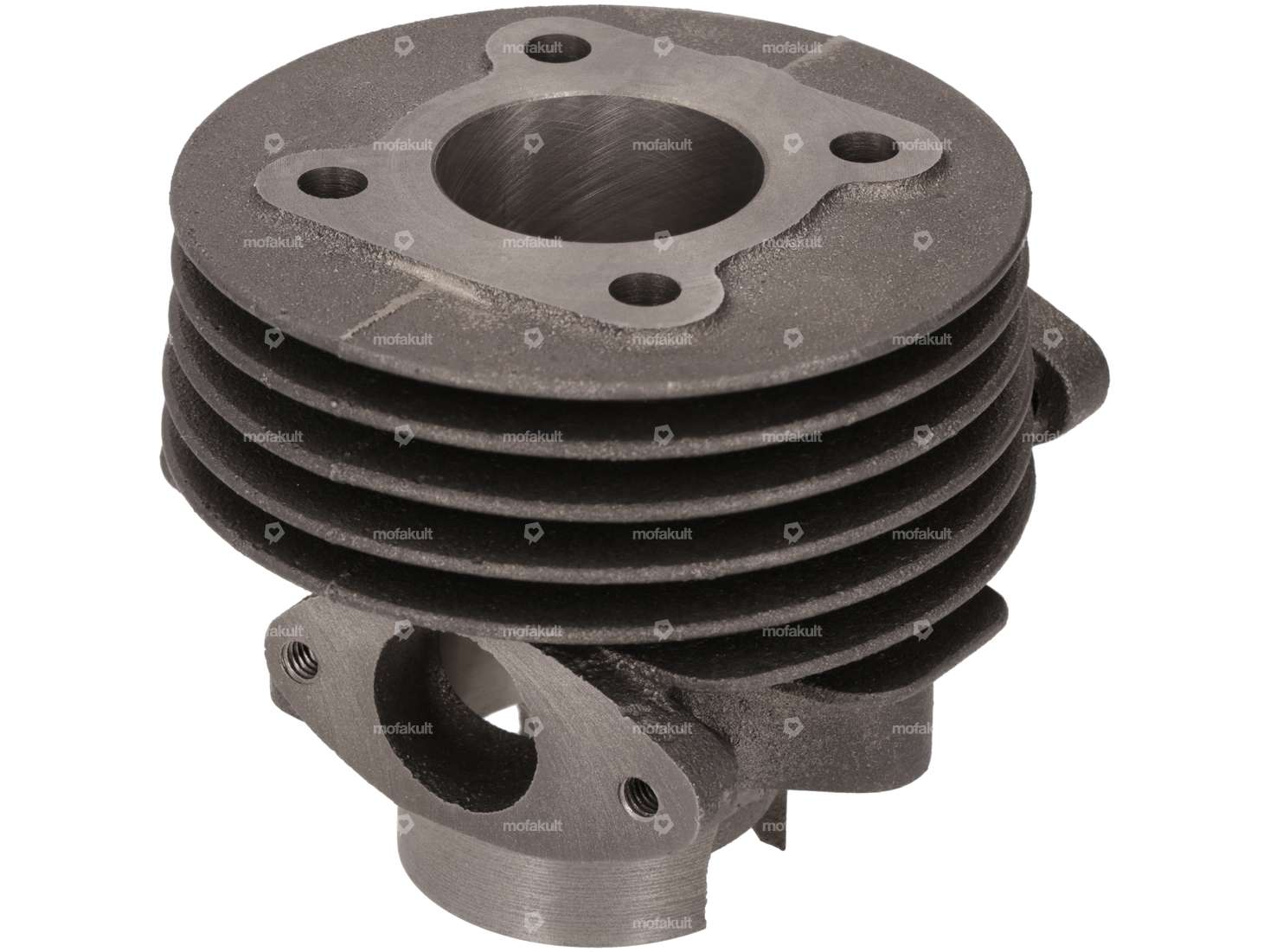

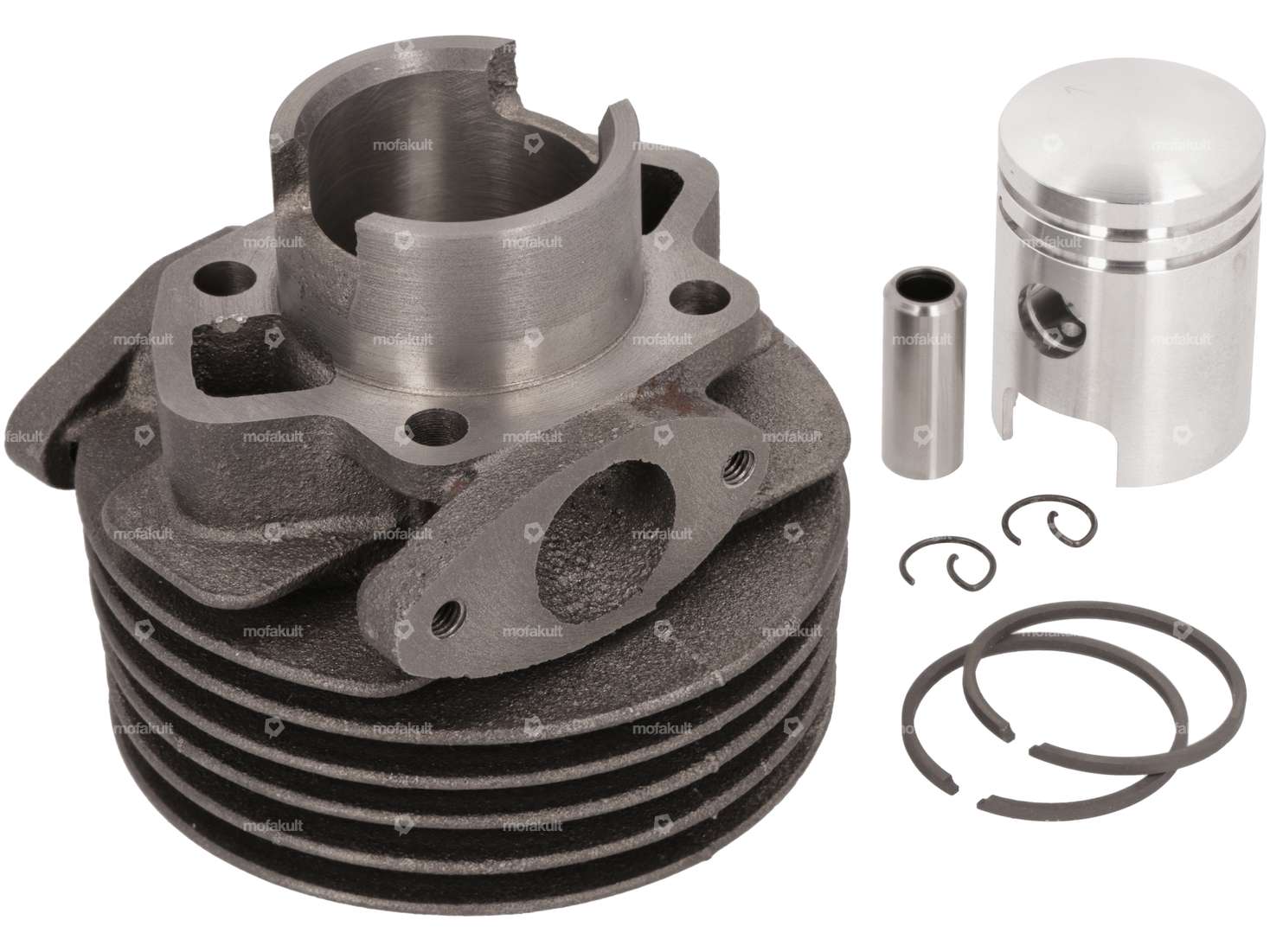

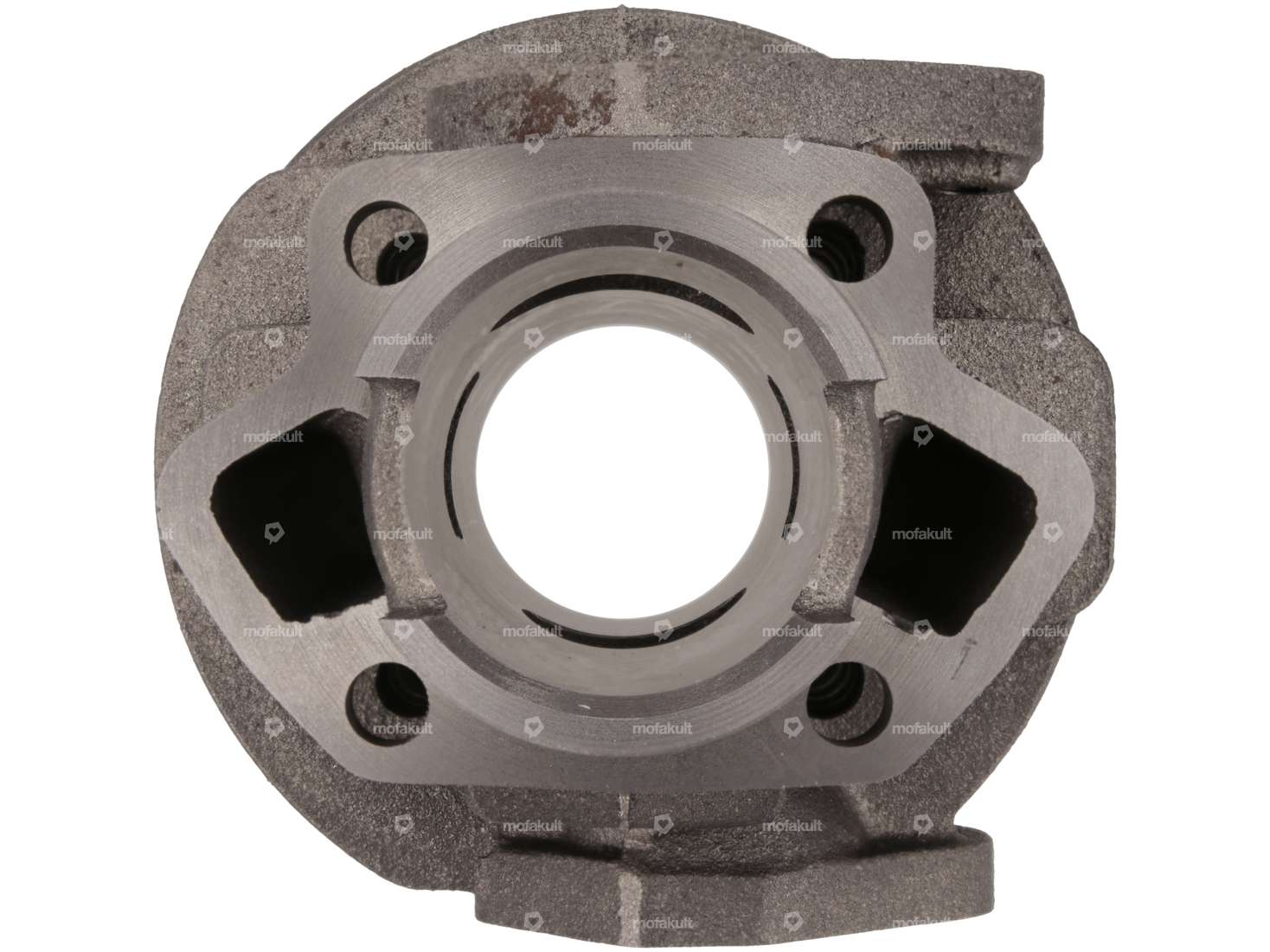

Complete cast iron cylinder set with 50 cc displacement for your Puch DS50R, DS60R, VZ50R, MC50 small motorcycle
.In addition to the piston with two piston rings, the scope of delivery also includes the pin and the necessary clips.
Note: This cast cylinder is not suitable for normal 2-, 3- or 4-speed engines and can only be used on R engines.
We recommend breaking the sharp edges and blowing out the cylinder before installation, as there may still be chip residues from production.
You can find more engine parts in the accessories section.
Details
| Material | Gray cast iron |
| Area of application | Standard |
| Displacement | 50 ccm |
| Ø piston pin (B) | 12 mm |
| Ø cylinder neck | 48 mm |
| Nominal diameter | 43 mm |
| Ø Inlet inside | 22 mm |
| Inlet window | 44 x 44 |
| Ø outlet inside | 22 mm |
| Thread inlet | M6x1 (standard thread) |
| Hole spacing outlet | 49 mm |
| Hole spacing inlet | 44 mm |
| Outlet type | straight |
| Thread outlet | M6x1 (standard thread) |
Suitable for the following models
| Puch | 3-speed VSD, DS, VZ, MC |
